Medium Power Bipolar Transistors | Status :
Obsoleted
2N2222
Last Time Ship Date:11-01-2012
EOL Notice

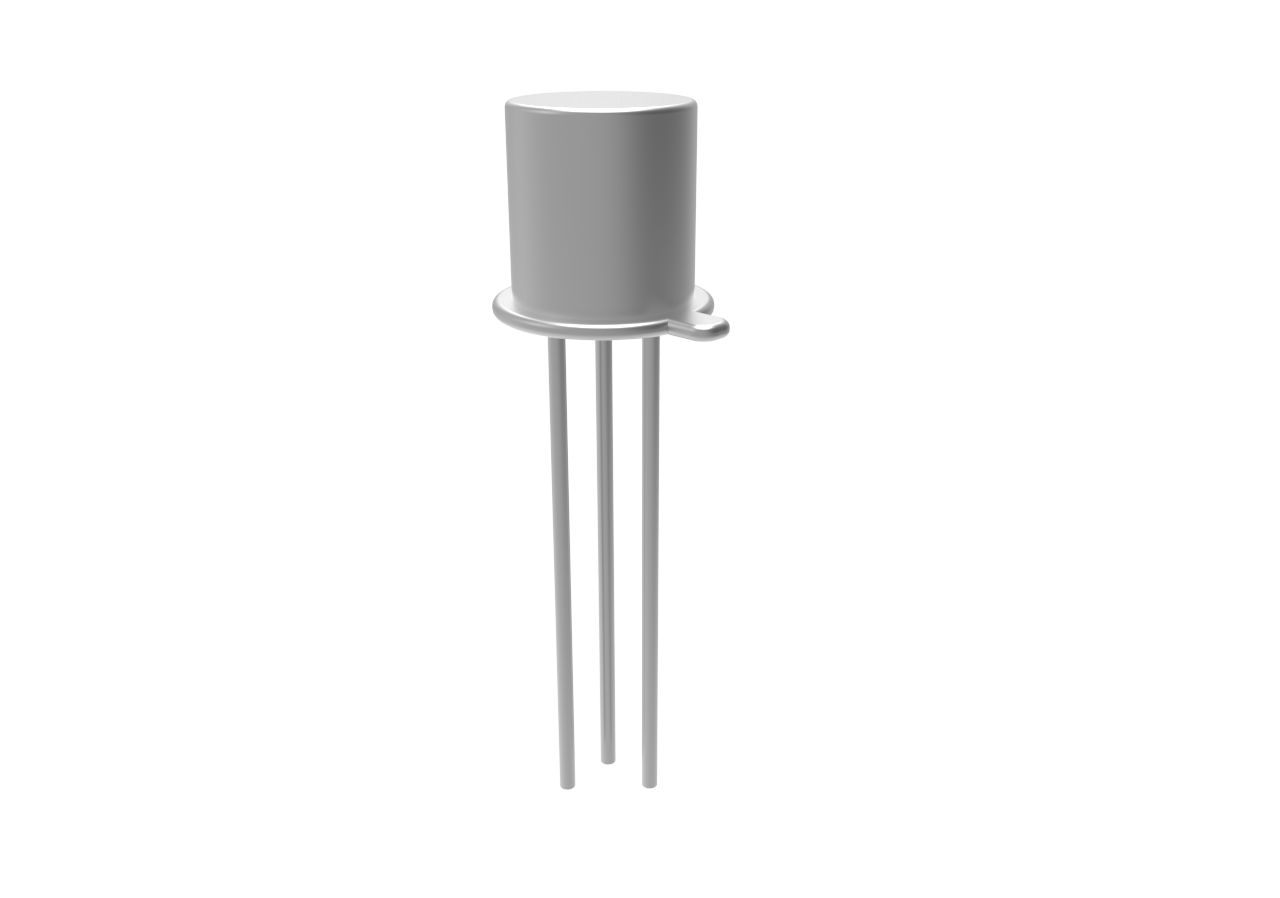

- Package Type:TO-18
- Packing Info:Bulk : 100pcs/BOX
- Category:Medium Power Bipolar Transistors
Product Detail
| Part Number | Number of Functions | Polarity | PD (W) | VCEO(V) | IC (A) | HFE [min] | HFE [max] | VCE(sat) [max] (V) |
fT(MHz) | Tj [max] (°C) |
|---|---|---|---|---|---|---|---|---|---|---|
| 2N2222 | Single | NPN | 0.5 | 30 | 0.8 | 30 | 0.4 | 250 | 150 |
| Part Number 2N2222 | Number of Functions Single | Polarity NPN | PD (W) 0.5 | VCEO(V) 30 | IC (A) 0.8 | HFE [min] 30 | HFE [max] |
VCE(sat) [max] (V) 0.4 |
fT(MHz) 250 | Tj [max] (°C) 150 |
Packing Information
| Part Number | Package Type | Packing Specification | Component Weight (g) |
|---|---|---|---|
| 2N2222 | TO-18 |
TO-18
|
0.3174 |
Environmental Information
Download
| MTBF | FIT |
|---|---|
| 27479.27 | 4.2 |
ECN/PCN
| ECN/PCN No# | Title | Issued Date | |
|---|---|---|---|
| 070103 | Pb(Lead) Free Plating Conversion |
|
07/01/2003 |
