SiC Schottky Barrier Diodes (SBDs) | Status : Pre-Release

SICWT30120G6M

Check Stock Add To Cart
Datasheet ECAD Model Reliability Data

Product Detail

Part Number Number of Functions Average
Forward
Current
IF(AV)(A)		 Peak Repetitive
Reverse
Voltage
VRRM (V)		 Forward
Voltage
VF
(V) [max]@IF(A)		 Junction
Temperature
Tj [max] (°C)		 At Rated Forward
Current
IF (A)		 Reverse Voltage
Leakage
Current
IR (uA)  [max] @ VR		 Maximum DC
Blocking
Voltage
VR (V)		 Peak Forward
Surge
Current
IFSM (A)
SICWT30120G6M Single 30 1200 1.65 175 30 25 1200 290
Part Number SICWT30120G6M Number of Functions Single Average
Forward
Current
IF(AV)(A)  30 		Peak Repetitive
Reverse
Voltage
VRRM (V)  1200 		Forward
Voltage
VF
(V) [max]@IF(A)  1.65 		Junction
Temperature
Tj [max] (°C)  175 		At Rated Forward
Current
IF (A)  30 		Reverse Voltage
Leakage
Current
IR (uA)  [max] @ VR  25 		Maximum DC
Blocking
Voltage
VR (V)  1200 		Peak Forward
Surge
Current
IFSM (A)  290

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code

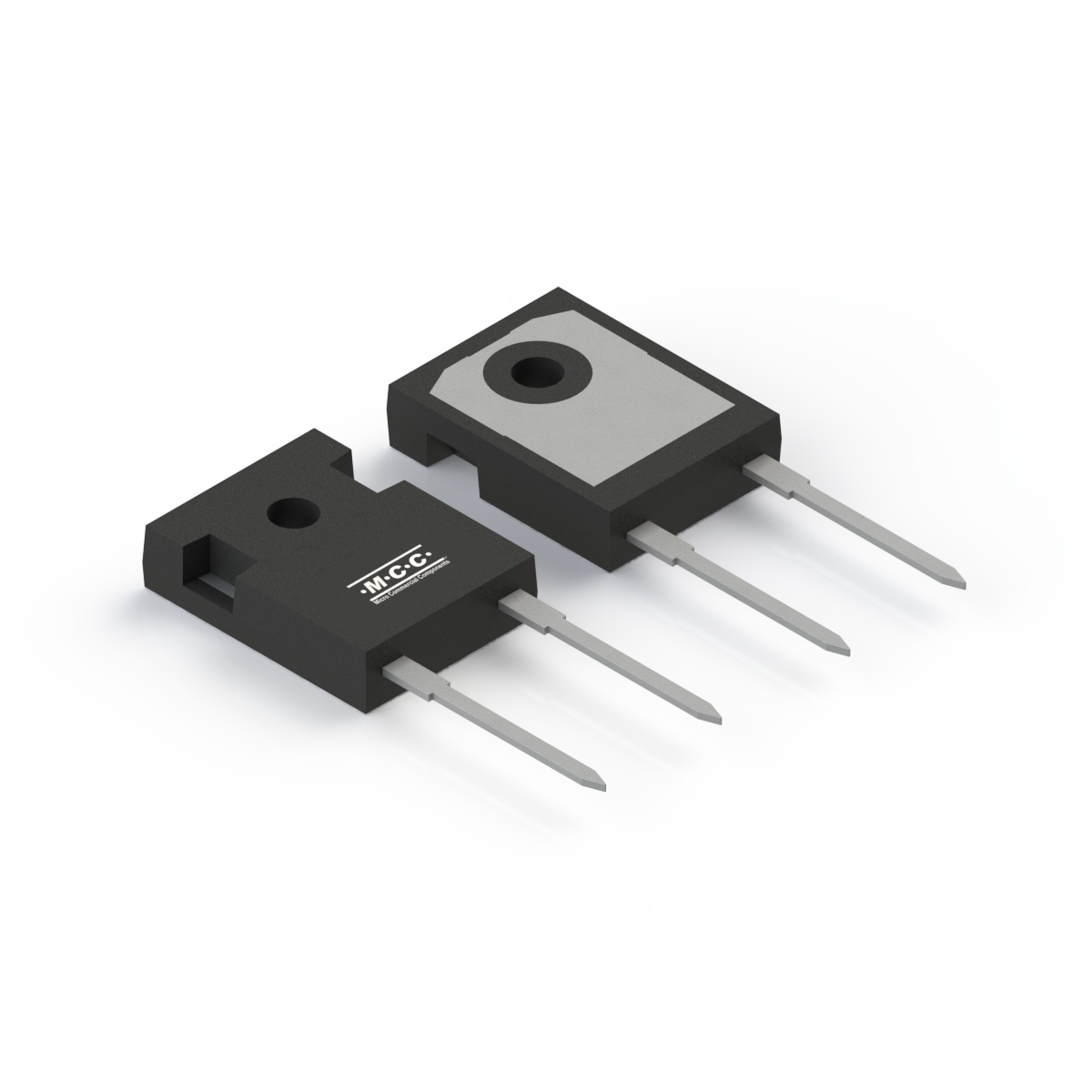

SICWT30120G6M TO-247AD TO-247AD 4.0500 WT30120G6M

Environmental Information link icon

Reliability Report Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Environmental Compliance Download
Tin Whisker Test Report MSL MTBF FIT
Tin Whisker Test Report N/A 0.00 0.0
