SiC Schottky Barrier Diodes (SBDs) | Status : Preferred

SICPT25170P

Check Stock Add To Cart
Datasheet ECAD Model Reliability Data

Product Detail

Part Number Number of Functions Average
Forward
Current
IF(AV)(A)		 Peak Repetitive
Reverse
Voltage
VRRM (V)		 Forward
Voltage
VF
(V) [max]@IF(A)		 Junction
Temperature
Tj [max] (°C)		 At Rated Forward
Current
IF (A)		 Reverse Voltage
Leakage
Current
IR (uA)  [max] @ VR		 Maximum DC
Blocking
Voltage
VR (V)		 Peak Forward
Surge
Current
IFSM (A)
SICPT25170P Single 25 1700 1.8 175 25 100 1700 191
Part Number SICPT25170P Number of Functions Single Average
Forward
Current
IF(AV)(A)  25 		Peak Repetitive
Reverse
Voltage
VRRM (V)  1700 		Forward
Voltage
VF
(V) [max]@IF(A)  1.8 		Junction
Temperature
Tj [max] (°C)  175 		At Rated Forward
Current
IF (A)  25 		Reverse Voltage
Leakage
Current
IR (uA)  [max] @ VR  100 		Maximum DC
Blocking
Voltage
VR (V)  1700 		Peak Forward
Surge
Current
IFSM (A)  191

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code

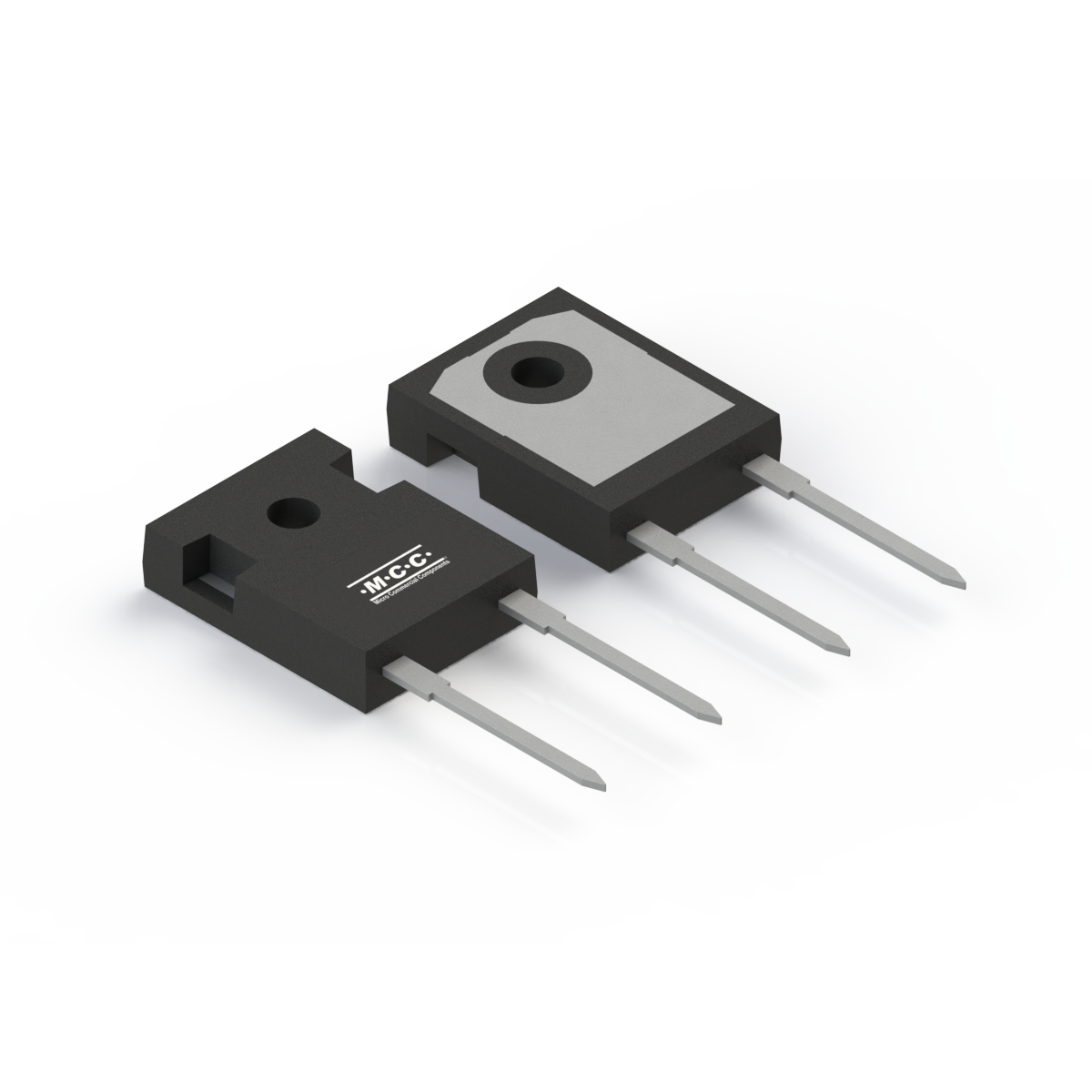

SICPT25170P TO-247AD TO-247AD 4.0500 SICPT25170P

Environmental Information link icon

Reliability Report Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Environmental Compliance Download
Tin Whisker Test Report MSL MTBF FIT
Tin Whisker Test Report N/A 0.00 0.0
