SiC Schottky Barrier Diodes (SBDs) | Status : Pre-Release

SICF15120G5M

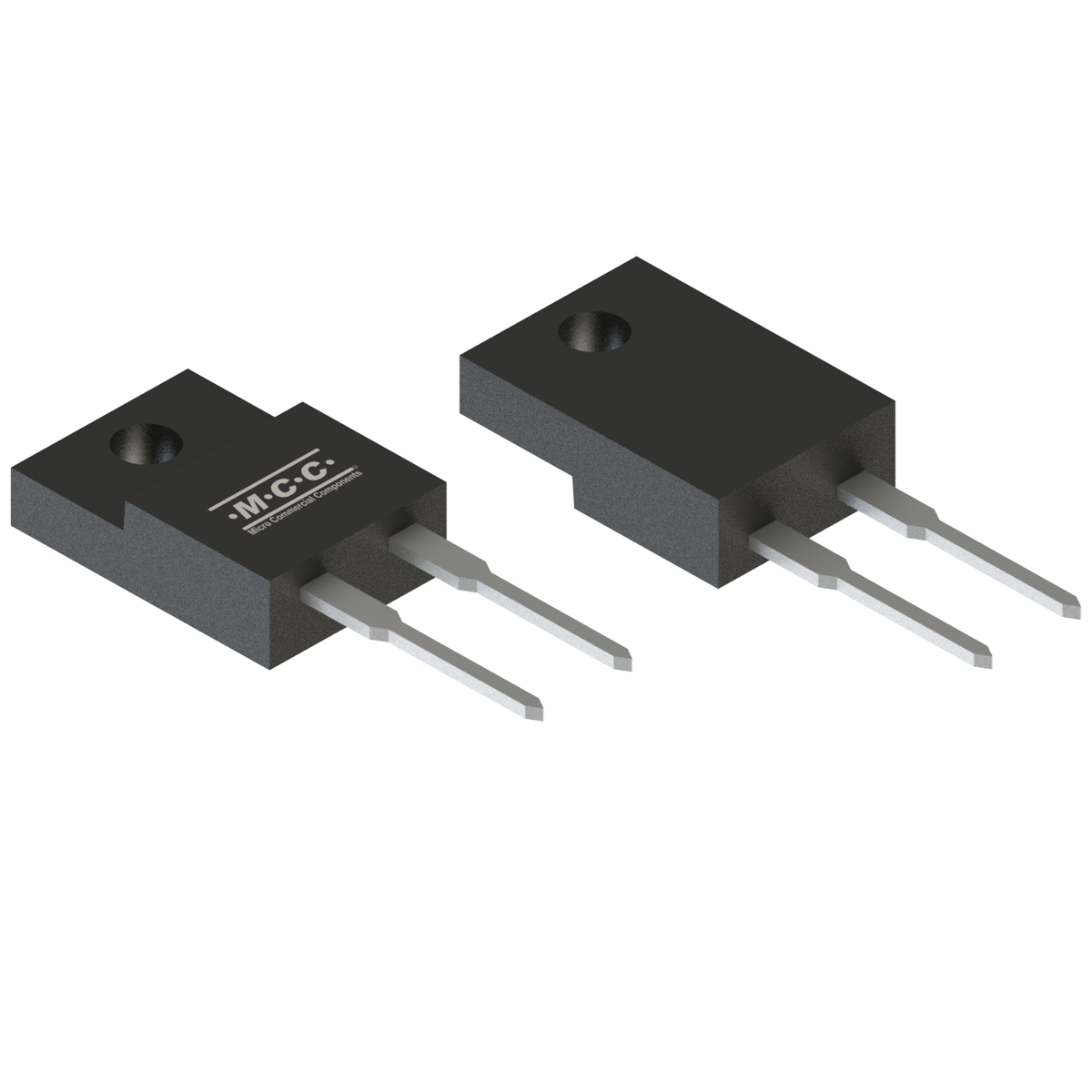

Package Type:ITO-220AC
Packing Info:Bulk: 50pcs/Tube, 1Kpcs/Box, 5Kpcs/Carton; Bulk: 50pcs/Tube, 1Kpcs/Box, 5Kpcs/Carton;
Category:SiC Schottky Barrier Diodes (SBDs)

Part Number	Number of Functions	Average Forward Current I_F(AV)(A)	Peak Repetitive Reverse Voltage V_RRM (V)	Forward Voltage V_F (V) [max]@I_F(A)	Junction Temperature Tj [max] (°C)	At Rated Forward Current I_F (A)	Reverse Voltage Leakage Current I_R (uA) [max] @ V_R	Maximum DC Blocking Voltage V_R (V)	Peak Forward Surge Current I_FSM (A)
SICF15120G5M	Single	15	1200	1.6	175	15	25	1200	150

Part Number SICF15120G5M

Number of Functions Single

Average
Forward
Current
I_F(AV)(A) 15

Peak Repetitive
Reverse
Voltage
V_RRM (V) 1200

Forward
Voltage
V_F
(V) [max]@I_F(A) 1.6

Junction
Temperature
Tj [max] (°C) 175

At Rated Forward
Current
I_F (A) 15

Reverse Voltage
Leakage
Current
I_R (uA) [max] @ V_R 25

Maximum DC
Blocking
Voltage
V_R (V) 1200

Peak Forward
Surge
Current
I_FSM (A) 150

Part Number	Package Type	Packing Specification	Component Weight (g)	Marking Code
SICF15120G5M	ITO-220AC	ITO-220AC	1.3930	F15120G5M

Reliability Report	Soldering Profile	Environmental Compliance
Download	Download	Download

Tin Whisker Test Report	MSL	MTBF	FIT
	N/A	0.00	0.0
