SiC Schottky Barrier Diodes (SBDs) | Status : Active

SICF02120Y

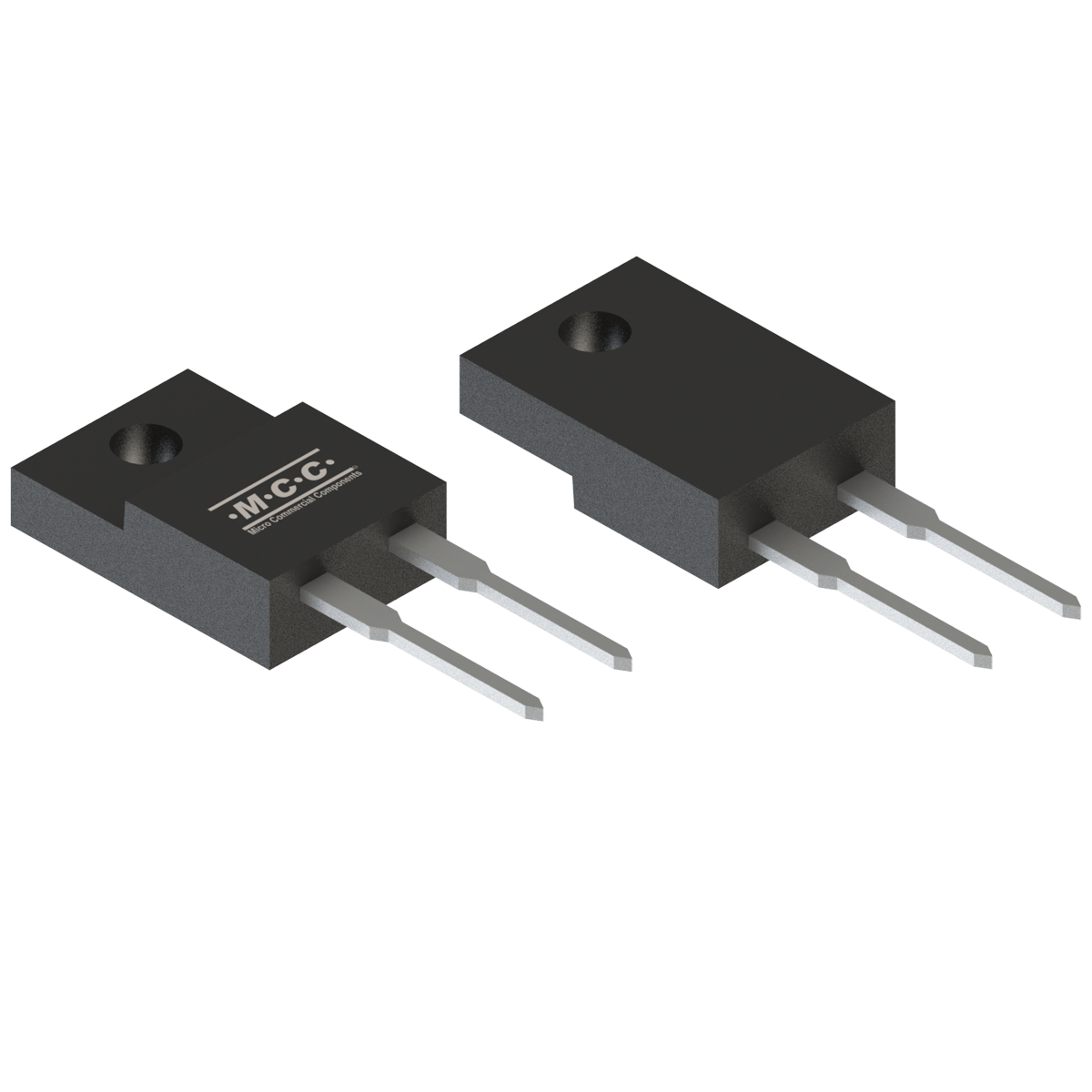

  • Package Type:ITO-220AC
  • Packing Info:Bulk: 50pcs/Tube,1Kpcs/Box,5Kpcs/Carton; Bulk: 50pcs/Tube,1Kpcs/Box,5Kpcs/Carton;
  • Category:SiC Schottky Barrier Diodes (SBDs)
  • MPN:SICF02120Y-BP
Check Stock Add To Cart
Datasheet ECAD Model Reliability Data

Product Detail

Part Number Number of Functions Average
Forward
Current
IF(AV)(A)		 Peak Repetitive
Reverse
Voltage
VRRM (V)		 Forward
Voltage
VF
(V) [max]@IF(A)		 Junction
Temperature
Tj [max] (°C)		 At Rated Forward
Current
IF (A)		 Reverse Voltage
Leakage
Current
IR (uA)  [max] @ VR		 Maximum DC
Blocking
Voltage
VR (V)		 Peak Forward
Surge
Current
IFSM (A)
SICF02120Y Single 2 1200 1.6 175 2 20 1200 20
Part Number SICF02120Y Number of Functions Single Average
Forward
Current
IF(AV)(A)  2 		Peak Repetitive
Reverse
Voltage
VRRM (V)  1200 		Forward
Voltage
VF
(V) [max]@IF(A)  1.6 		Junction
Temperature
Tj [max] (°C)  175 		At Rated Forward
Current
IF (A)  2 		Reverse Voltage
Leakage
Current
IR (uA)  [max] @ VR  20 		Maximum DC
Blocking
Voltage
VR (V)  1200 		Peak Forward
Surge
Current
IFSM (A)  20

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code
SICF02120Y ITO-220AC ITO-220AC 1.3930 SICF02120Y

Environmental Information link icon

Reliability Report Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Environmental Compliance Download
Tin Whisker Test Report MSL MTBF FIT
Tin Whisker Test Report N/A 0.00 0.0
