SiC Schottky Barrier Diodes (SBDs) | Status :
Pre-Release
Automotive

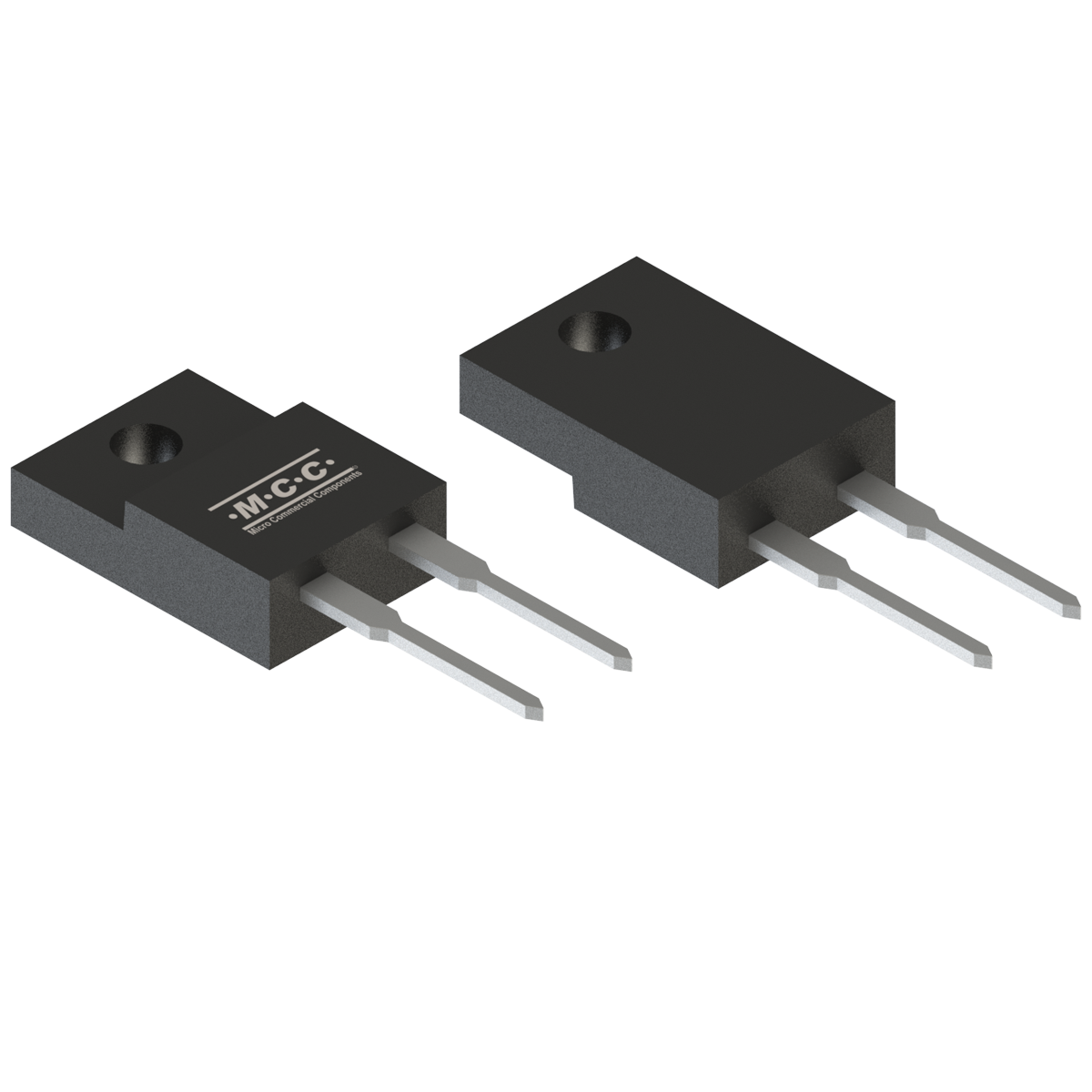

SICF02120G4JQ
- Package Type:ITO-220AC
- Packing Info:Bulk:50pcs/Tube,1Kpcs/Box,5Kpcs/Carton; Bulk:50pcs/Tube,1Kpcs/Box,5Kpcs/Carton;
- Category:SiC Schottky Barrier Diodes (SBDs)
Product Detail
| Part Number | Number of Functions | Average Forward Current IF(AV)(A) |
Peak Repetitive Reverse Voltage VRRM (V) |
Forward Voltage VF (V) [max]@IF(A) |
Junction Temperature Tj [max] (°C) |
At Rated Forward Current IF (A) |
Reverse Voltage Leakage Current IR (uA) [max] @ VR |
Maximum DC Blocking Voltage VR (V) |
Peak Forward Surge Current IFSM (A) |
|---|---|---|---|---|---|---|---|---|---|
| SICF02120G4JQ | Single | 2 | 1200 | 1.6 | 175 | 2 | 20 | 1200 | 20 |
| Part Number SICF02120G4JQ | Number of Functions Single |
Average Forward Current IF(AV)(A) 2 |
Peak Repetitive Reverse Voltage VRRM (V) 1200 |
Forward Voltage VF (V) [max]@IF(A) 1.6 |
Junction Temperature Tj [max] (°C) 175 |
At Rated Forward Current IF (A) 2 |
Reverse Voltage Leakage Current IR (uA) [max] @ VR 20 |
Maximum DC Blocking Voltage VR (V) 1200 |
Peak Forward Surge Current IFSM (A) 20 |
Packing Information
Download
| Tin Whisker Test Report | MSL | MTBF | FIT |
|---|---|---|---|
|
N/A | 0.00 | 0.0 |
