SIC MOSFETS | Status :
Pre-Release

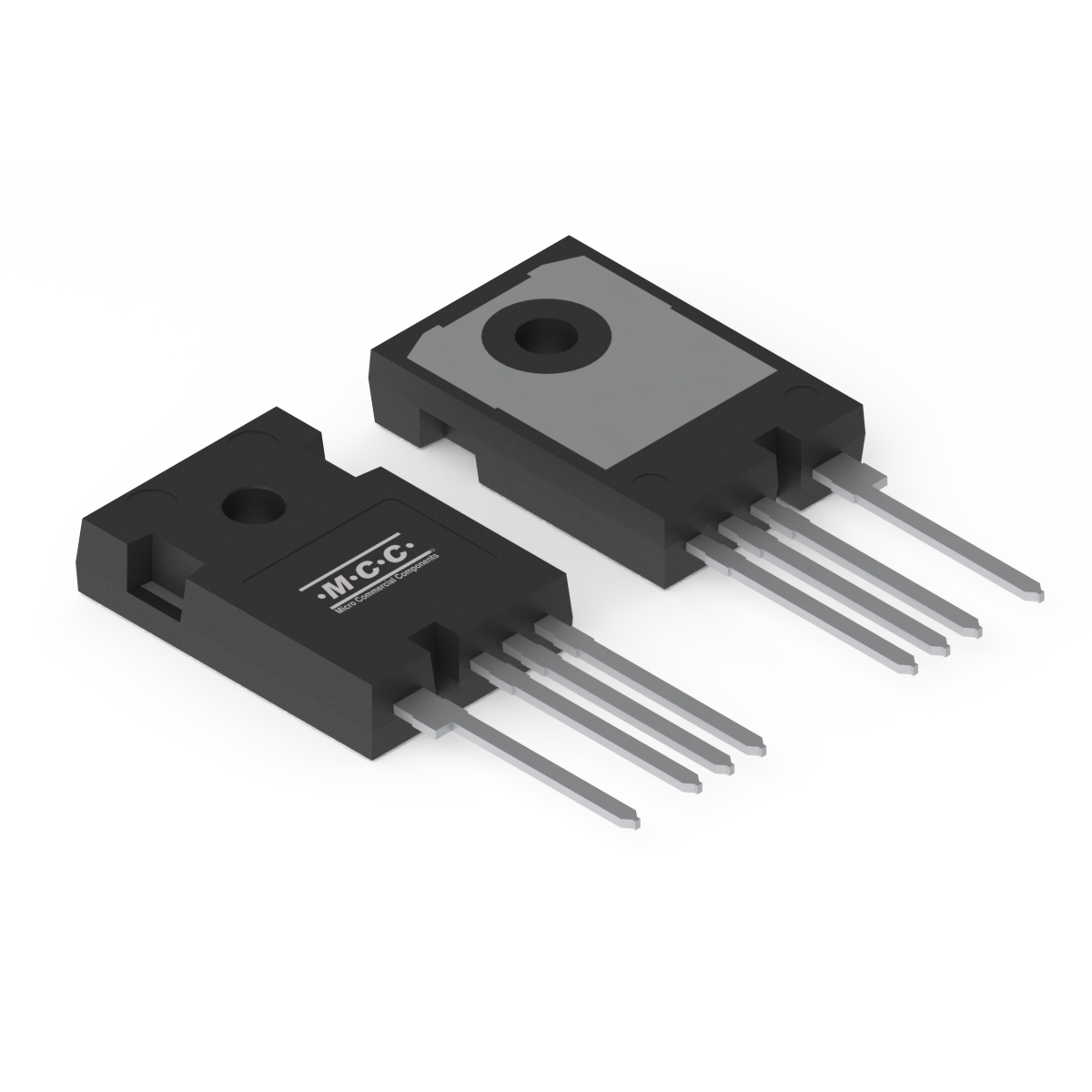

SICWZ025N075G3
- Package Type:TO-247-4
- Packing Info:Tube:30pcs/Tube, 1.8K/Ctn
- Category:SIC MOSFETS
Product Detail
| Part Number | Number of Functions | Channel | Drain-Source Voltage VDS (V) |
Gate-Source Voltage VGS (V) |
Drain Current ID (A) |
Drain-Source On-Resistance RDS(ON) Max @VGS=18V (Ω) |
Drain-Source On-Resistance RDS(ON) Max @VGS=15V (Ω) |
Gate Threshold Voltage VGS(th) Min (V) |
Gate Threshold Voltage VGS(th) Max (V) |
ESD Diodes |
Junction Temperature Tj [max] (°C) |
Single Pulsed Avalanche Energy EAS(mJ) |
Pulsed Drain Current IDM(A) |
Input Capacitance Ciss(pF) |
Power Rating PD(W) |
Total Gate Charge Qg(nC) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SICWZ025N075G3 | Single | N | 750 | -8/+22 | 107 | 0.027 | 2 | 4 | No | 175 | 975 | 265 | 4121 | 365 | 147 |
| Part Number SICWZ025N075G3 | Number of Functions Single | Channel N |
Drain-Source Voltage VDS (V) 750 |
Gate-Source Voltage VGS (V) -8/+22 |
Drain Current ID (A) 107 |
Drain-Source On-Resistance RDS(ON) Max @VGS=18V (Ω) 0.027 |
Drain-Source On-Resistance RDS(ON) Max @VGS=15V (Ω) |
Gate Threshold Voltage VGS(th) Min (V) 2 |
Gate Threshold Voltage VGS(th) Max (V) 4 |
ESD Diodes No |
Junction Temperature Tj [max] (°C) 175 |
Single Pulsed Avalanche Energy EAS(mJ) 975 |
Pulsed Drain Current IDM(A) 265 |
Packing Information
| Part Number | Package Type | Packing Specification | Component Weight (g) | Marking Code |
|---|---|---|---|---|
| SICWZ025N075G3 | TO-247-4 | TO-247-4 | 6.1165 | SICWZ025N075G3 |
Environmental Information
Download
| MSL | MTBF | FIT |
|---|---|---|
| N/A | 0.00 | 0.0 |
Similar Recommendations
| Part Number | Category | Package Type | Status | Datasheet |
|---|---|---|---|---|
| SICW025N120Y | SIC MOSFETS | TO-247AB | Preferred |
 Datasheet
|
