SIC MOSFETS | Status : Pre-Release

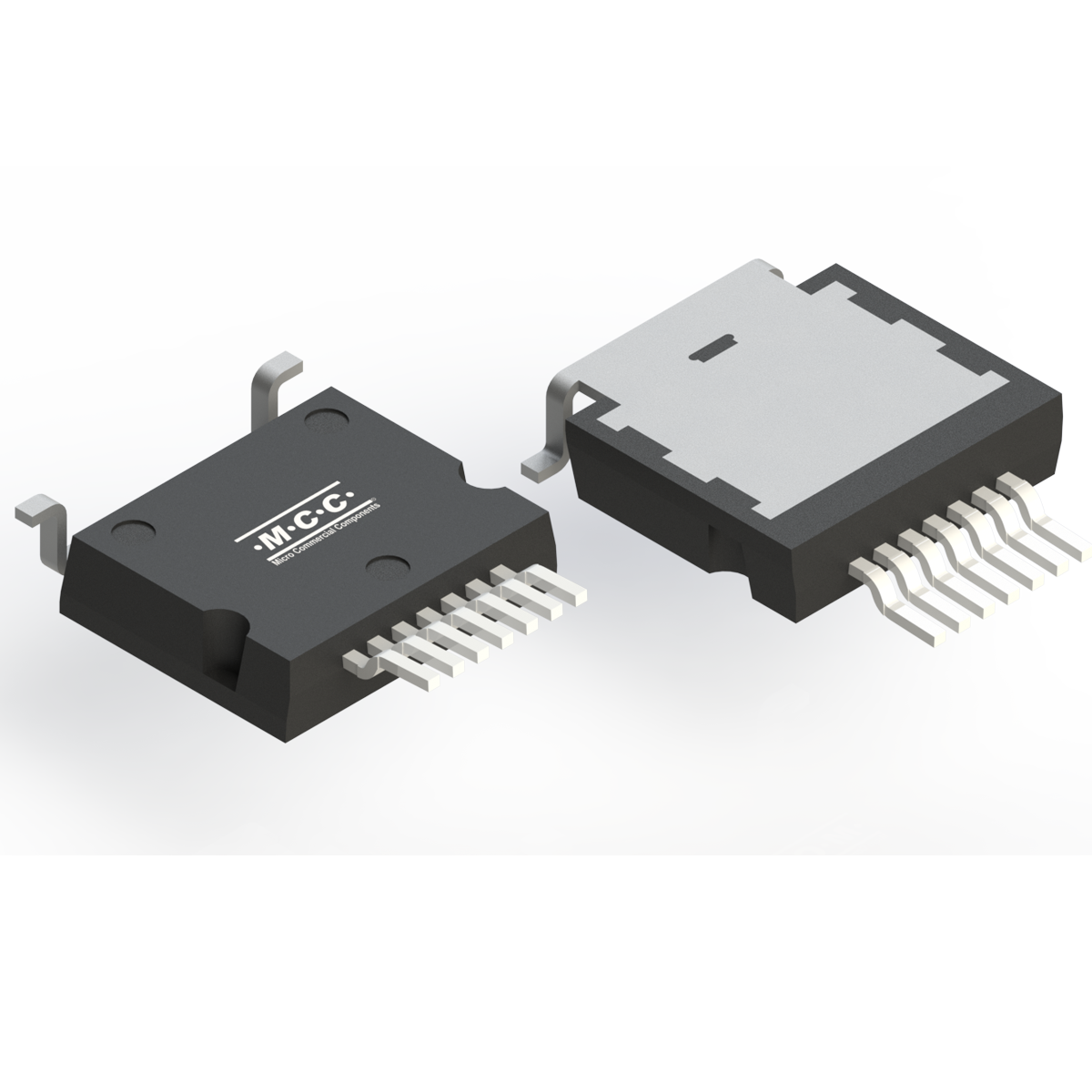

SICT025N065H

  • Package Type:T2PAK
  • Packing Info:Tape&Reel: 800pcs/Reel;
  • Category:SIC MOSFETS
Check Stock Add To Cart
Datasheet ECAD Model Reliability Data

Product Detail

Part Number Number of Functions Channel Drain-Source
Voltage
VDS (V)		 Gate-Source
Voltage
VGS (V)		 Drain
Current
ID (A)		 Drain-Source
On-Resistance
RDS(ON)
Max
@VGS=18V (Ω)		 Drain-Source
On-Resistance
RDS(ON)
Max
@VGS=15V (Ω)		 Gate
Threshold
Voltage
VGS(th) Min
(V)		 Gate
Threshold
Voltage
VGS(th) Max (V)		 ESD
Diodes		 Junction
Temperature
Tj [max]
(°C)		 Single
Pulsed
Avalanche
Energy
EAS(mJ)		 Pulsed Drain
Current
IDM(A)		 Input
Capacitance
Ciss(pF)		 Power
Rating
PD(W)		 Total Gate
Charge
Qg(nC)
SICT025N065H Single N 650 -10/+22 107 0.03 2 4.5 No 175 3200 305 5740 375 275
Part Number SICT025N065H Number of Functions Single Channel N Drain-Source
Voltage
VDS (V)  650 		Gate-Source
Voltage
VGS (V)  -10/+22 		Drain
Current
ID (A)  107 		Drain-Source
On-Resistance
RDS(ON)
Max
@VGS=18V (Ω)  0.03 		Drain-Source
On-Resistance
RDS(ON)
Max
@VGS=15V (Ω)   		Gate
Threshold
Voltage
VGS(th) Min
(V)  2 		Gate
Threshold
Voltage
VGS(th) Max (V)  4.5 		ESD
Diodes  No 		Junction
Temperature
Tj [max]
(°C)  175 		Single
Pulsed
Avalanche
Energy
EAS(mJ)  3200 		Pulsed Drain
Current
IDM(A)  305

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code Packing Info
SICT025N065H T2PAK Package Type Image T2PAK 0.0000 SICT025N065H Tape&Reel: 800pcs/Reel;

Environmental Information link icon

Reliability Report Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Environmental Compliance Download
MSL MTBF FIT
N/A 0.00 0.0
