ESD Protection Devices | Status :
Active
ESDHC22VPF

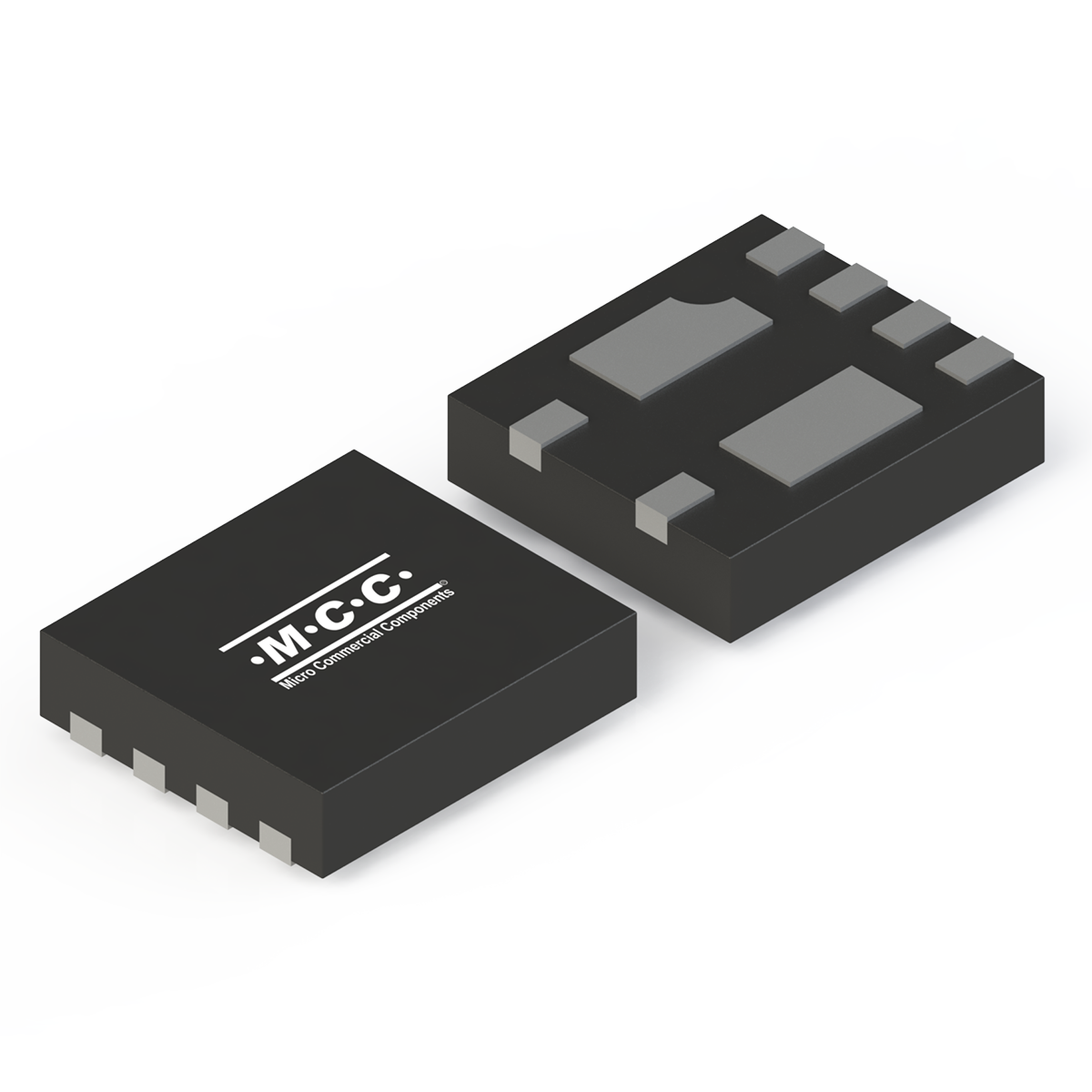

- Package Type:DFN2018-6L
- Packing Info:Tape&Reel:3Kpcs/Reel;
- Category:ESD Protection Devices
- MPN:ESDHC22VPF-TP
Product Detail
| Part Number | Number of Functions | Configuration | Reverse Standoff Voltage VRWM(V) |
Peak Pulse Current IPP(A) |
Max. Clamping Voltage VC (V) |
Junction Capacitance CJ(pF) |
Peak Pluse Power Dissipation PPPK (W) |
Maximum Reverse Leakage IR (uA) |
Breakdown Voltage Min VBR(V) |
Breakdown Voltage Max VBR(V) |
Junction Temperature Tj [max] (°C) |
VESDIEC61000-4-2 Air/Contact (kV) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ESDHC22VPF | 1 | Unidirectional | 22 | 100 | 35 | 850 | 3400 | 1 | 24 | 26 | 125 | ±30 |
| Part Number ESDHC22VPF | Number of Functions 1 | Configuration Unidirectional |
Reverse Standoff Voltage VRWM(V) 22 |
Peak Pulse Current IPP(A) 100 |
Max. Clamping Voltage VC (V) 35 |
Junction Capacitance CJ(pF) 850 |
Peak Pluse Power Dissipation PPPK (W) 3400 |
Maximum Reverse Leakage IR (uA) 1 |
Breakdown Voltage Min VBR(V) 24 |
Breakdown Voltage Max VBR(V) 26 |
Junction Temperature Tj [max] (°C) 125 |
VESDIEC61000-4-2 Air/Contact (kV) ±30 |
Packing Information
| Part Number | Package Type | Packing Specification | Component Weight (g) | Marking Code | Packing Info |
|---|---|---|---|---|---|
| ESDHC22VPF | DFN2018-6L | DFN2018-6L | 0.0000 | 5131 V22 | Tape&Reel:3Kpcs/Reel; |
Environmental Information
Download
| MSL | MTBF | FIT |
|---|---|---|
| 1 | 0.00 | 0.0 |
