Standard Recovery Power Modules | Status : Active

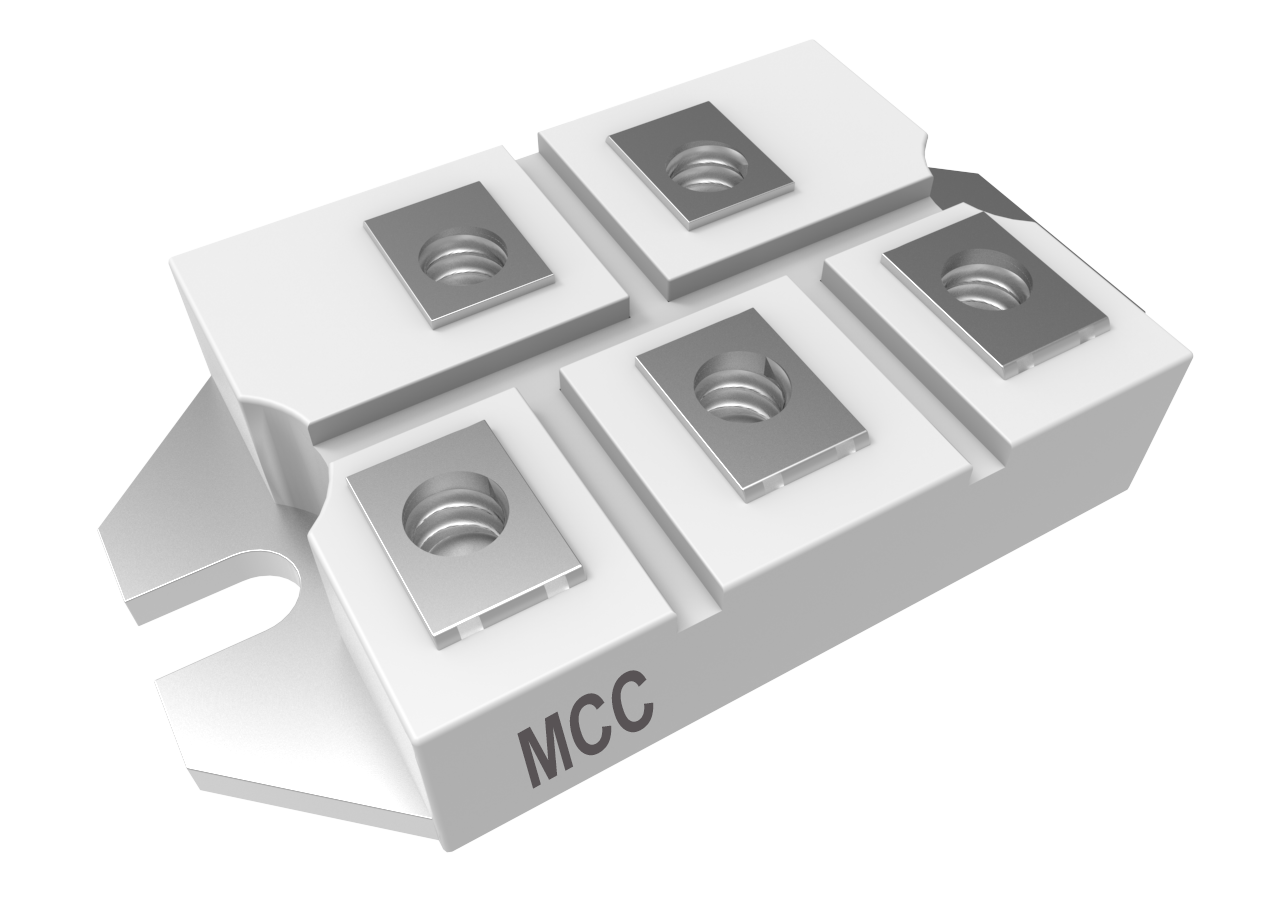

MD200S12M5

Check Stock Add To Cart
Datasheet ECAD Model Reliability Data

Product Detail

Part Number Number of Functions VRRM (V) IF(AV)(A)@Tc (°C) IFSM (A) VFM (V) IF(A) IRD (mA) VRD (V) Tc (°C) TVj [max] (°C)
MD200S12M5 3-Phase Bridge 1200 200 2240 1.7 300 6 1200 100 150
Part Number MD200S12M5 Number of Functions 3-Phase Bridge VRRM (V)  1200 IF(AV)(A)@Tc (°C)  200 IFSM (A)  2240 VFM (V)  1.7 IF(A)  300 IRD (mA)  6 VRD (V)  1200 Tc (°C)  100 TVj [max] (°C)  150

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code
MD200S12M5 M5 M5 194.0000 MD200S12M5

Environmental Information link icon

Reliability Report Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Environmental Compliance Download
MTBF FIT
27479.27 4.2
