Small Signal MOSFETS | Status : Active
Automotive

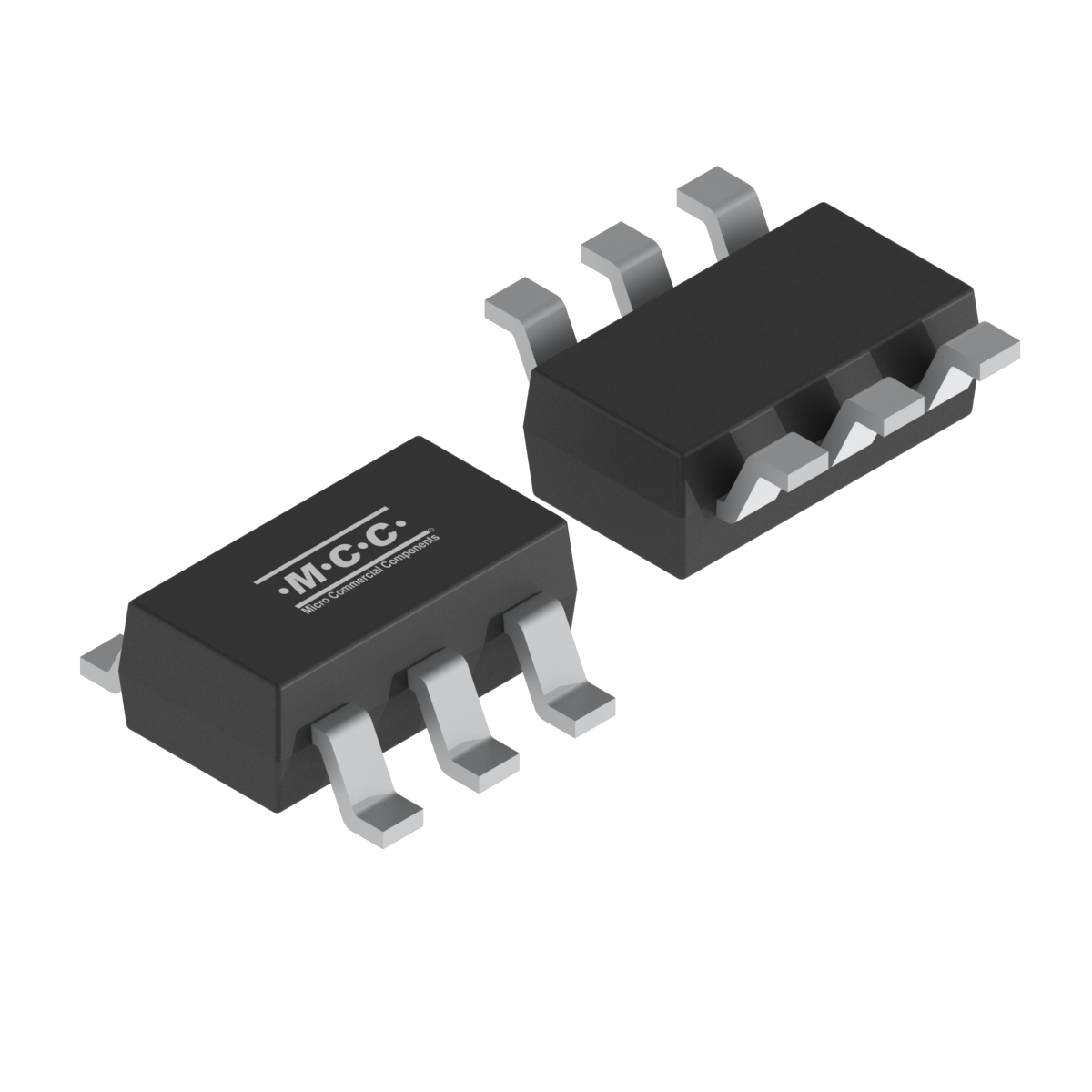

SIL04P06YHE3

  • Package Type:SOT23-6L
  • Packing Info:Tape&Reel:3Kpcs/Reel;
  • Category:Small Signal MOSFETS
  • MPN:SIL04P06YHE3-TP
Check Stock Add To Cart
Datasheet ECAD Model Reliability Data

Product Detail

Part Number Number of Functions Channel Drain-Source
Voltage
VDS (V)		 Gate-Source
Voltage
VGS (V)		 Drain
Current
ID (A)		 RDS(ON)
Max
@VGS=10V
(Ω)		 RDS(ON)
Max
@VGS=4.5V
(Ω)		 RDS(ON)
Max
@VGS=2.5V
(Ω)		 Gate
Threshold
Voltage
VGS(th) Min
(V)		 Gate
Threshold
Voltage
VGS(th) Max
(V)		 ESD
Diodes		 Junction
Temperature
Tj [max]
(°C)		 Input
Capacitance
Ciss(pF)		 Output
Capacitance
Coss(pF)		 Power
Rating
PD(W)		 Total Gate
Charge
Qg(nC)		 Gate-Drain
Charge
Qgd(nC)
SIL04P06YHE3 Single P -60 ±20 -3.5 0.085 0.12 -1 -2.5 No 150 491 93 1.7 4.27 1.1
Part Number SIL04P06YHE3 Number of Functions Single Channel P Drain-Source
Voltage
VDS (V)  -60 		Gate-Source
Voltage
VGS (V)  ±20 		Drain
Current
ID (A)  -3.5 		RDS(ON)
Max
@VGS=10V
(Ω)  0.085 		RDS(ON)
Max
@VGS=4.5V
(Ω)  0.12 		RDS(ON)
Max
@VGS=2.5V
(Ω)   		Gate
Threshold
Voltage
VGS(th) Min
(V)  -1 		Gate
Threshold
Voltage
VGS(th) Max
(V)  -2.5 		ESD
Diodes  No 		Junction
Temperature
Tj [max]
(°C)  150

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code Packing Info
SIL04P06YHE3 SOT23-6L SOT23-6L 0.0110 04P06Y. Tape&Reel:3Kpcs/Reel;

Environmental Information link icon

Reliability Report Material Composition Data Sheet Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Configuration image Download Environmental Compliance Download
MTBF FIT
0.00 0.0
