Small Signal MOSFETS | Status :
Active

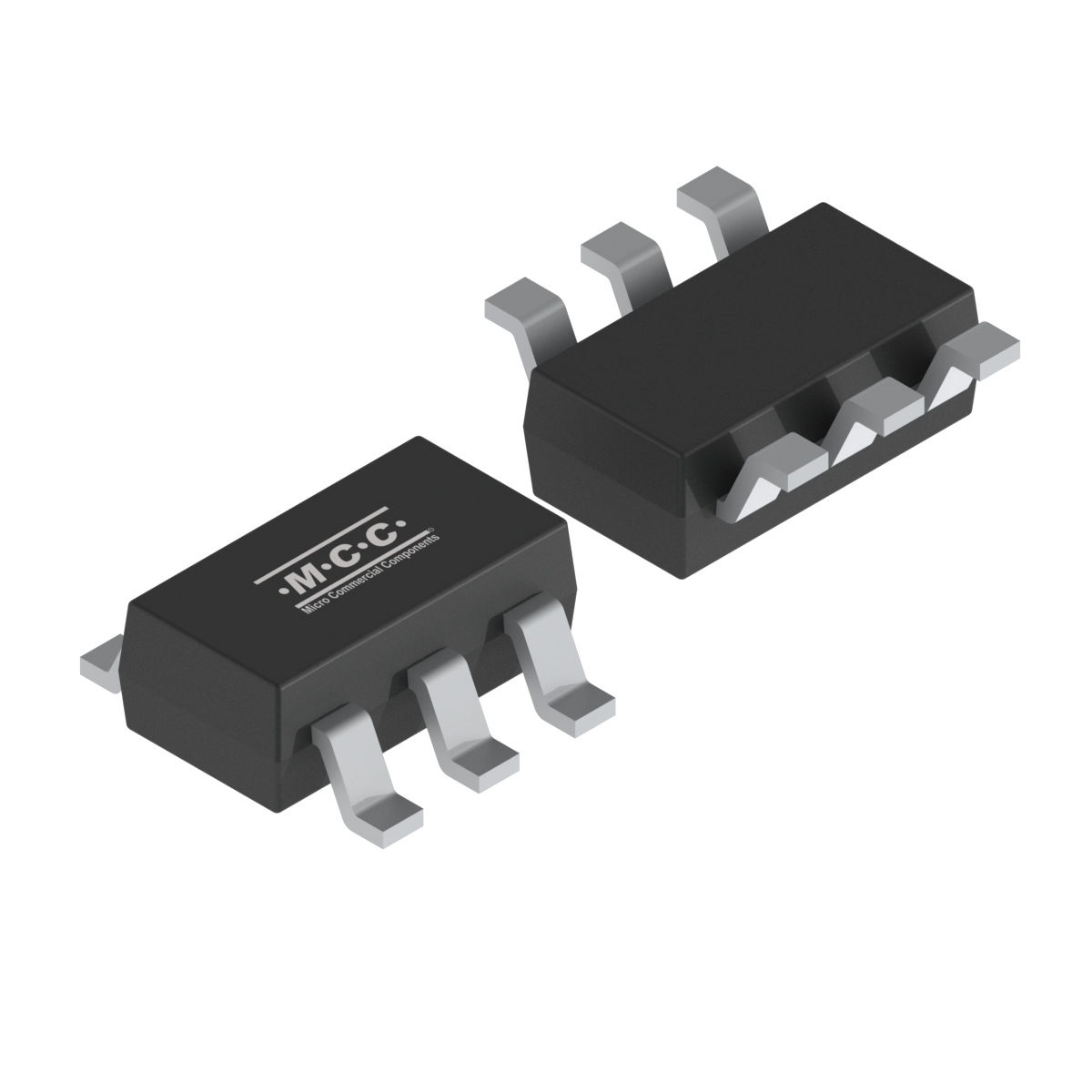

SIL04P06Y
- Package Type:SOT23-6L
- Packing Info:Tape&Reel
- Category:Small Signal MOSFETS
- MPN:SIL04P06Y-TP
Product Detail
| Part Number | Number of Functions | Channel | Drain-Source Voltage VDS (V) |
Gate-Source Voltage VGS (V) |
Drain Current ID (A) |
RDS(ON) Max @VGS=10V (Ω) |
RDS(ON) Max @VGS=4.5V (Ω) |
RDS(ON) Max @VGS=2.5V (Ω) |
Gate Threshold Voltage VGS(th) Min (V) |
Gate Threshold Voltage VGS(th) Max (V) |
ESD Diodes |
Junction Temperature Tj [max] (°C) |
Input Capacitance Ciss(pF) |
Output Capacitance Coss(pF) |
Power Rating PD(W) |
Total Gate Charge Qg(nC) |
Gate-Drain Charge Qgd(nC) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SIL04P06Y | Single | P | -60 | ±20 | -3.5 | 0.085 | 0.12 | -1 | -2.5 | No | 150 | 513 | 130 | 1.56 | 4.27 | 1.1 |
| Part Number SIL04P06Y | Number of Functions Single | Channel P |
Drain-Source Voltage VDS (V) -60 |
Gate-Source Voltage VGS (V) ±20 |
Drain Current ID (A) -3.5 |
RDS(ON) Max @VGS=10V (Ω) 0.085 |
RDS(ON) Max @VGS=4.5V (Ω) 0.12 |
RDS(ON) Max @VGS=2.5V (Ω) |
Gate Threshold Voltage VGS(th) Min (V) -1 |
Gate Threshold Voltage VGS(th) Max (V) -2.5 |
ESD Diodes No |
Junction Temperature Tj [max] (°C) 150 |
Packing Information
Environmental Information
Download
| MSL | MTBF | FIT |
|---|---|---|
| 3 | 7494.35 | 15.2 |
