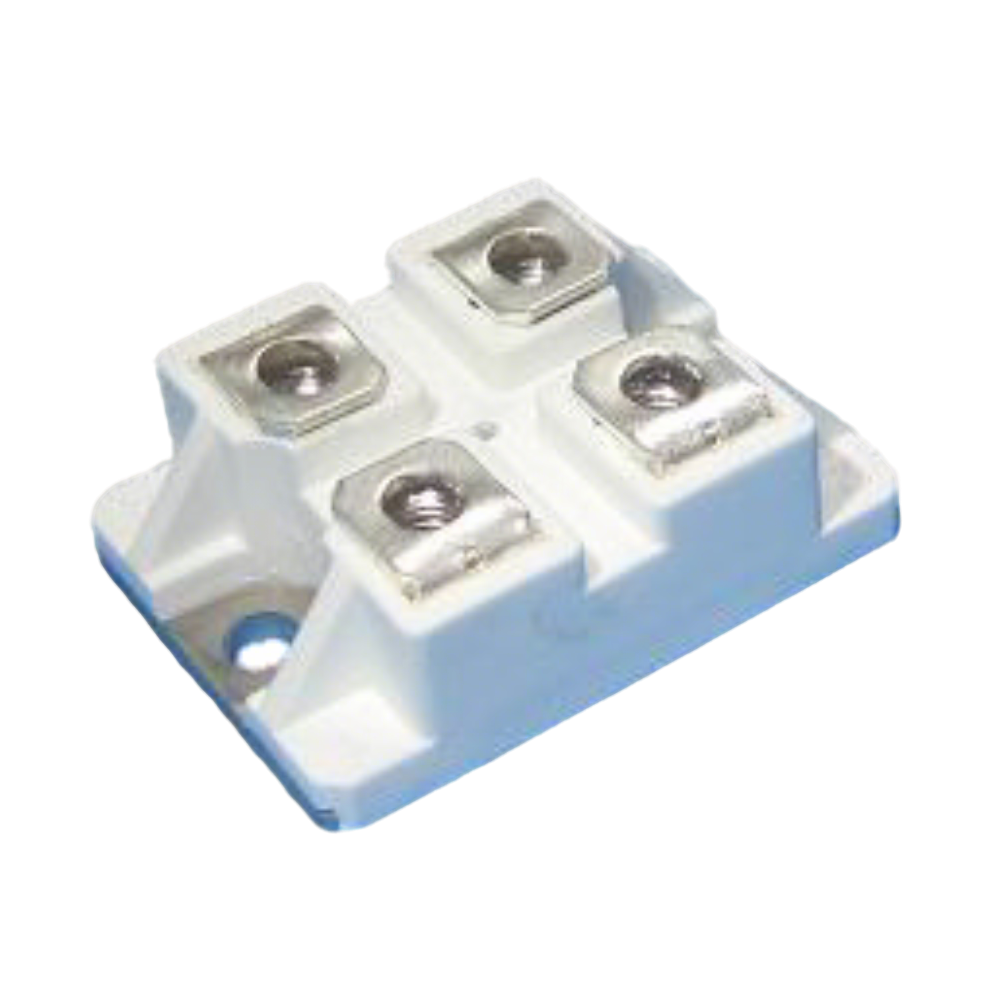

MIUZ100R12GJTL
- Package Type:GJ
- Packing Info:Bulk: 25pcs/Box,125pcs/Ctn;
- Category:IGBT Modules
- MPN:MIUZ100R12GJTL-BP
Product Detail
| Part Number | Number of Functions | Collector‐Emitter Voltage VCES (V) |
Continuous Collector Current @ Tc=100°C IC (A) |
Collector‐Emitter Saturation Voltage VCE(sat) (V) |
Turn-On Energy@TVJ=125°C Eon (mJ) |
Turn‐Off Energyy@TVJ=125°C Eoff (mJ) |
Junction Temperature Tj [max] (°C) |
Total Power Dissipation Ptot(W) |
|---|---|---|---|---|---|---|---|---|
| MIUZ100R12GJTL | Single | 1200 | 100 | 2.25 | 13.5 | 7 | 175 | 535 |
| Part Number MIUZ100R12GJTL | Number of Functions Single |
Collector‐Emitter Voltage VCES (V) 1200 |
Continuous Collector Current @ Tc=100°C IC (A) 100 |
Collector‐Emitter Saturation Voltage VCE(sat) (V) 2.25 |
Turn-On Energy@TVJ=125°C Eon (mJ) 13.5 |
Turn‐Off Energyy@TVJ=125°C Eoff (mJ) 7 |
Junction Temperature Tj [max] (°C) 175 |
Total Power Dissipation Ptot(W) 535 |
Packing Information
| Part Number | Package Type | Packing Specification | Component Weight (g) | Marking Code |
|---|---|---|---|---|
| MIUZ100R12GJTL | GJ | GJ | 35.0000 | MIUZ100R12GJTL |
Environmental Information
Download
| MSL | MTBF | FIT |
|---|---|---|
| N/A | 0.00 | 0.0 |
