Bridge Rectifiers | Status : Preferred

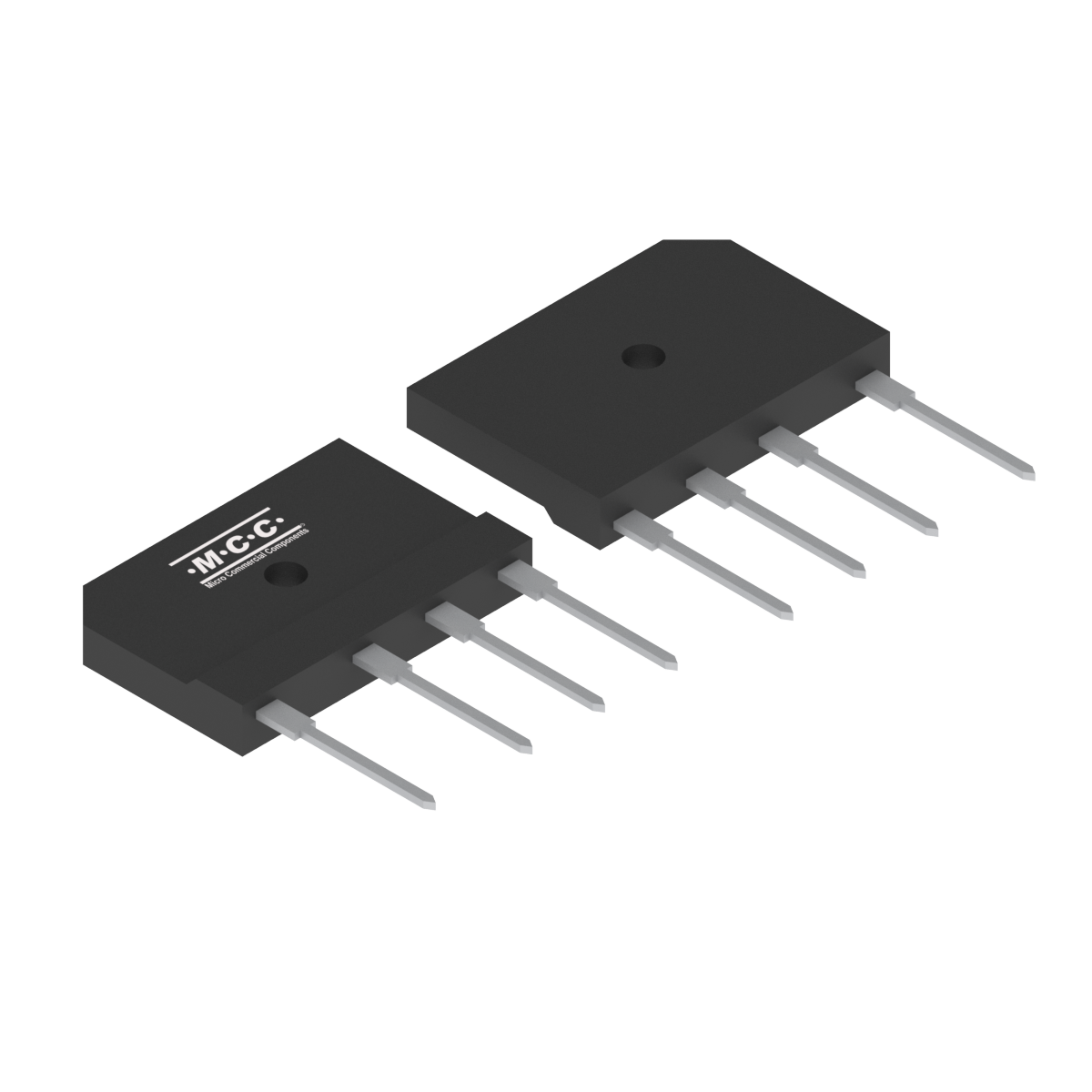

GBJ25L08A

  • Package Type:GBJ
  • Packing Info:Tube:15pcs/Tube, 750pcs/Box, 1.5K/Ctn;
  • Category:Bridge Rectifiers
  • MPN:GBJ25L08A-BP
Check Stock Add To Cart
Datasheet ECAD Model Reliability Data

Product Detail

Part Number Number of Functions IF(AV)(A) VRWM (V) VF
(V) [max]@IF(A)		 IR (uA)  [max] @
VR		 IFSM (A) IF(A) VR (V) Tj [max] (°C)
GBJ25L08A 1-Phase Bridge 25 800 0.9 5 380 12.5 800 150
Part Number GBJ25L08A Number of Functions 1-Phase Bridge IF(AV)(A)  25 VRWM (V)  800 VF
(V) [max]@IF(A)  0.9 		IR (uA)  [max] @
VR  5 		IFSM (A)  380 IF(A)  12.5 VR (V)  800 Tj [max] (°C)  150

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code
GBJ25L08A GBJ GBJ 6.8730 GBJ25L08A

Environmental Information link icon

Reliability Report Material Composition Data Sheet Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Configuration image Download Environmental Compliance Download
Tin Whisker Test Report MSL MTBF FIT
Tin Whisker Test Report N/A 0.00 0.0
