Bridge Rectifiers | Status : Active

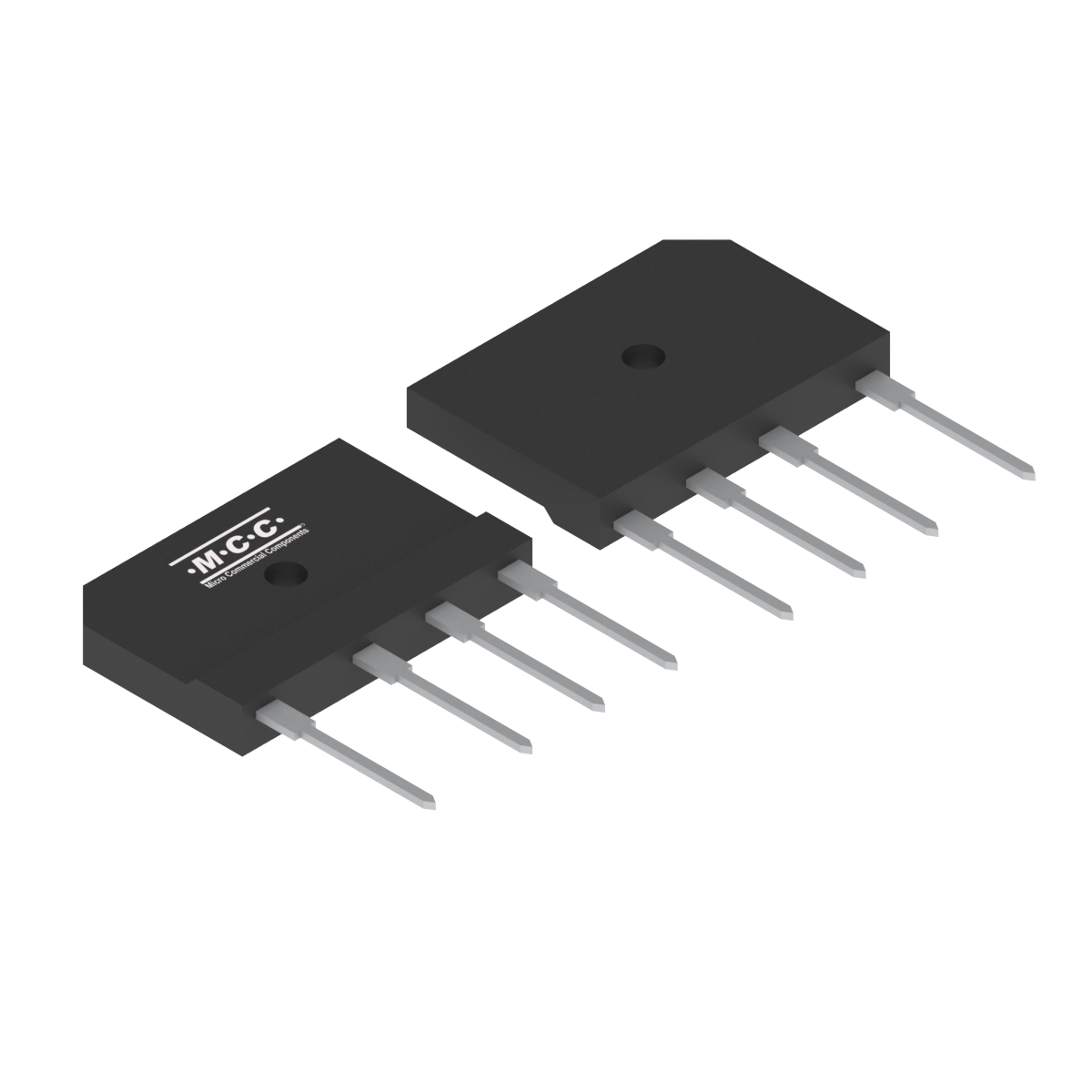

GBJ15L08

  • Package Type:GBJ
  • Packing Info:Tube : 15pcs/Tube, 750pcs/Box, 1.5K/Ctn;
  • Category:Bridge Rectifiers
  • MPN:GBJ15L08-BP
Check Stock Add To Cart
Datasheet ECAD Model Reliability Data

Product Detail

Part Number Number of Functions IF(AV)(A) VRWM (V) VF
(V) [max]@IF(A)		 IR (uA)  [max] @
VR		 IFSM (A) IF(A) VR (V) Tj [max] (°C)
GBJ15L08 1-Phase Bridge 15 800 0.92 5 250 7.5 800 150
Part Number GBJ15L08 Number of Functions 1-Phase Bridge IF(AV)(A)  15 VRWM (V)  800 VF
(V) [max]@IF(A)  0.92 		IR (uA)  [max] @
VR  5 		IFSM (A)  250 IF(A)  7.5 VR (V)  800 Tj [max] (°C)  150

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code
GBJ15L08 GBJ GBJ 6.8730 GBJ15L08

Environmental Information link icon

Reliability Report Material Composition Data Sheet Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Configuration image Download Environmental Compliance Download
Tin Whisker Test Report MTBF FIT
Tin Whisker Test Report 4996.23 22.8
