ESD Protection Devices | Status : Active

CSPH12VL

Check Stock Add To Cart
Datasheet ECAD Model Reliability Data

Product Detail

Part Number Number of Functions Configuration Reverse
Standoff
Voltage
VRWM(V)		 Peak Pulse
Current
IPP(A)		 Max.
Clamping
Voltage
VC (V)		 Junction
Capacitance
CJ(pF)		 Peak Pluse
Power
Dissipation
PPPK (W)		 Maximum
Reverse
Leakage
IR (uA)		 Breakdown
Voltage
Min VBR(V)		 Breakdown
Voltage
Max VBR(V)		 Junction
Temperature
Tj [max] (°C)		 VESDIEC61000-4-2
Air/Contact
(kV)
CSPH12VL 1 Unidirectional 12 45 32 150 1300 1 13 16.5 125 ±30
Part Number CSPH12VL Number of Functions 1 Configuration Unidirectional Reverse
Standoff
Voltage
VRWM(V)  12 		Peak Pulse
Current
IPP(A)  45 		Max.
Clamping
Voltage
VC (V)  32 		Junction
Capacitance
CJ(pF)  150 		Peak Pluse
Power
Dissipation
PPPK (W)  1300 		Maximum
Reverse
Leakage
IR (uA)  1 		Breakdown
Voltage
Min VBR(V)  13 		Breakdown
Voltage
Max VBR(V)  16.5 		Junction
Temperature
Tj [max] (°C)  125 		VESDIEC61000-4-2
Air/Contact
(kV)  ±30

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code Packing Info

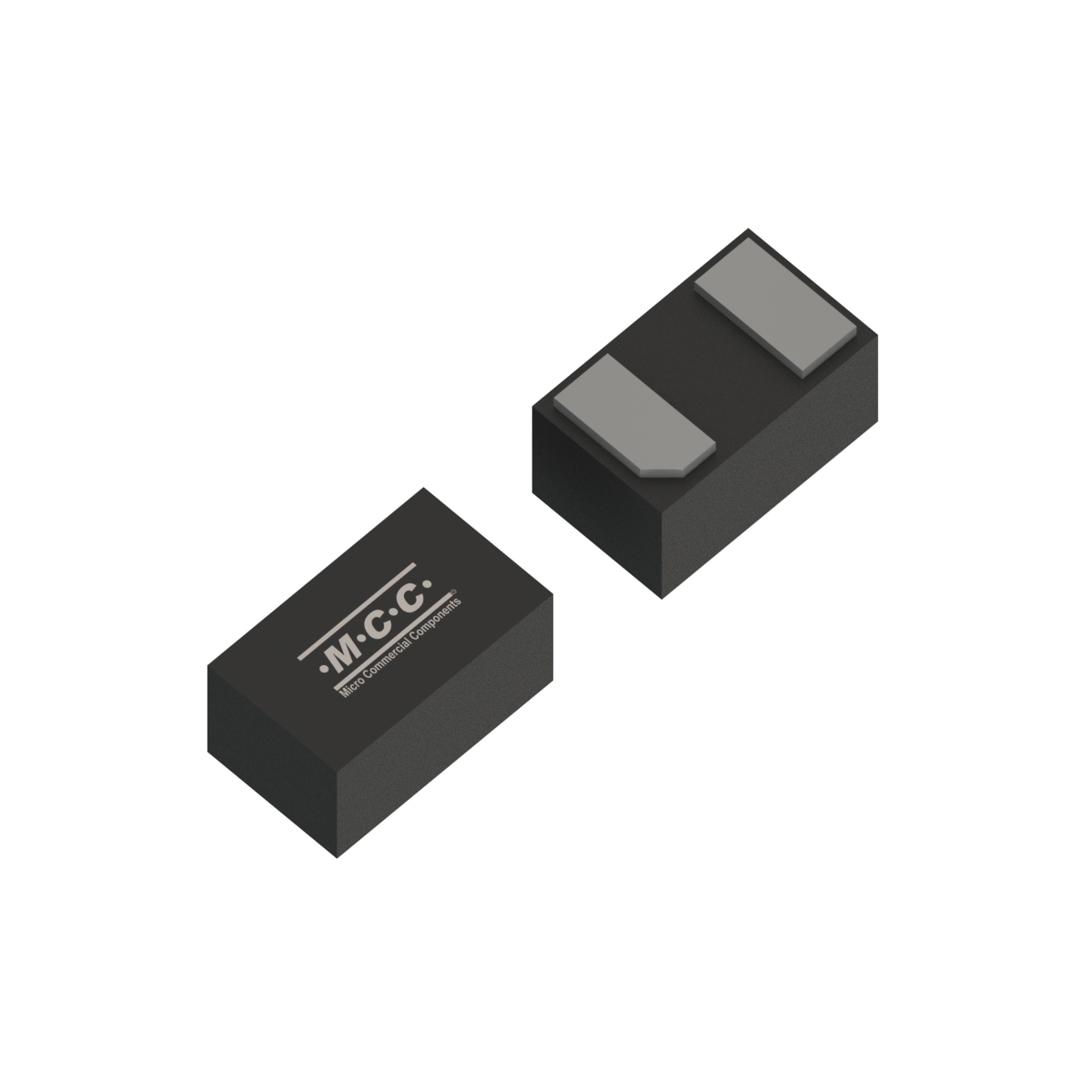

CSPH12VL CSP1006-2 CSP1006-2 0.0005 SAX Tape&Reel: 10Kpcs/Reel;

Environmental Information link icon

Reliability Report Material Composition Data Sheet Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Configuration image Download Environmental Compliance Download
MTBF FIT
3738.43 30.5
