Zener Diodes | Status : Active

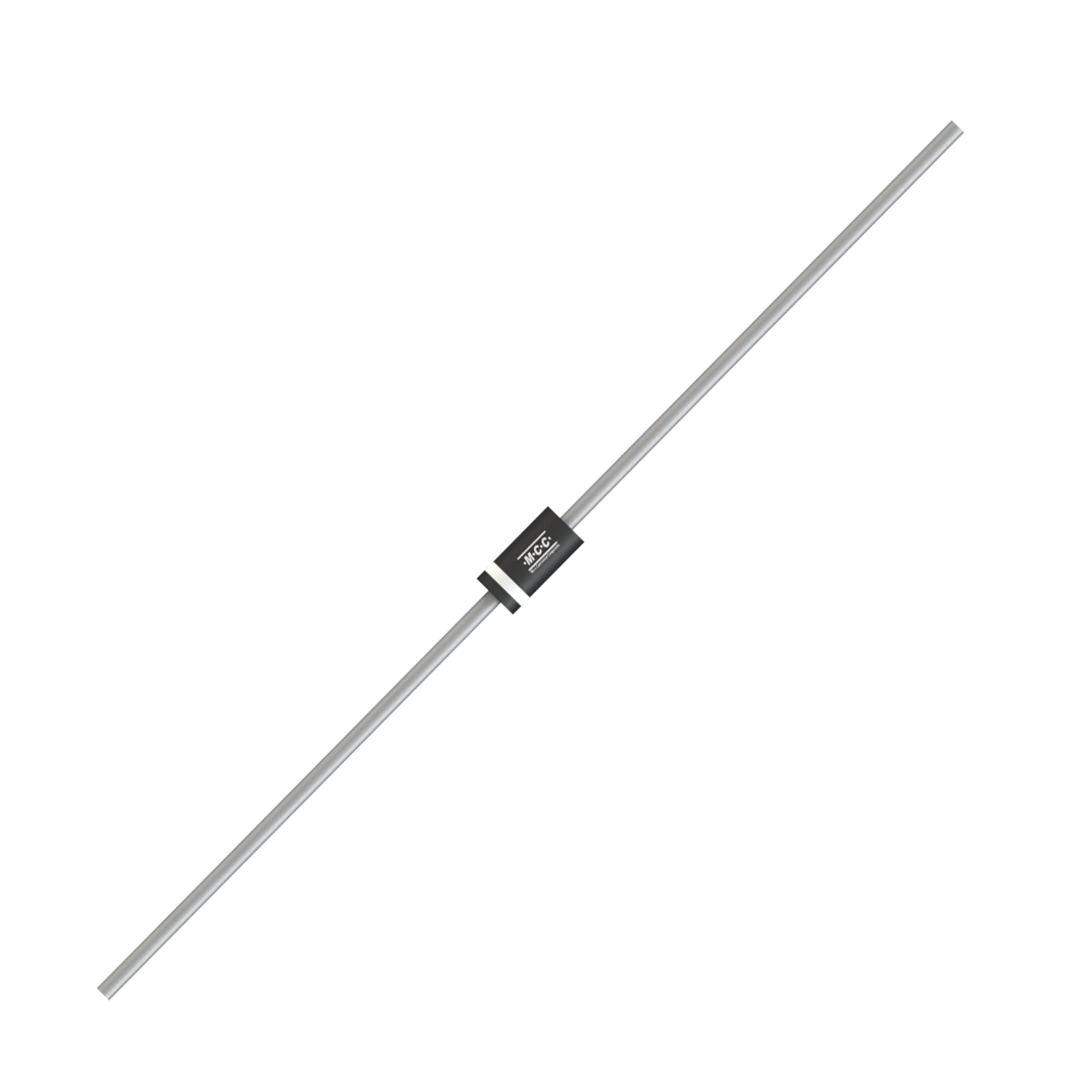

2EZ24D5

  • Package Type:DO-41
  • Packing Info: Tape : 5K/Reel, 20K/Ctn; Bulk: 1K/Box, 50K/Ctn; T/B: 5K/Ammo Box, 50K/Ctn.;
  • Category:Zener Diodes
Check Stock Add To Cart
Datasheet ECAD Model

Product Detail

Part Number Number of Functions PD(W) VZ[Nom](V) IZT(mA) IR (mA) [max]
@VR		 VR(V) ZZT(Ω)
@IZT		 ZZK(Ω)
@IZT		 IZK(mA) Tj [max]
(°C)
2EZ24D5 Single 2 24 20.8 0.0005 18.2 13 750 0.25 150
Part Number 2EZ24D5 Number of Functions Single PD(W)  2 VZ[Nom](V)  24 IZT(mA)  20.8 IR (mA) [max]
@VR  0.0005 		VR(V)  18.2 ZZT(Ω)
@IZT  13 		ZZK(Ω)
@IZT  750 		IZK(mA)  0.25 Tj [max]
(°C)  150

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code Packing Info
2EZ24D5 DO-41 DO-41 0.3300 2EZ24D5 Tape : 5K/Reel, 20K/Ctn;

Environmental Information link icon

Reliability Report Material Composition Data Sheet Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Configuration image Download Environmental Compliance Download
Tin Whisker Test Report
Tin Whisker Test Report

ECN/PCN

ECN/PCN No# Title PDF Issued Date
090111 MCC developed a new silicon wafer fab source for zeners PDF 09/01/2011
070103 Pb(Lead) Free Plating Conversion PDF 07/01/2003
