Zener Diodes | Status : Active

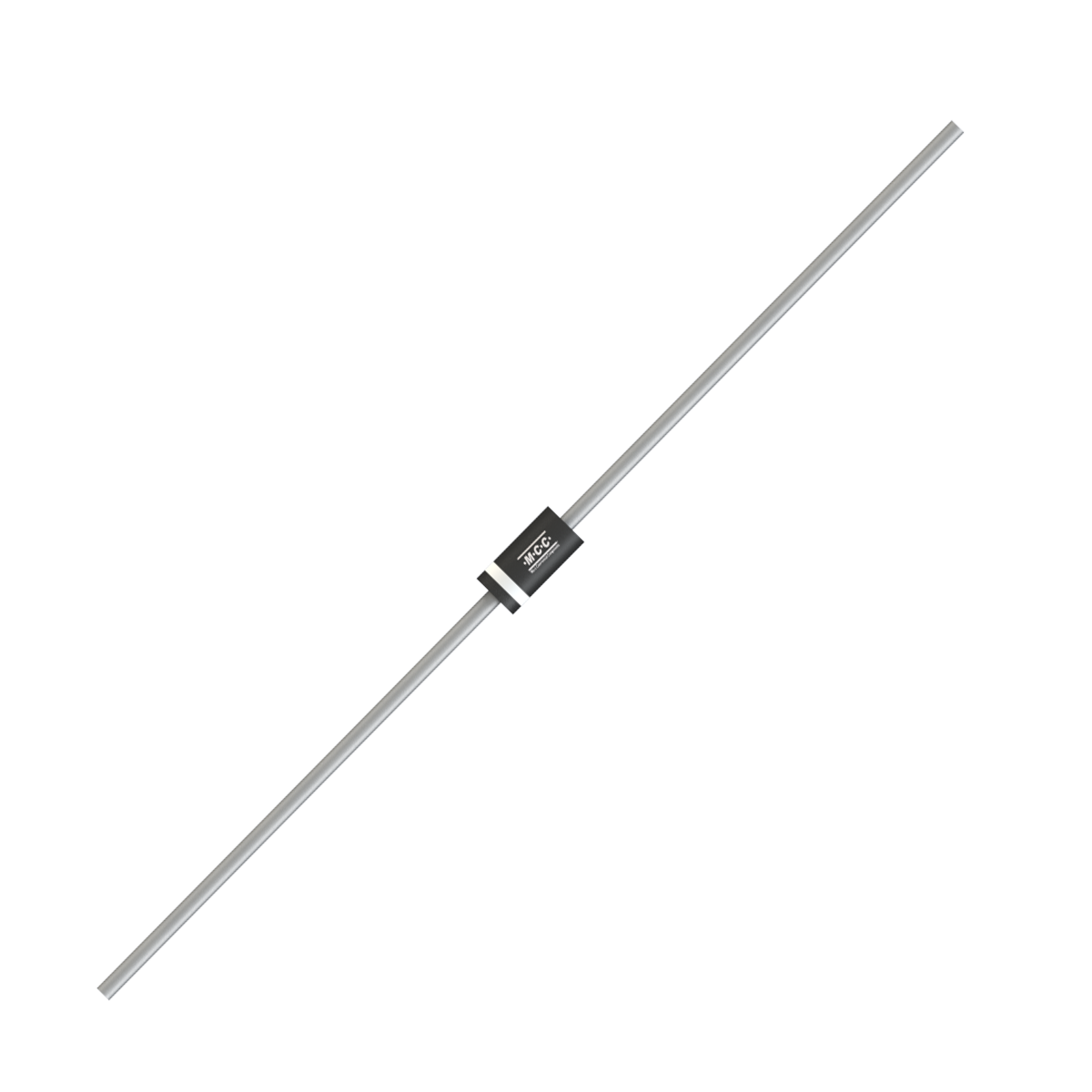

2EZ14D5

  • Package Type:DO-41
  • Packing Info:Tape : 5K/Reel, 20K/Ctn; Bulk: 1K/Box, 50K/Ctn; T/B: 5K/Ammo Box, 50K/Ctn.;
  • Category:Zener Diodes
  • MPN:2EZ14D5-TP
Check Stock Add To Cart
Datasheet ECAD Model Reliability Data

Product Detail

Part Number Number of Functions PD(W) VZ[Nom](V) IZT(mA) IR (mA) [max]
@VR		 VR(V) ZZT(Ω)
@IZT		 ZZK(Ω)
@IZT		 IZK(mA) Tj [max]
(°C)
2EZ14D5 Single 2 14 35.7 0.0005 10.6 5.5 700 0.25 150
Part Number 2EZ14D5 Number of Functions Single PD(W)  2 VZ[Nom](V)  14 IZT(mA)  35.7 IR (mA) [max]
@VR  0.0005 		VR(V)  10.6 ZZT(Ω)
@IZT  5.5 		ZZK(Ω)
@IZT  700 		IZK(mA)  0.25 Tj [max]
(°C)  150

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code Packing Info
2EZ14D5 DO-41 DO-41 0.3300 2EZ14D5 Tape : 5K/Reel, 20K/Ctn;

Environmental Information link icon

Reliability Report Material Composition Data Sheet Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Configuration image Download Environmental Compliance Download
Tin Whisker Test Report MTBF FIT
Tin Whisker Test Report 27479.27 4.2

ECN/PCN

ECN/PCN No# Title PDF Issued Date
060324-1 Additional Assembly & test centre PDF 06/03/2024
090111 MCC developed a new silicon wafer fab source for zeners PDF 09/01/2011
070103 Pb(Lead) Free Plating Conversion PDF 07/01/2003
