Zener Diodes | Status :
Obsoleted

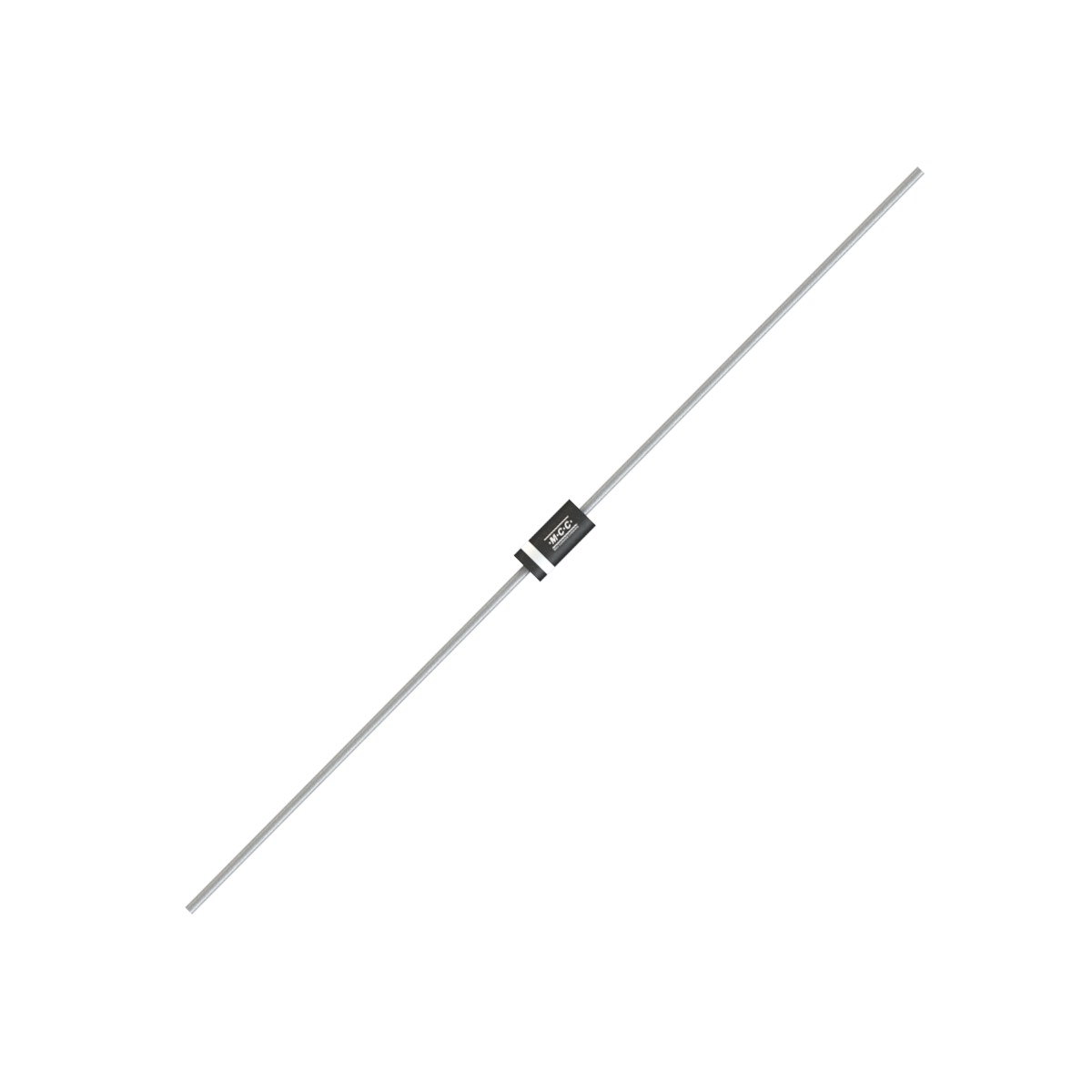

1N6013B
Last Time Ship Date:08-01-2019
EOL Notice
- Package Type:DO-35
- Packing Info:Tape : 10K/Reel, 50K/Ctn; Bulk: 10K/Box, 100K/Ctn; T/B: 5K/Ammo Box, 50K/Ctn;
- Category:Zener Diodes
Product Detail
| Part Number | Number of Functions | PD(W) | VZ[Nom](V) | IZT(mA) | IR (mA) [max] @VR |
VR(V) | ZZT(Ω) @IZT |
ZZK(Ω) @IZT |
IZK(mA) | Tj [max] (°C) |
|---|---|---|---|---|---|---|---|---|---|---|
| 1N6013B | Single | 0.5 | 36 | 5 | 0.0001 | 27 | 95 | 700 | 0.25 | 200 |
| Part Number 1N6013B | Number of Functions Single | PD(W) 0.5 | VZ[Nom](V) 36 | IZT(mA) 5 |
IR (mA) [max] @VR 0.0001 |
VR(V) 27 |
ZZT(Ω) @IZT 95 |
ZZK(Ω) @IZT 700 |
IZK(mA) 0.25 |
Tj [max] (°C) 200 |
Packing Information
| Part Number | Package Type | Packing Specification | Component Weight (g) | Packing Info |
|---|---|---|---|---|
| 1N6013B | DO-35 |
DO-35
|
0.1280 | Tape : 10K/Reel, 50K/Ctn; |
Environmental Information
Download
| MTBF | FIT |
|---|---|
| 80246.89 | 1.4 |
ECN/PCN
| ECN/PCN No# | Title | Issued Date | |
|---|---|---|---|
| 070103 | Pb(Lead) Free Plating Conversion |
|
07/01/2003 |
