Zener Diodes | Status :
Obsoleted

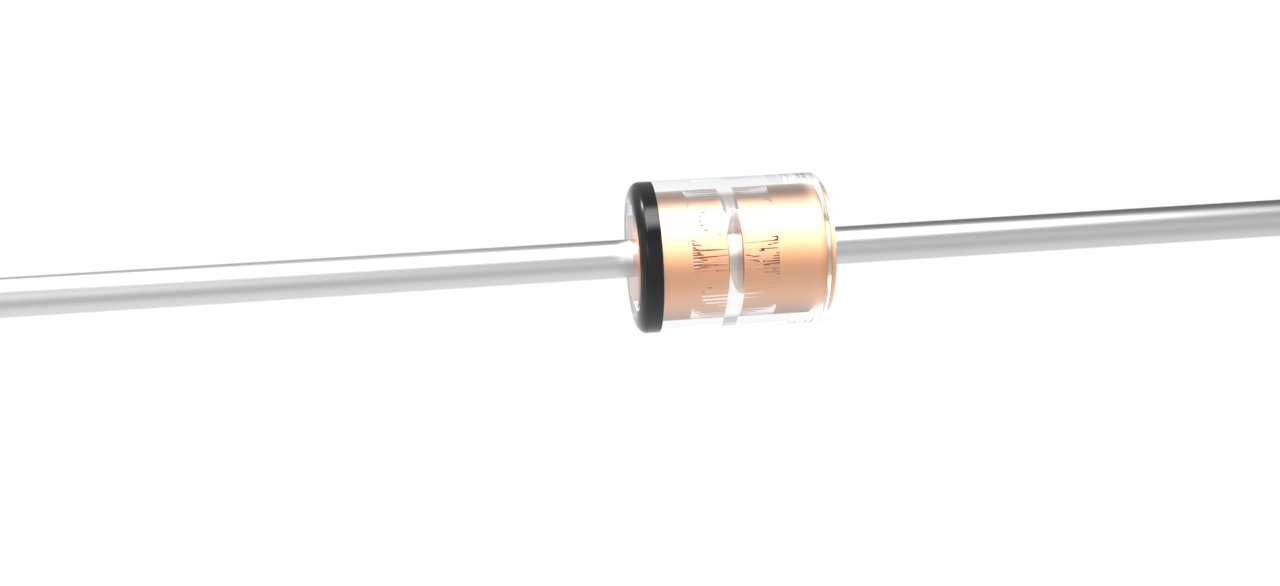

1N4738A
Last Time Ship Date:12-31-2021
EOL Notice
- Package Type:DO-41G
- Packing Info:Tape : 5K/Reel, 20K/Ctn; Bulk: 1K/Box, 50K/Ctn; T/B: 2.5K/Ammo Box, 20K/Ctn.;
- Category:Zener Diodes
Product Detail
| Part Number | Number of Functions | PD(W) | VZ[Nom](V) | IZT(mA) | IR (mA) [max] @VR |
VR(V) | ZZT(Ω) @IZT |
ZZK(Ω) @IZT |
IZK(mA) | Tj [max] (°C) |
|---|---|---|---|---|---|---|---|---|---|---|
| 1N4738A | Single | 1 | 8.2 | 31 | 0.01 | 6 | 4.5 | 700 | 0.5 | 200 |
| Part Number 1N4738A | Number of Functions Single | PD(W) 1 | VZ[Nom](V) 8.2 | IZT(mA) 31 |
IR (mA) [max] @VR 0.01 |
VR(V) 6 |
ZZT(Ω) @IZT 4.5 |
ZZK(Ω) @IZT 700 |
IZK(mA) 0.5 |
Tj [max] (°C) 200 |
Packing Information
| Part Number | Package Type | Packing Specification | Component Weight (g) | Packing Info |
|---|---|---|---|---|
| 1N4738A | DO-41G |
DO-41G
|
0.3090 | Tape : 5K/Reel, 20K/Ctn; |
Environmental Information
Download
| MTBF | FIT |
|---|---|
| 27479.27 | 4.2 |
ECN/PCN
| ECN/PCN No# | Title | Issued Date | |
|---|---|---|---|
| 070103 | Pb(Lead) Free Plating Conversion |
|
07/01/2003 |
