Super Fast Recovery Rectifiers | Status : Preferred

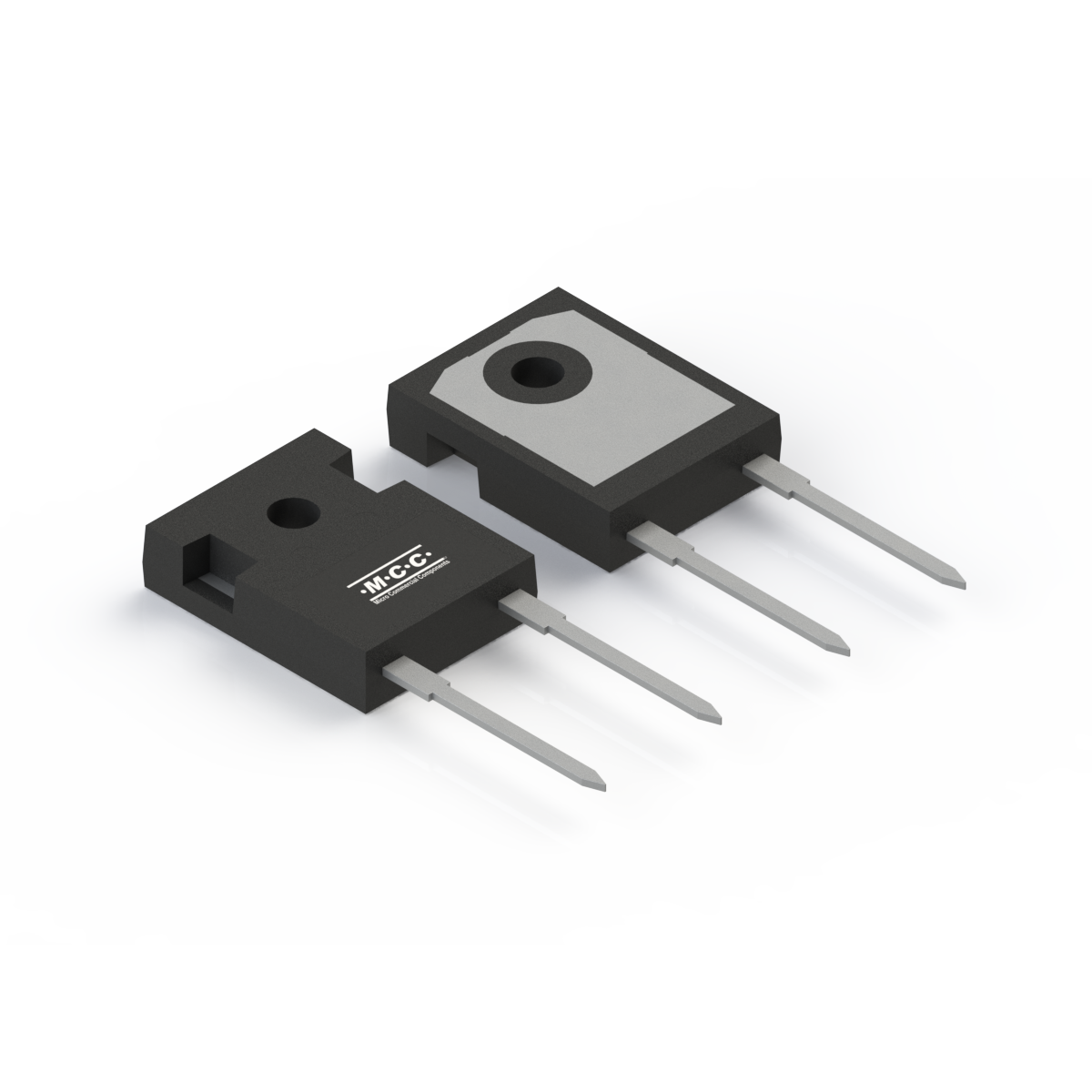

MURZ75120P

  • Package Type:TO-247AD
  • Packing Info:Bulk:30pcs/Tube,360pcs/Box,1.8Kpcs/Carton; Bulk:30pcs/Tube,360pcs/Box,1.8Kpcs/Carton;
  • Category:Super Fast Recovery Rectifiers
  • MPN:MURZ75120P-BP
Check Stock Add To Cart
Datasheet ECAD Model Reliability Data

Product Detail

Part Number Number of Functions IF(AV)(A) VRWM (V) VF
(V) [max]@IF(A)		 IR (uA)  [max] @
VR		 TRR (μs) IFSM (A) IF(A) VR (V) Tj [max]
(°C)
MURZ75120P Single 75 1200 1.85 10 0.22 500 75 1200 150
Part Number MURZ75120P Number of Functions Single IF(AV)(A)  75 VRWM (V)  1200 VF
(V) [max]@IF(A)  1.85 		IR (uA)  [max] @
VR  10 		TRR (μs)  0.22 IFSM (A)  500 IF(A)  75 VR (V)  1200 Tj [max]
(°C)  150

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code
MURZ75120P TO-247AD TO-247AD 4.0500 MURZ75120P

Environmental Information link icon

Reliability Report Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Environmental Compliance Download
Tin Whisker Test Report MSL MTBF FIT
Tin Whisker Test Report N/A 0.00 0.0
