Super Fast Recovery Rectifiers | Status : Preferred

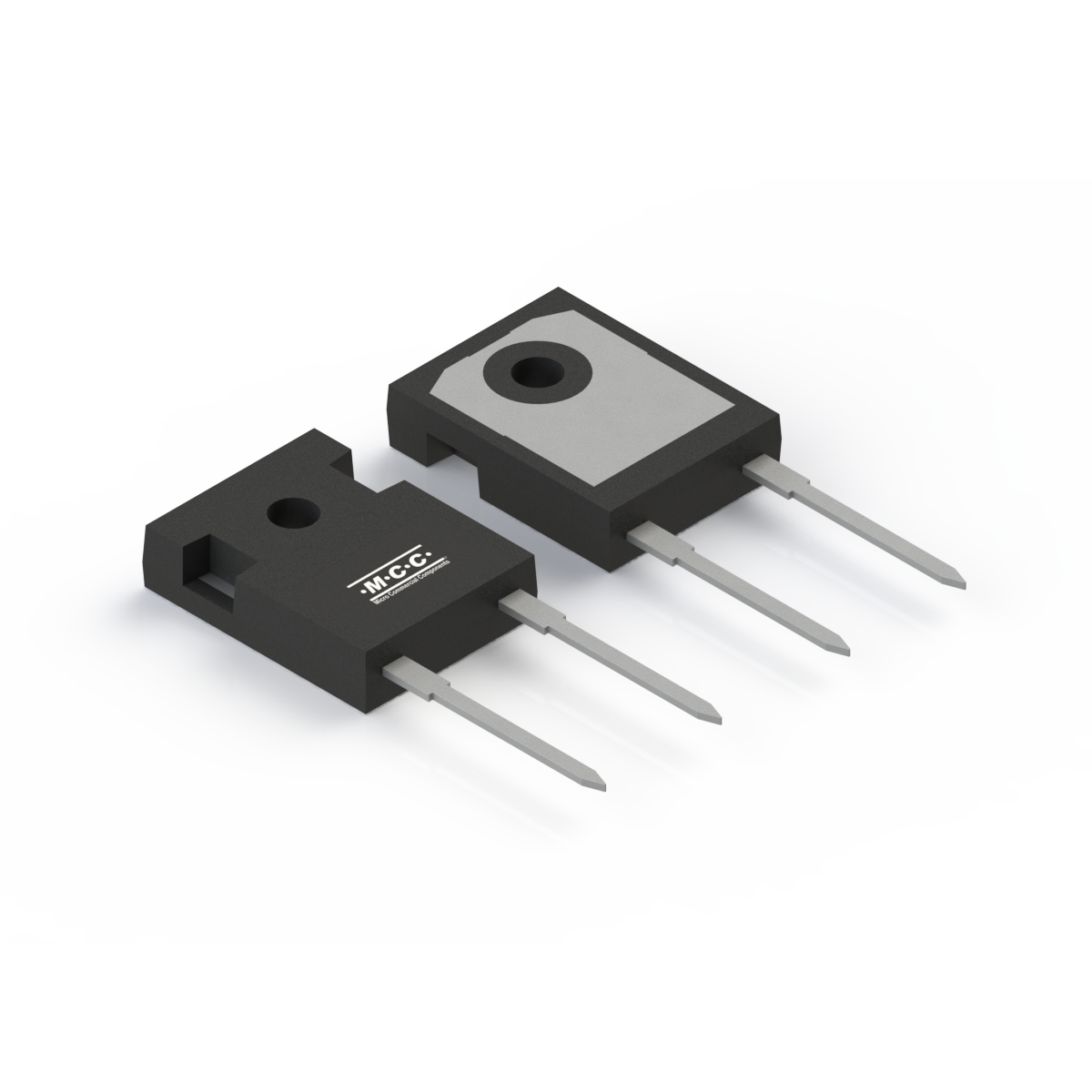

MURZ50120P

  • Package Type:TO-247AD
  • Packing Info:Bulk:30pcs/Tube,360pcs/Box,1.8Kpcs/Carton; Bulk:30pcs/Tube,360pcs/Box,1.8Kpcs/Carton;
  • Category:Super Fast Recovery Rectifiers
  • MPN:MURZ50120P-BP
Check Stock Add To Cart
Datasheet ECAD Model Reliability Data

Product Detail

Part Number Number of Functions IF(AV)(A) VRWM (V) VF
(V) [max]@IF(A)		 IR (uA)  [max] @
VR		 TRR (μs) IFSM (A) IF(A) VR (V) Tj [max]
(°C)
MURZ50120P Single 50 1200 1.85 10 0.2 400 50 1200 150
Part Number MURZ50120P Number of Functions Single IF(AV)(A)  50 VRWM (V)  1200 VF
(V) [max]@IF(A)  1.85 		IR (uA)  [max] @
VR  10 		TRR (μs)  0.2 IFSM (A)  400 IF(A)  50 VR (V)  1200 Tj [max]
(°C)  150

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code
MURZ50120P TO-247AD TO-247AD 4.0500 MURZ50120P

Environmental Information link icon

Reliability Report Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Environmental Compliance Download
Tin Whisker Test Report MSL MTBF FIT
Tin Whisker Test Report N/A 0.00 0.0
