Super Fast Recovery Rectifiers | Status : Active

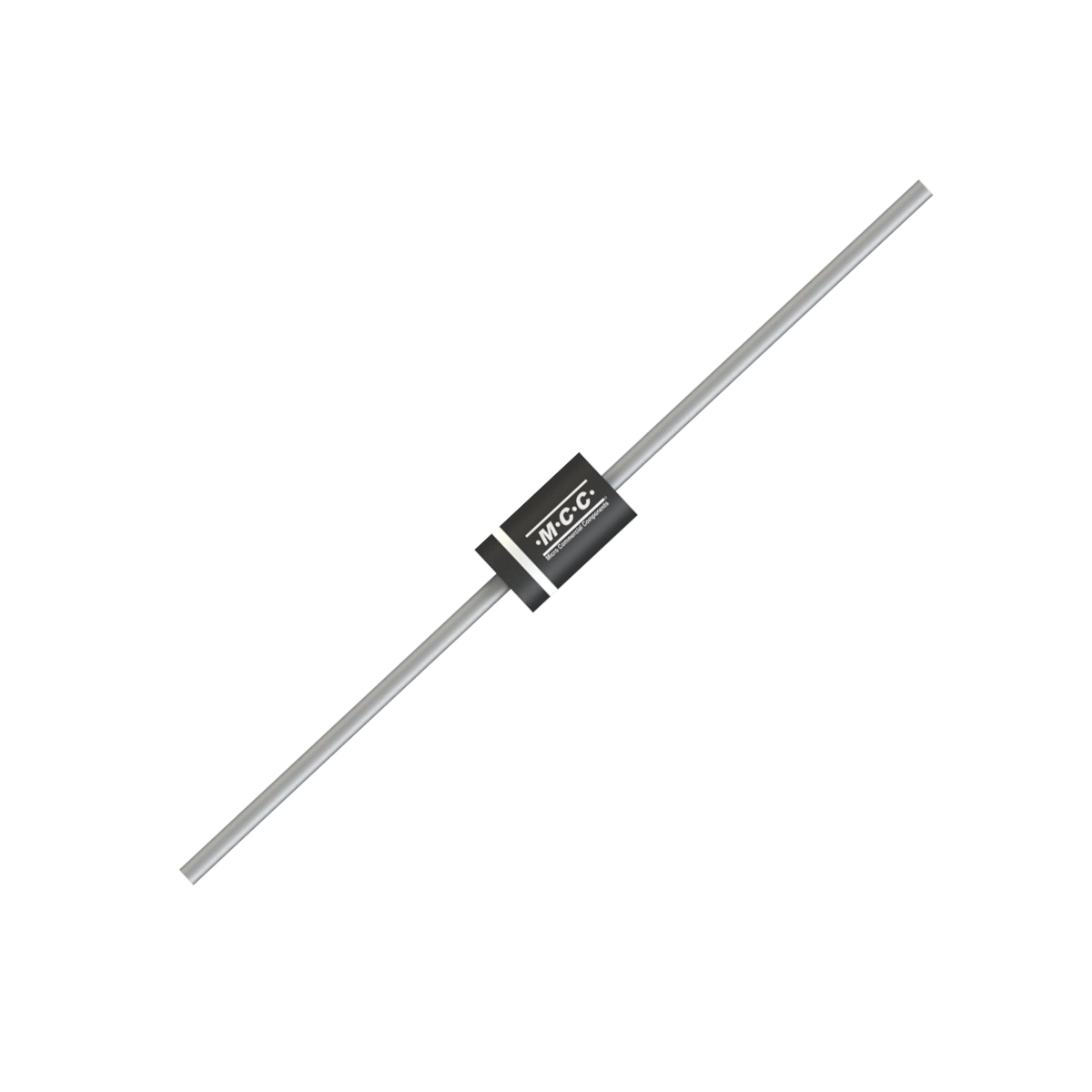

SF56G

  • Package Type:DO-201AD
  • Packing Info:Tape : 1.2K/Reel, 4.8K/Ctn; Bulk: 500pcs/Box, 12K/Ctn; T/B: 1.2K/Ammo Box, 12K/Ctn.;
  • Category:Super Fast Recovery Rectifiers
  • MPN:SF56G-TP, SF56G-AP, SF56G-BP
Check Stock Add To Cart
Datasheet ECAD Model Reliability Data

Product Detail

Part Number Number of Functions IF(AV)(A) VRWM (V) VF
(V) [max]@IF(A)		 IR (uA)  [max] @
VR		 TRR (μs) IFSM (A) IF(A) VR (V) Tj [max]
(°C)
SF56G Single 5 400 1.27 5 0.035 150 5 400 150
Part Number SF56G Number of Functions Single IF(AV)(A)  5 VRWM (V)  400 VF
(V) [max]@IF(A)  1.27 		IR (uA)  [max] @
VR  5 		TRR (μs)  0.035 IFSM (A)  150 IF(A)  5 VR (V)  400 Tj [max]
(°C)  150

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code Packing Info
SF56G DO-201AD DO-201AD 1.1410 SF56GP Tape : 1.2K/Reel, 4.8K/Ctn;

Environmental Information link icon

Reliability Report Material Composition Data Sheet Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Configuration image Download Environmental Compliance Download
Tin Whisker Test Report MSL MTBF FIT
Tin Whisker Test Report N/A 19984.92 5.7
