Super Fast Recovery Rectifiers | Status : Active

MURS865FA

Check Stock Add To Cart
Datasheet ECAD Model Reliability Data

Product Detail

Part Number Number of Functions IF(AV)(A) VRWM (V) VF
(V) [max]@IF(A)		 IR (uA)  [max] @
VR		 TRR (μs) IFSM (A) IF(A) VR (V) Tj [max]
(°C)
MURS865FA Single 8 650 1.6 5 0.035 75 8 650 175
Part Number MURS865FA Number of Functions Single IF(AV)(A)  8 VRWM (V)  650 VF
(V) [max]@IF(A)  1.6 		IR (uA)  [max] @
VR  5 		TRR (μs)  0.035 IFSM (A)  75 IF(A)  8 VR (V)  650 Tj [max]
(°C)  175

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code

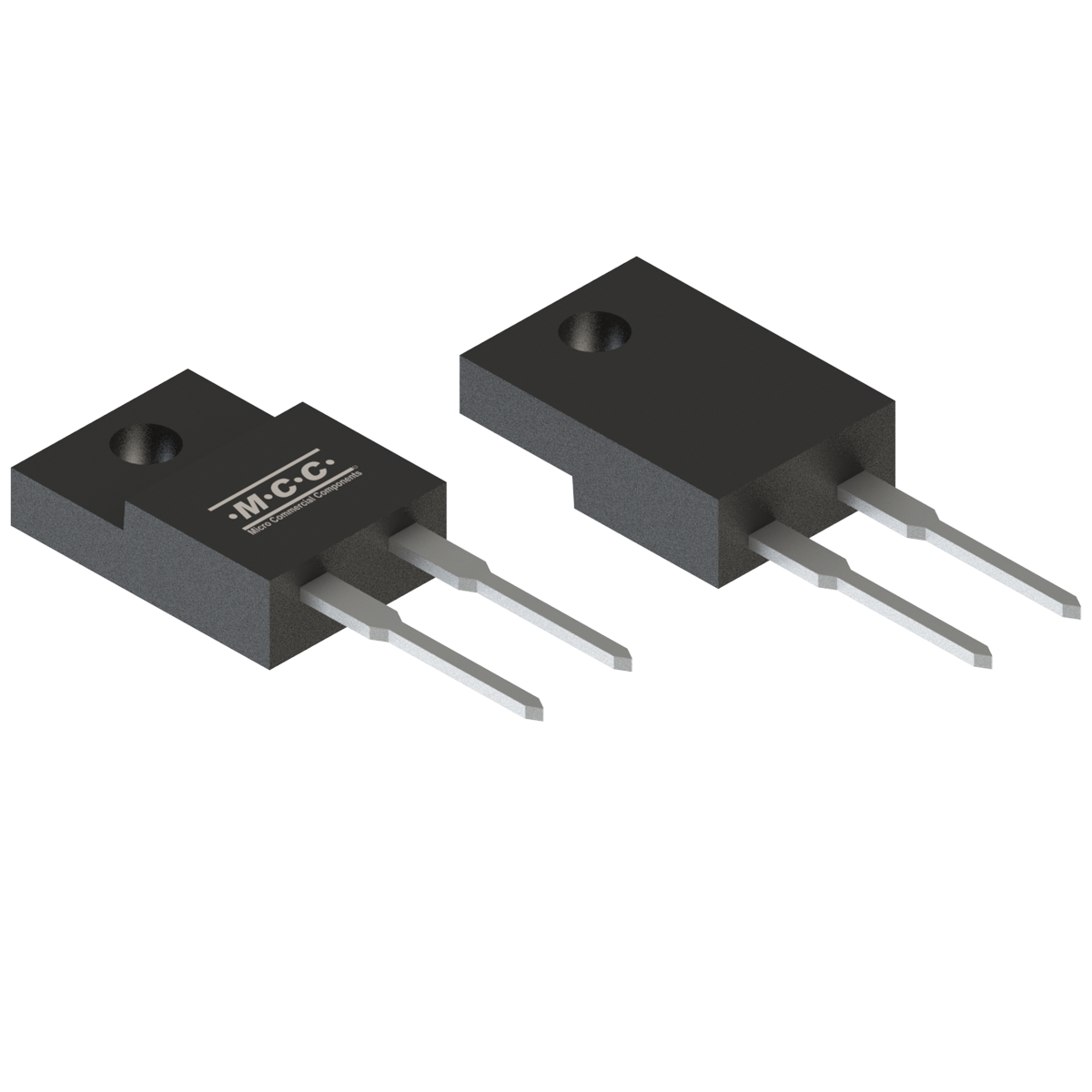

MURS865FA ITO-220AC ITO-220AC 1.3930 MURS865FA

Environmental Information link icon

Reliability Report Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Environmental Compliance Download
Tin Whisker Test Report MSL MTBF FIT
Tin Whisker Test Report N/A 0.00 0.0
