Super Fast Recovery Rectifiers | Status :
Obsoleted
MUR3060PT
Last Time Ship Date:07/18/2025
EOL Notice

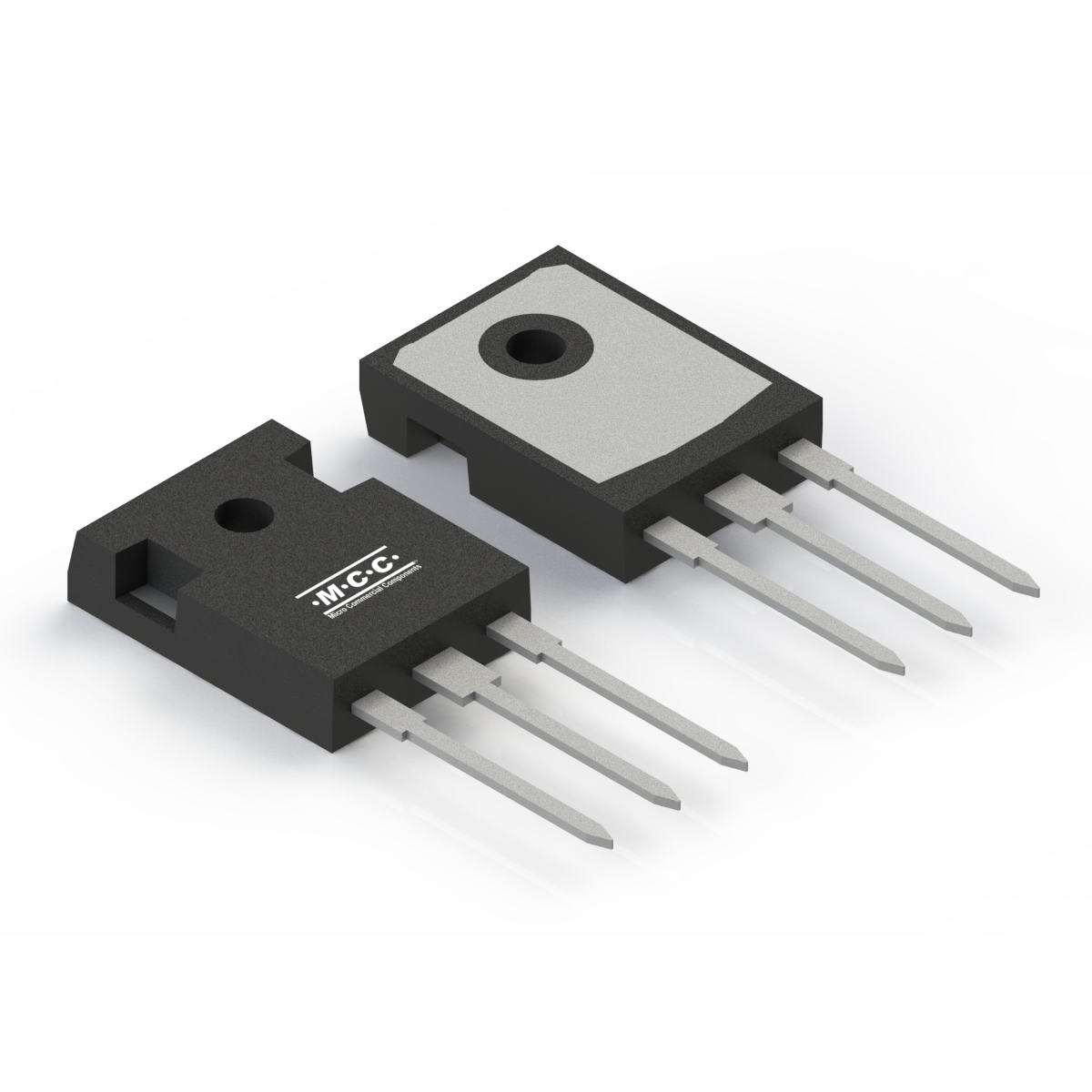

- Package Type:TO-247
- Packing Info:Bulk : 360pcs/Box, 1.8K/Ctn;
- Category:Super Fast Recovery Rectifiers
- MPN:MUR3060PT-BP
Product Detail
| Part Number | Number of Functions | IF(AV)(A) | VRWM (V) | VF (V) [max]@IF(A) |
IR (uA) [max] @ VR |
TRR (μs) | IFSM (A) | IF(A) | VR (V) | Tj [max] (°C) |
|---|---|---|---|---|---|---|---|---|---|---|
| MUR3060PT | Dual | 30 | 600 | 1.55 | 10 | 0.04 | 180 | 15 | 600 | 150 |
| Part Number MUR3060PT | Number of Functions Dual | IF(AV)(A) 30 | VRWM (V) 600 |
VF (V) [max]@IF(A) 1.55 |
IR (uA) [max] @ VR 10 |
TRR (μs) 0.04 | IFSM (A) 180 | IF(A) 15 | VR (V) 600 |
Tj [max] (°C) 150 |
Packing Information
Environmental Information
Download
| Tin Whisker Test Report | MSL | MTBF | FIT |
|---|---|---|---|
|
N/A | 17486.81 | 6.5 |
ECN/PCN
| ECN/PCN No# | Title | Issued Date | |
|---|---|---|---|
| 070103 | Pb(Lead) Free Plating Conversion |
|
07/01/2003 |
