Super Fast Recovery Rectifiers | Status :
Obsoleted

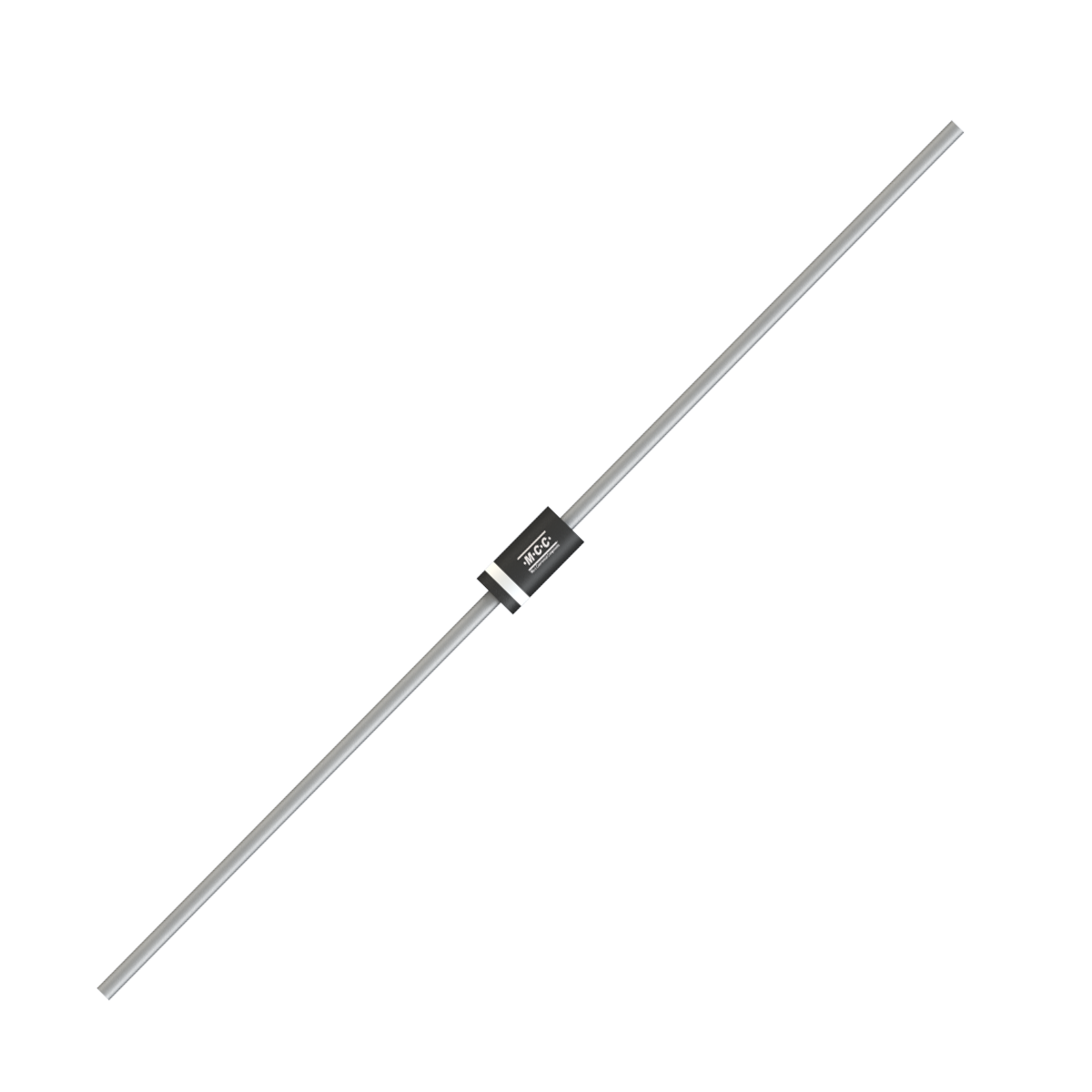

MUR1100
Last Time Ship Date:N/A
EOL Notice
- Package Type:DO-41
- Packing Info:Tape : 5K/Reel, 20K/Ctn; Bulk: 1K/Box, 50K/Ctn; T/B: 5K/Ammo Box, 50K/Ctn.;
- Category:Super Fast Recovery Rectifiers
Product Detail
| Part Number | Number of Functions | IF(AV)(A) | VRWM (V) | VF (V) [max]@IF(A) |
IR (uA) [max] @ VR |
TRR (μs) | IFSM (A) | IF(A) | VR (V) | Tj [max] (°C) |
|---|---|---|---|---|---|---|---|---|---|---|
| MUR1100 | Single | 1 | 1000 | 1.75 | 5 | 0.075 | 35 | 1 | 1000 |
| Part Number MUR1100 | Number of Functions Single | IF(AV)(A) 1 | VRWM (V) 1000 |
VF (V) [max]@IF(A) 1.75 |
IR (uA) [max] @ VR 5 |
TRR (μs) 0.075 | IFSM (A) 35 | IF(A) 1 | VR (V) 1000 |
Tj [max] (°C) |
Packing Information
Environmental Information
Download
| Tin Whisker Test Report | MTBF | FIT |
|---|---|---|
|
0.00 | 0.0 |
ECN/PCN
| ECN/PCN No# | Title | Issued Date | |
|---|---|---|---|
| 070103 | Pb(Lead) Free Plating Conversion |
|
07/01/2003 |
