Super Fast Recovery Rectifiers | Status :
Obsoleted
ER1K
Last Time Ship Date:02-01-2019
EOL Notice

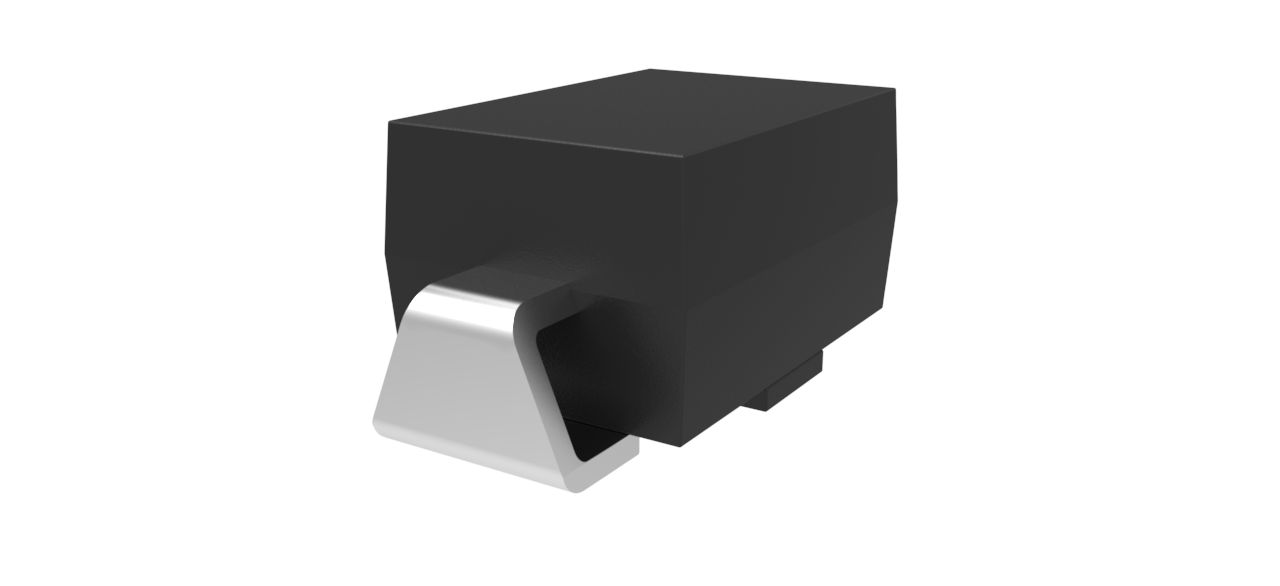

- Package Type:HSMB
- Packing Info:Tape : 3K/Reel, 48K/Ctn
- Category:Super Fast Recovery Rectifiers
Product Detail
| Part Number | Number of Functions | IF(AV)(A) | VRWM (V) | VF (V) [max]@IF(A) |
IR (uA) [max] @ VR |
TRR (μs) | IFSM (A) | IF(A) | VR (V) | Tj [max] (°C) |
|---|---|---|---|---|---|---|---|---|---|---|
| ER1K | Single | 1 | 800 | 1.7 | 5 | 0.075 | 30 | 1 | 800 |
| Part Number ER1K | Number of Functions Single | IF(AV)(A) 1 | VRWM (V) 800 |
VF (V) [max]@IF(A) 1.7 |
IR (uA) [max] @ VR 5 |
TRR (μs) 0.075 | IFSM (A) 30 | IF(A) 1 | VR (V) 800 |
Tj [max] (°C) |
Packing Information
Environmental Information
Download
| MTBF | FIT |
|---|---|
| 0.00 | 0.0 |
ECN/PCN
| ECN/PCN No# | Title | Issued Date | |
|---|---|---|---|
| 070103 | Pb(Lead) Free Plating Conversion |
|
07/01/2003 |
