Standard Recovery Rectifiers | Status : Obsoleted

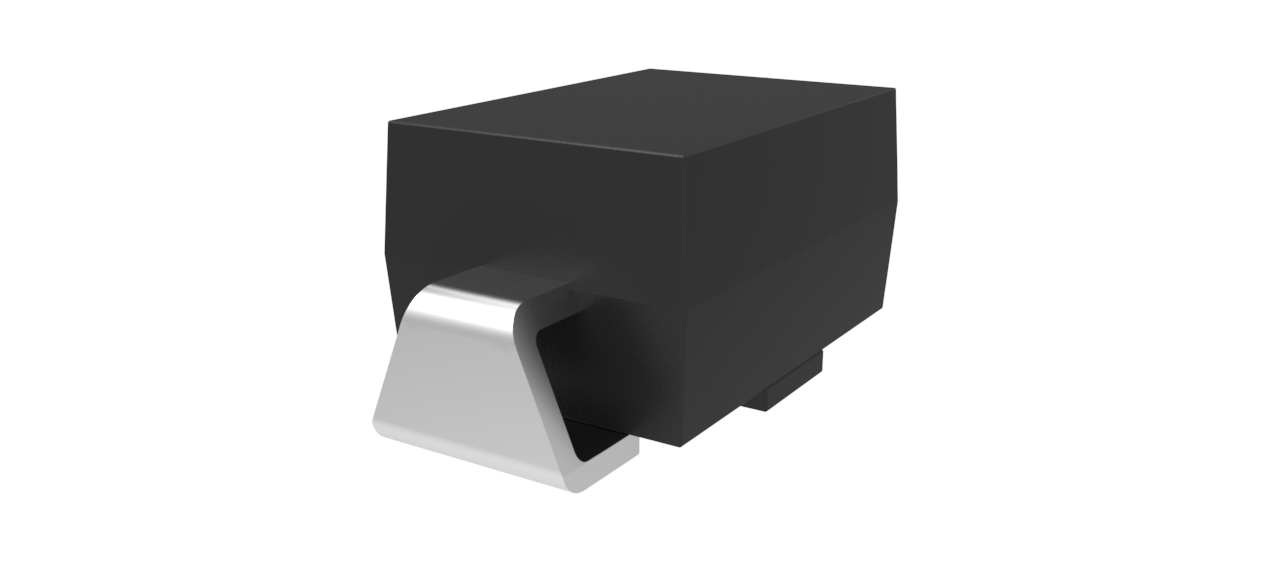

S2M

Last Time Ship Date:07-01-2018 EOL Notice
Check Stock Add To Cart
Datasheet ECAD Model Reliability Data

Product Detail

Part Number Number of Functions IF(AV)(A) VRWM (V) VF
(V) [max]@IF(A)		 IR (uA)  [max] @
VR		 TRR (μs) IFSM (A) IF(A) VR (V) Tj [max]
(°C)
S2M Single 2 1000 1.15 10 2 50 2 1000
Part Number S2M Number of Functions Single IF(AV)(A)  2 VRWM (V)  1000 VF
(V) [max]@IF(A)  1.15 		IR (uA)  [max] @
VR  10 		TRR (μs)  2 IFSM (A)  50 IF(A)  2 VR (V)  1000 Tj [max]
(°C)

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code Packing Info
S2M HSMB HSMB 0.1270 S2M Tape : 3K/Reel, 48K/Ctn;

Environmental Information link icon

Reliability Report Material Composition Data Sheet Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Configuration image Download Environmental Compliance Download
MTBF FIT
0.00 0.0

ECN/PCN

ECN/PCN No# Title PDF Issued Date
070103 Pb(Lead) Free Plating Conversion PDF 07/01/2003
