Standard Recovery Rectifiers | Status :
Obsoleted

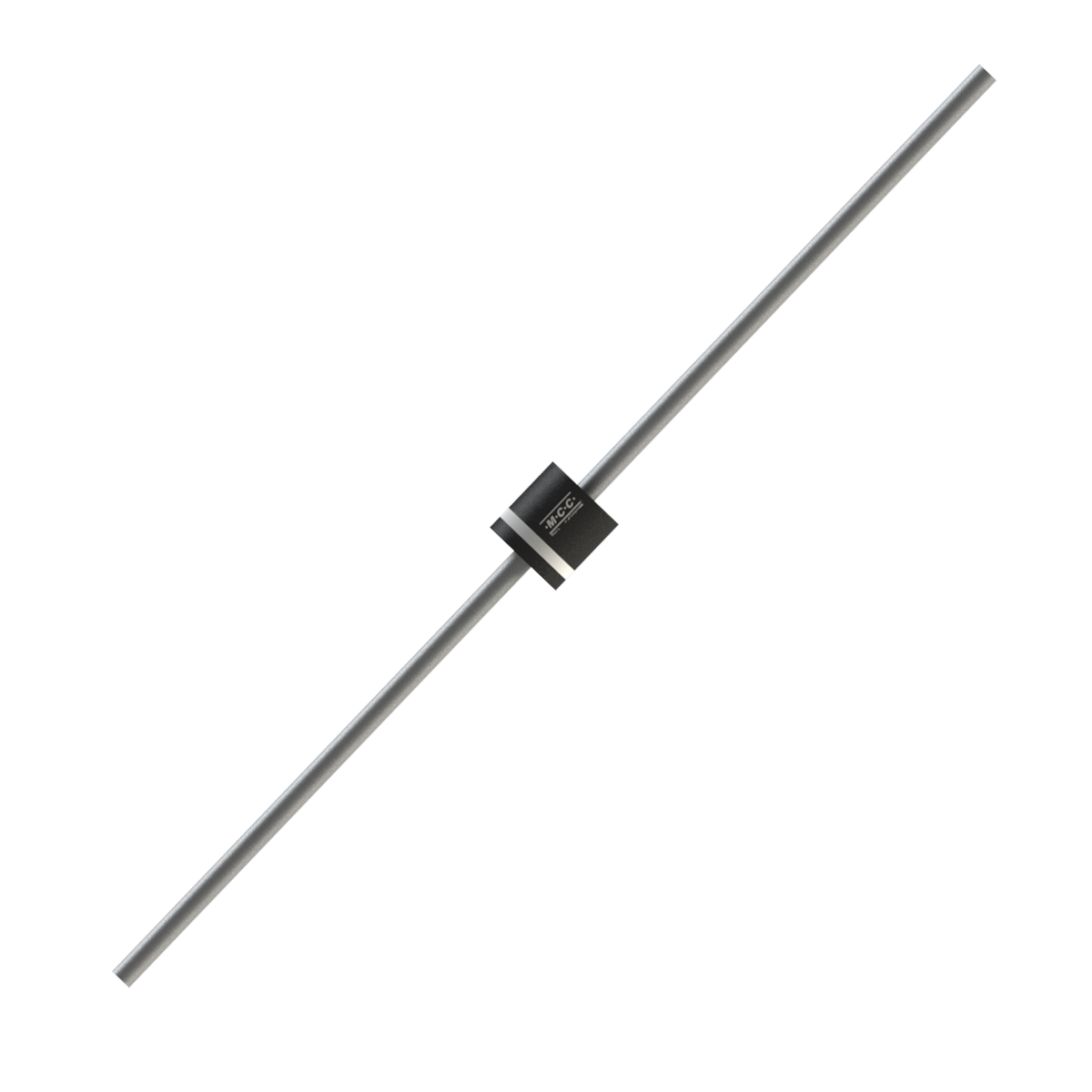

RL256
Last Time Ship Date:11/05/2016
EOL Notice
- Package Type:R-3
- Packing Info:Tape : 3K/Reel, 12K/Ctn; Bulk: 500pcs/Box, 25K/Ctn;
- Category:Standard Recovery Rectifiers
Product Detail
| Part Number | Number of Functions | IF(AV)(A) | VRWM (V) | VF (V) [max]@IF(A) |
IR (uA) [max] @ VR |
TRR (μs) | IFSM (A) | IF(A) | VR (V) | Tj [max] (°C) |
|---|---|---|---|---|---|---|---|---|---|---|
| RL256 | Single | 2.5 | 800 | 1 | 5 | 150 | 2.5 | 800 |
| Part Number RL256 | Number of Functions Single | IF(AV)(A) 2.5 | VRWM (V) 800 |
VF (V) [max]@IF(A) 1 |
IR (uA) [max] @ VR 5 |
TRR (μs) | IFSM (A) 150 | IF(A) 2.5 | VR (V) 800 |
Tj [max] (°C) |
Packing Information
Environmental Information
Download
| Tin Whisker Test Report | MTBF | FIT |
|---|---|---|
|
0.00 | 0.0 |
ECN/PCN
| ECN/PCN No# | Title | Issued Date | |
|---|---|---|---|
| 070103 | Pb(Lead) Free Plating Conversion |
|
07/01/2003 |
