Standard Recovery Rectifiers | Status : Active

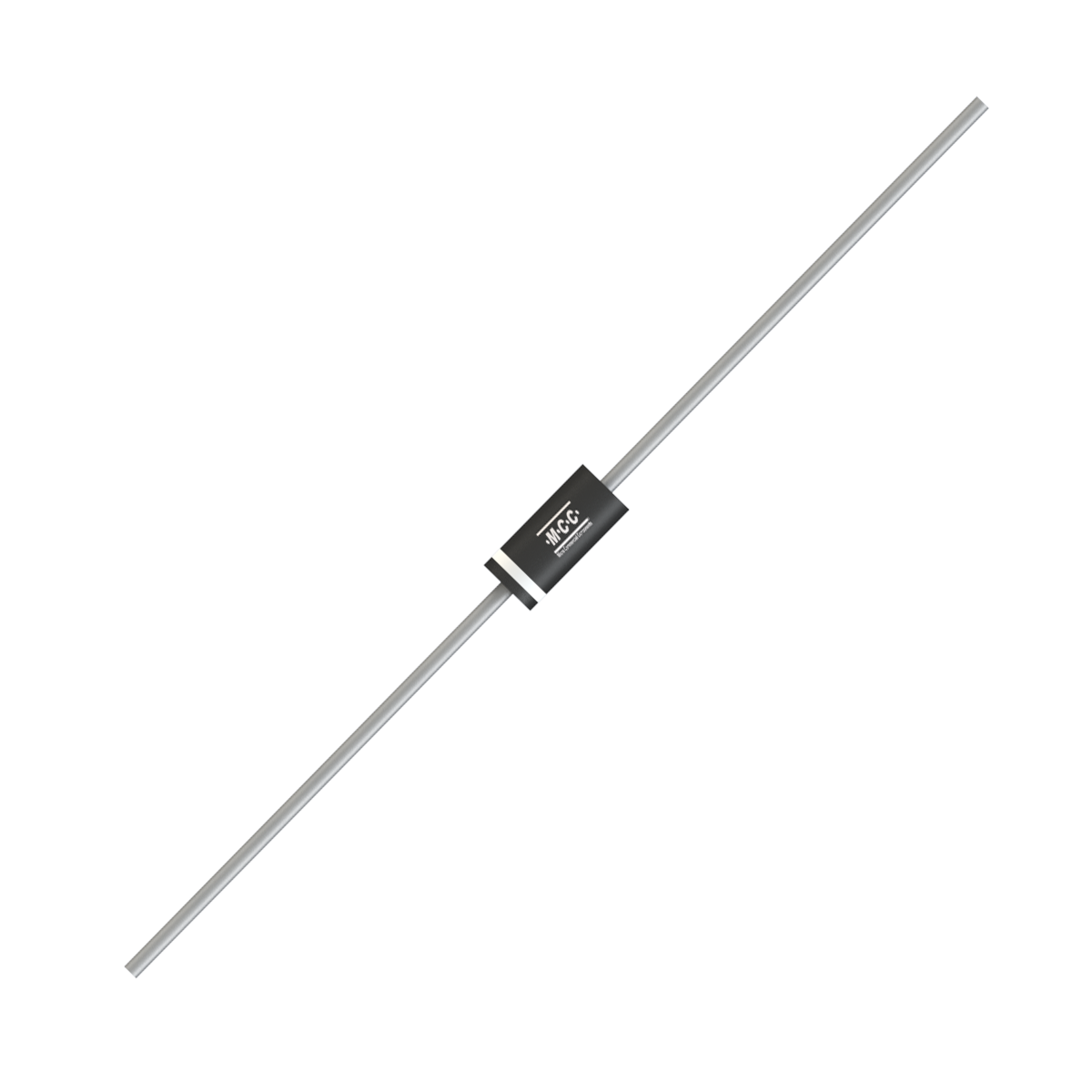

RL207GP

  • Package Type:DO-15
  • Packing Info:Tape : 4K/Reel, 16K/Ctn; Bulk: 500pcs/Box, 25K/Ctn;
  • Category:Standard Recovery Rectifiers
  • MPN:RL207GP-TP, RL207GP-AP, RL207GP-BP
Check Stock Add To Cart
Datasheet ECAD Model Reliability Data

Product Detail

Part Number Number of Functions IF(AV)(A) VRWM (V) VF
(V) [max]@IF(A)		 IR (uA)  [max] @
VR		 TRR (μs) IFSM (A) IF(A) VR (V) Tj [max]
(°C)
RL207GP Single 2 1000 1 5 70 2 1000 150
Part Number RL207GP Number of Functions Single IF(AV)(A)  2 VRWM (V)  1000 VF
(V) [max]@IF(A)  1 		IR (uA)  [max] @
VR  5 		TRR (μs)   IFSM (A)  70 IF(A)  2 VR (V)  1000 Tj [max]
(°C)  150

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code Packing Info
RL207GP DO-15 DO-15 0.3880 RL207GP Tape : 4K/Reel, 16K/Ctn;

Environmental Information link icon

Reliability Report Material Composition Data Sheet Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Configuration image Download Environmental Compliance Download
Tin Whisker Test Report MSL MTBF FIT
Tin Whisker Test Report N/A 19984.92 5.7

ECN/PCN

ECN/PCN No# Title PDF Issued Date
070103 Pb(Lead) Free Plating Conversion PDF 07/01/2003
