Standard Recovery Rectifiers | Status : NRND

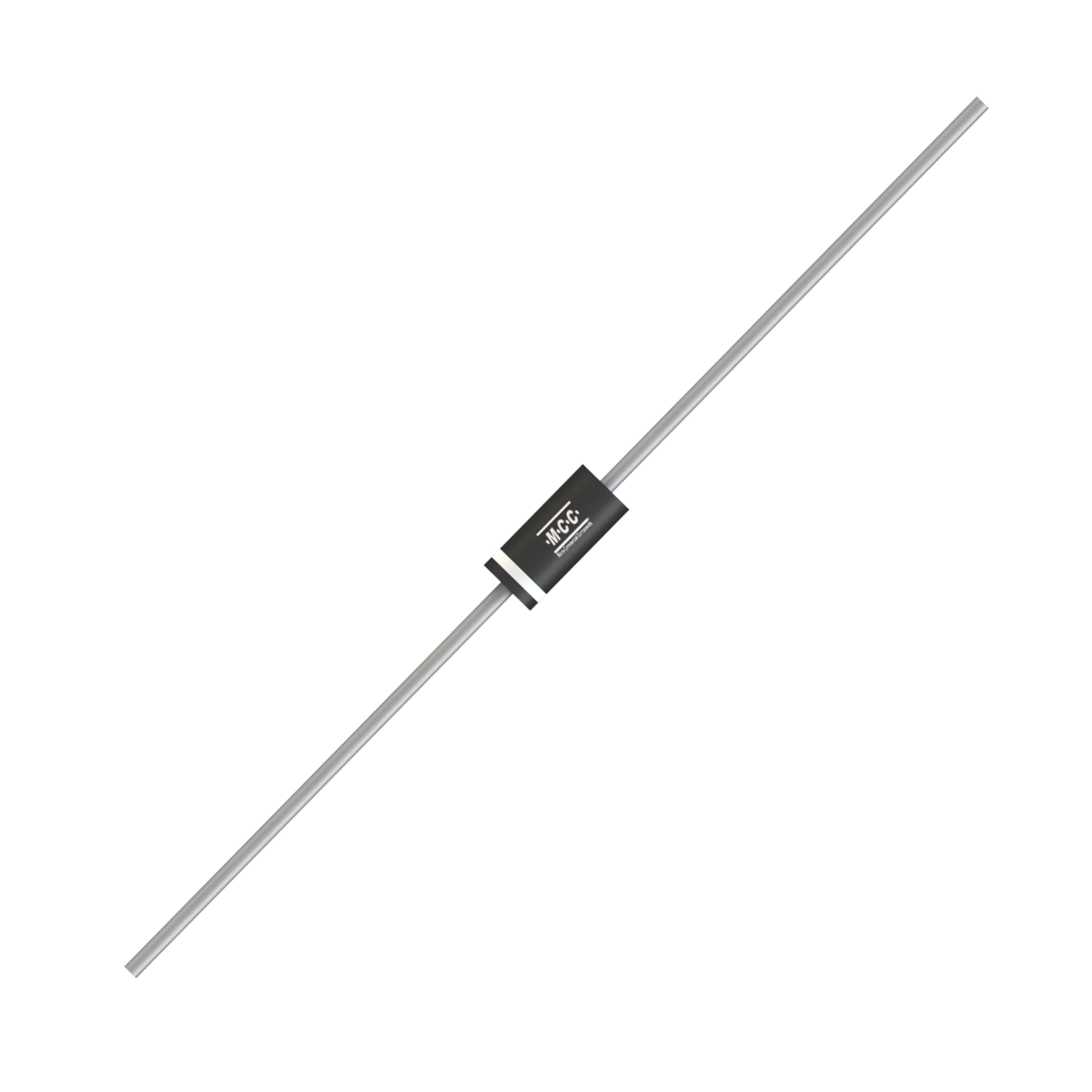

RL205

  • Package Type:DO-15
  • Packing Info:Tape : 4K/Reel, 16K/Ctn; Bulk: 500pcs/Box, 25K/Ctn
  • Category:Standard Recovery Rectifiers
  • MPN:RL205-TP, RL205-AP, RL205-BP
Check Stock Add To Cart
Datasheet ECAD Model Reliability Data

Product Detail

Part Number Number of Functions IF(AV)(A) VRWM (V) VF
(V) [max]@IF(A)		 IR (uA)  [max] @
VR		 TRR (μs) IFSM (A) IF(A) VR (V) Tj [max]
(°C)
RL205 Single 2 600 1 5 60 2 600 150
Part Number RL205 Number of Functions Single IF(AV)(A)  2 VRWM (V)  600 VF
(V) [max]@IF(A)  1 		IR (uA)  [max] @
VR  5 		TRR (μs)   IFSM (A)  60 IF(A)  2 VR (V)  600 Tj [max]
(°C)  150

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code Packing Info
RL205 DO-15 DO-15 0.3880 RL205 Tape : 4K/Reel, 16K/Ctn;

Environmental Information link icon

Reliability Report Material Composition Data Sheet Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Configuration image Download Environmental Compliance Download
Tin Whisker Test Report MSL MTBF FIT
Tin Whisker Test Report N/A 0.00 0.0

ECN/PCN

ECN/PCN No# Title PDF Issued Date
123117-2 MCC Will Use Glass Passivated Chip For RL10X and RL20X Series Rectifiers PDF 12/31/2017
070103 Pb(Lead) Free Plating Conversion PDF 07/01/2003

Similar Recommendations

Part Number Category Package Type Status Datasheet
1N4005 STANDARD RECOVERY RECTIFIERS DO-41 Active Datasheet
1N5406GP STANDARD RECOVERY RECTIFIERS DO-201AD Active Datasheet
S3J STANDARD RECOVERY RECTIFIERS SMC Active Datasheet
RL105 STANDARD RECOVERY RECTIFIERS A-405 Active Datasheet
