Standard Recovery Rectifiers | Status : NRND

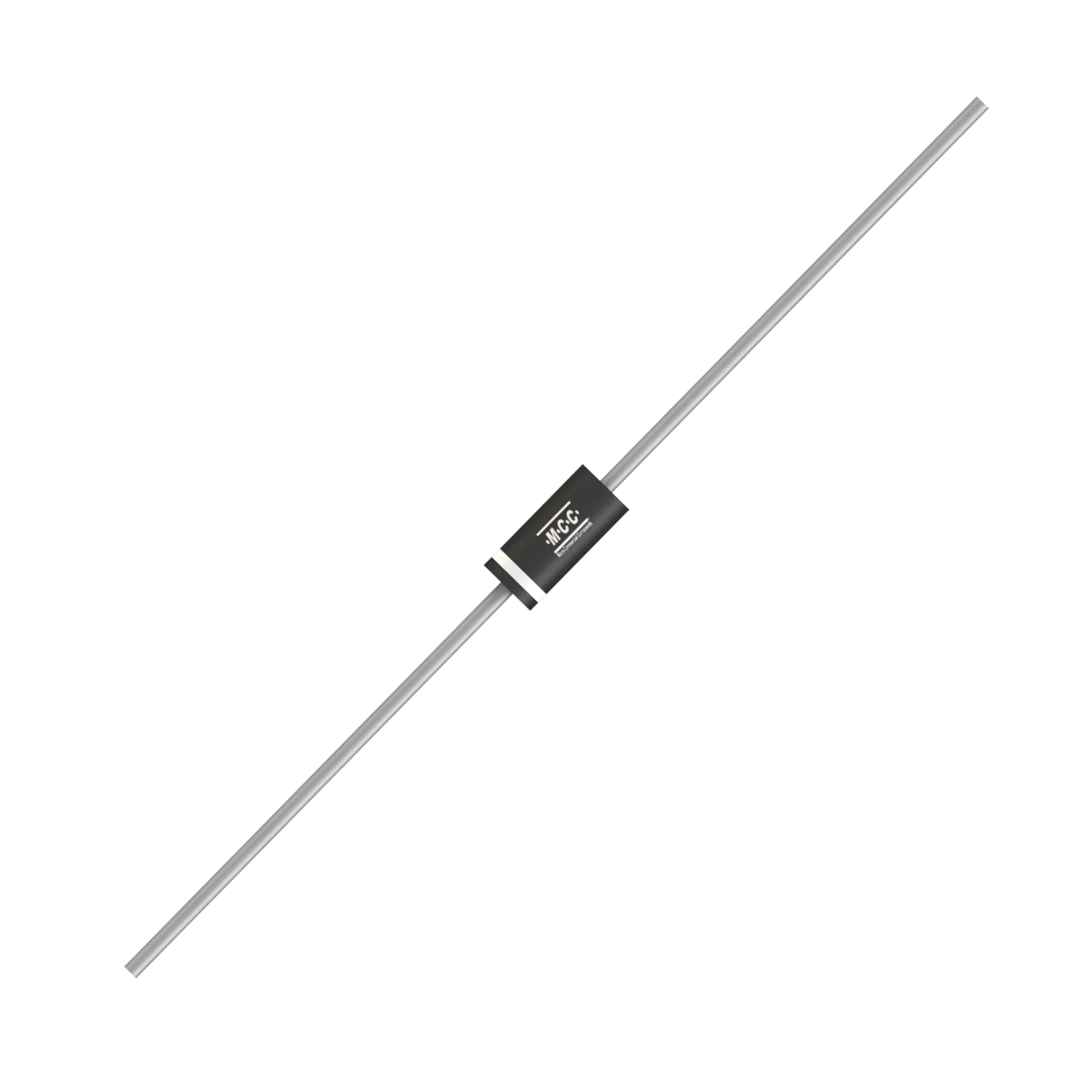

RL202

  • Package Type:DO-15
  • Packing Info:Tape : 4K/Reel, 16K/Ctn; Bulk: 500pcs/Box, 25K/Ctn
  • Category:Standard Recovery Rectifiers
  • MPN:RL202-TP, RL202-AP, RL202-BP
Check Stock Add To Cart
Datasheet ECAD Model Reliability Data

Product Detail

Part Number Number of Functions IF(AV)(A) VRWM (V) VF
(V) [max]@IF(A)		 IR (uA)  [max] @
VR		 TRR (μs) IFSM (A) IF(A) VR (V) Tj [max]
(°C)
RL202 Single 2 100 1 5 60 2 100 150
Part Number RL202 Number of Functions Single IF(AV)(A)  2 VRWM (V)  100 VF
(V) [max]@IF(A)  1 		IR (uA)  [max] @
VR  5 		TRR (μs)   IFSM (A)  60 IF(A)  2 VR (V)  100 Tj [max]
(°C)  150

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code Packing Info
RL202 DO-15 DO-15 0.3880 RL202 Tape : 4K/Reel, 16K/Ctn;

Environmental Information link icon

Reliability Report Material Composition Data Sheet Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Configuration image Download Environmental Compliance Download
Tin Whisker Test Report MSL MTBF FIT
Tin Whisker Test Report N/A 0.00 0.0

ECN/PCN

ECN/PCN No# Title PDF Issued Date
123117-2 MCC Will Use Glass Passivated Chip For RL10X and RL20X Series Rectifiers PDF 12/31/2017
070103 Pb(Lead) Free Plating Conversion PDF 07/01/2003
