Standard Recovery Rectifiers | Status : Active

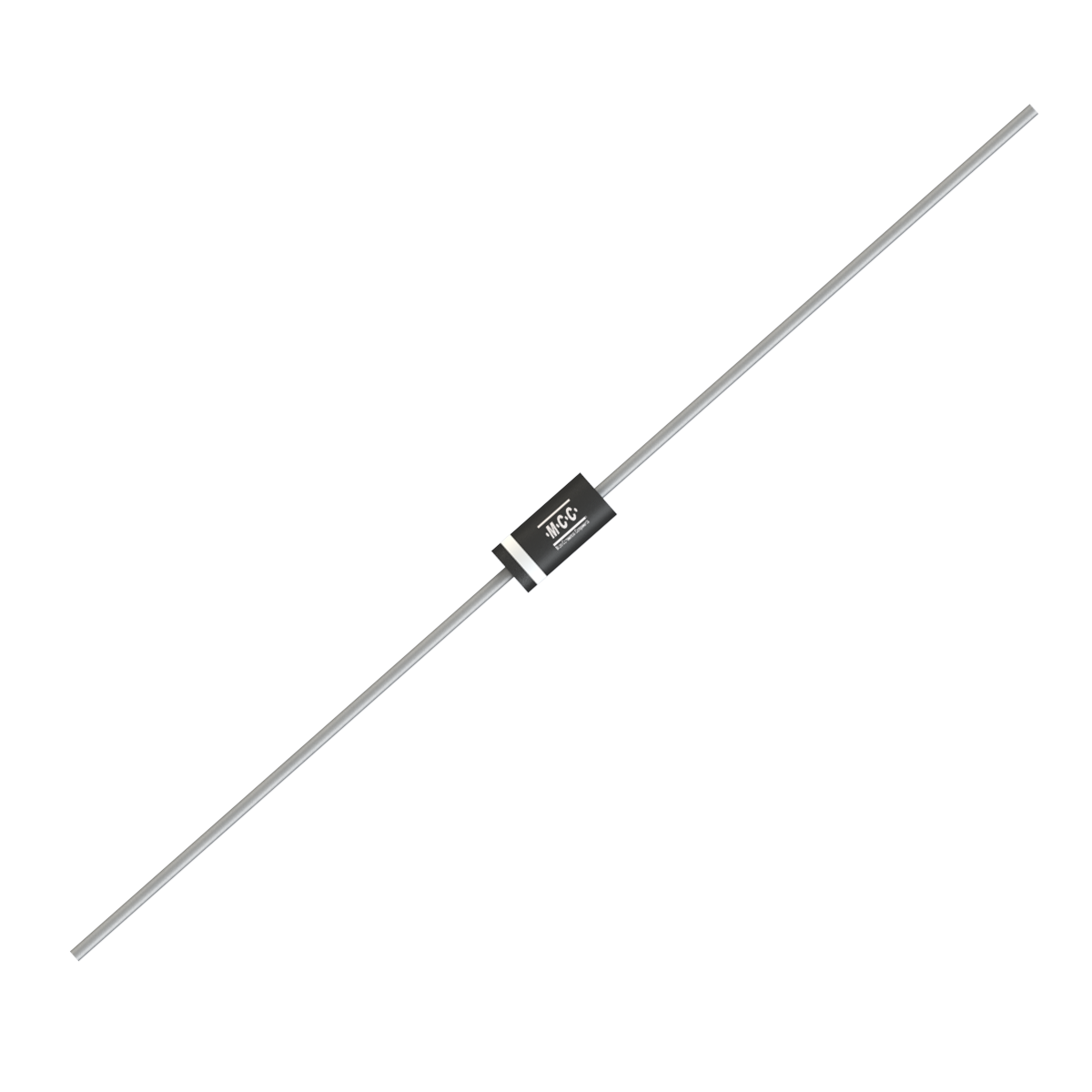

RL106GP

Check Stock Add To Cart
Datasheet ECAD Model Reliability Data

Product Detail

Part Number Number of Functions IF(AV)(A) VRWM (V) VF
(V) [max]@IF(A)		 IR (uA)  [max] @
VR		 TRR (μs) IFSM (A) IF(A) VR (V) Tj [max]
(°C)
RL106GP Single 1 800 1.1 5 30 1 800 150
Part Number RL106GP Number of Functions Single IF(AV)(A)  1 VRWM (V)  800 VF
(V) [max]@IF(A)  1.1 		IR (uA)  [max] @
VR  5 		TRR (μs)   IFSM (A)  30 IF(A)  1 VR (V)  800 Tj [max]
(°C)  150

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code Packing Info
RL106GP A-405 A-405 0.2210 RL106 Tape : 5K/Reel, 20K/Ctn;

Environmental Information link icon

Reliability Report Material Composition Data Sheet Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Configuration image Download Environmental Compliance Download
Tin Whisker Test Report MSL MTBF FIT
Tin Whisker Test Report N/A 22483.04 5.1

ECN/PCN

ECN/PCN No# Title PDF Issued Date
070110 Panasert and Avisert Insulation Coating Color Change PDF 10/01/2010
070103 Pb(Lead) Free Plating Conversion PDF 07/01/2003
