Standard Recovery Rectifiers | Status :
Obsoleted
DL4002
Last Time Ship Date:10-01-2012
EOL Notice

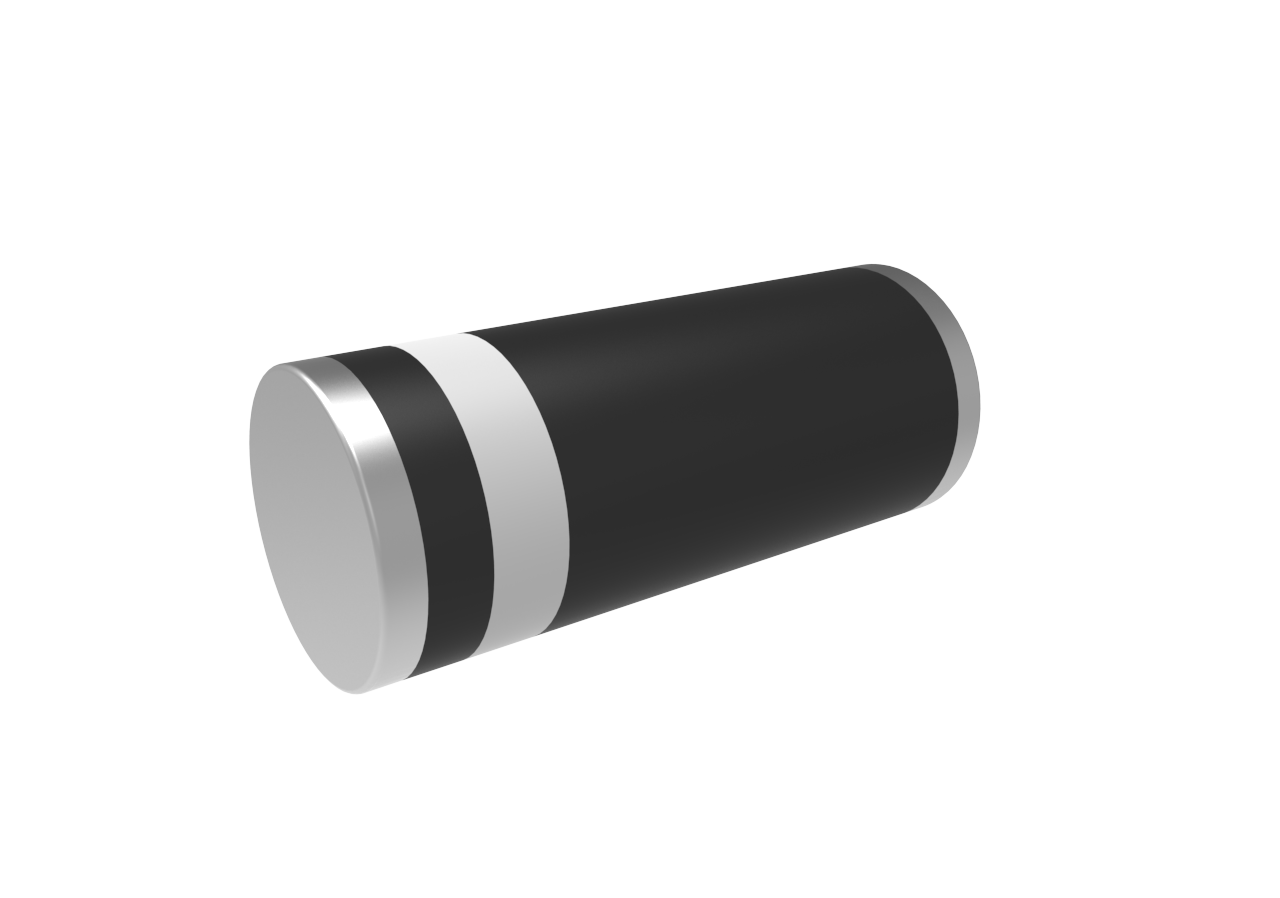

- Package Type:MELF
- Packing Info:Tape :5K/Reel , 80K/Ctn;
- Category:Standard Recovery Rectifiers
Product Detail
| Part Number | Number of Functions | IF(AV)(A) | VRWM (V) | VF (V) [max]@IF(A) |
IR (uA) [max] @ VR |
TRR (μs) | IFSM (A) | IF(A) | VR (V) | Tj [max] (°C) |
|---|---|---|---|---|---|---|---|---|---|---|
| DL4002 | Single | 1 | 100 | 1.1 | 5 | 30 | 1 | 100 |
| Part Number DL4002 | Number of Functions Single | IF(AV)(A) 1 | VRWM (V) 100 |
VF (V) [max]@IF(A) 1.1 |
IR (uA) [max] @ VR 5 |
TRR (μs) | IFSM (A) 30 | IF(A) 1 | VR (V) 100 |
Tj [max] (°C) |
Packing Information
| Part Number | Package Type | Packing Specification | Component Weight (g) | Packing Info |
|---|---|---|---|---|
| DL4002 | MELF |
MELF
|
0.1250 | Tape :5K/Reel , 80K/Ctn; |
Environmental Information
Download
| MTBF | FIT |
|---|---|
| 0.00 | 0.0 |
ECN/PCN
| ECN/PCN No# | Title | Issued Date | |
|---|---|---|---|
| 070103 | Pb(Lead) Free Plating Conversion |
|
07/01/2003 |
