Standard Recovery Rectifiers | Status : NRND

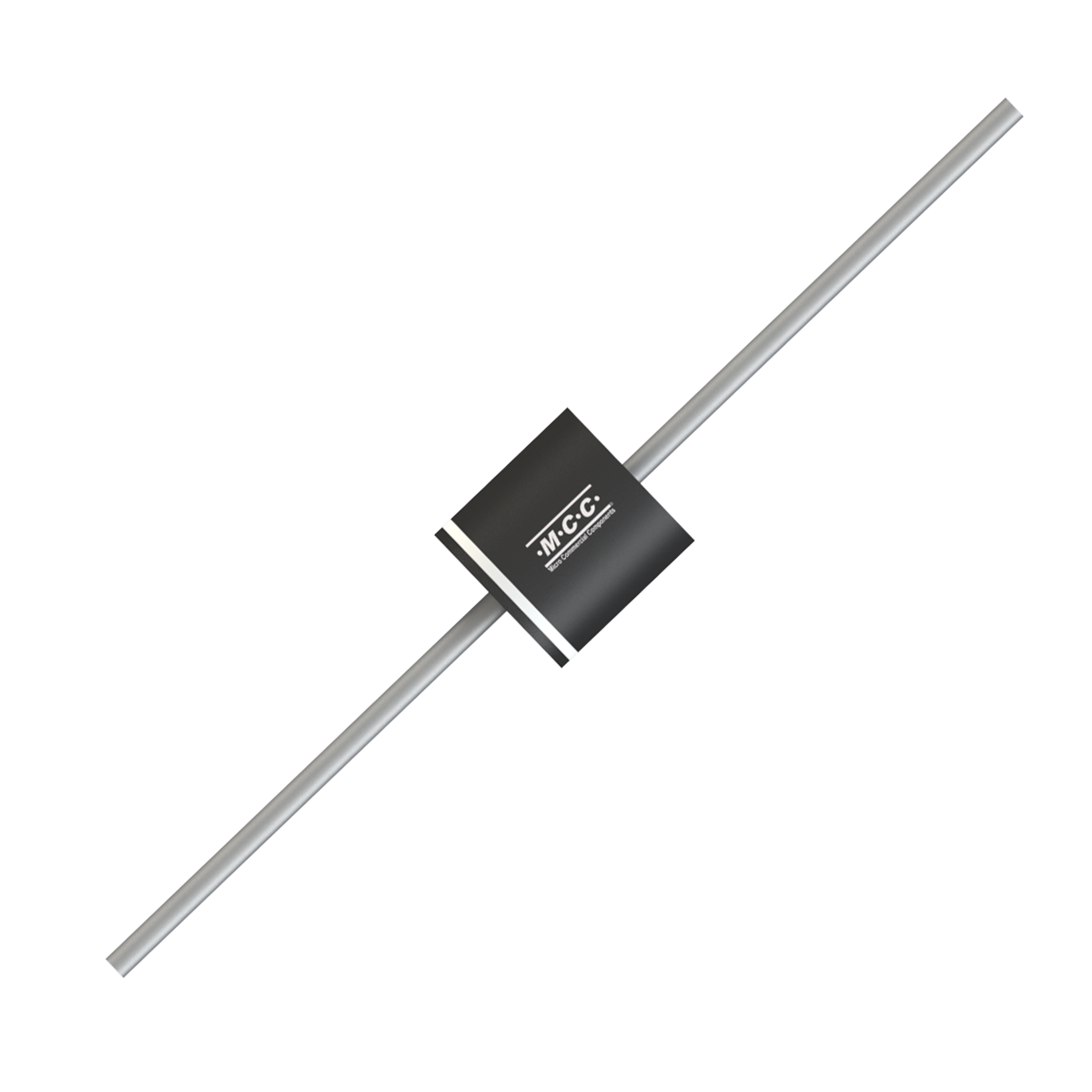

6A10

  • Package Type:R-6
  • Packing Info:Tape&Reel : 500Pcs/Reel; Bulk: 200Pcs/Box; Ammo Packing: 450Pcs/AmmoBox;
  • Category:Standard Recovery Rectifiers
  • MPN:6A10-TP
Check Stock Add To Cart
Datasheet ECAD Model Reliability Data

Product Detail

Part Number Number of Functions IF(AV)(A) VRWM (V) VF
(V) [max]@IF(A)		 IR (uA)  [max] @
VR		 TRR (μs) IFSM (A) IF(A) VR (V) Tj [max]
(°C)
6A10 Single 6 1000 0.95 10 400 6 1000 125
Part Number 6A10 Number of Functions Single IF(AV)(A)  6 VRWM (V)  1000 VF
(V) [max]@IF(A)  0.95 		IR (uA)  [max] @
VR  10 		TRR (μs)   IFSM (A)  400 IF(A)  6 VR (V)  1000 Tj [max]
(°C)  125

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code Packing Info
6A10 R-6 R-6 2.0670 6A10 Tape&Reel : 500Pcs/Reel;

Environmental Information link icon

Reliability Report Material Composition Data Sheet Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Configuration image Download Environmental Compliance Download
Tin Whisker Test Report MSL MTBF FIT
Tin Whisker Test Report 1 0.00 0.0

ECN/PCN

ECN/PCN No# Title PDF Issued Date
070103 Pb(Lead) Free Plating Conversion PDF 07/01/2003
