Standard Recovery Rectifiers | Status :
Obsoleted
30S5
Last Time Ship Date:12-6-2008
EOL Notice

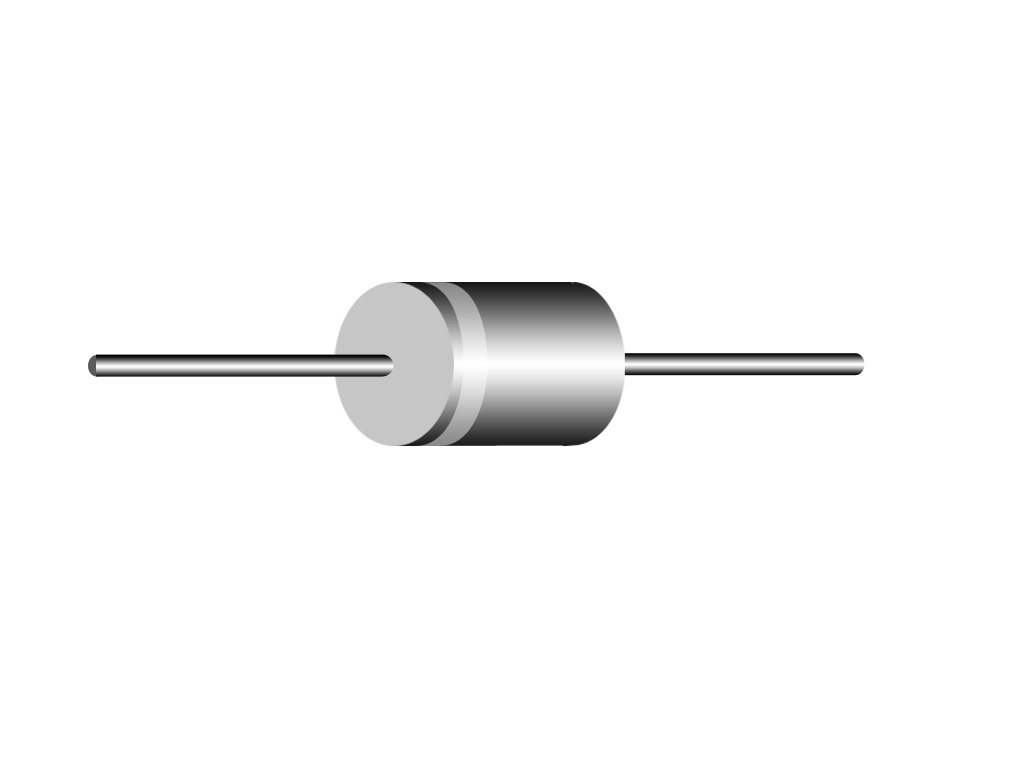

- Package Type:T-18
- Packing Info:Bulk: 100pcs/Bag ,;
- Category:Standard Recovery Rectifiers
Product Detail
| Part Number | Number of Functions | IF(AV)(A) | VRWM (V) | VF (V) [max]@IF(A) |
IR (uA) [max] @ VR |
TRR (μs) | IFSM (A) | IF(A) | VR (V) | Tj [max] (°C) |
|---|---|---|---|---|---|---|---|---|---|---|
| 30S5 | Single | 3 | 500 | 1 | 5 | 80 | 3 | 500 |
| Part Number 30S5 | Number of Functions Single | IF(AV)(A) 3 | VRWM (V) 500 |
VF (V) [max]@IF(A) 1 |
IR (uA) [max] @ VR 5 |
TRR (μs) | IFSM (A) 80 | IF(A) 3 | VR (V) 500 |
Tj [max] (°C) |
Packing Information
| Part Number | Package Type | Packing Specification | Component Weight (g) |
|---|---|---|---|
| 30S5 | T-18 |
T-18
|
0.0000 |
Environmental Information
Download
| MTBF | FIT |
|---|---|
| 27479.27 | 4.2 |
ECN/PCN
| ECN/PCN No# | Title | Issued Date | |
|---|---|---|---|
| 070103 | Pb(Lead) Free Plating Conversion |
|
07/01/2003 |
