Standard Recovery Rectifiers | Status : Active

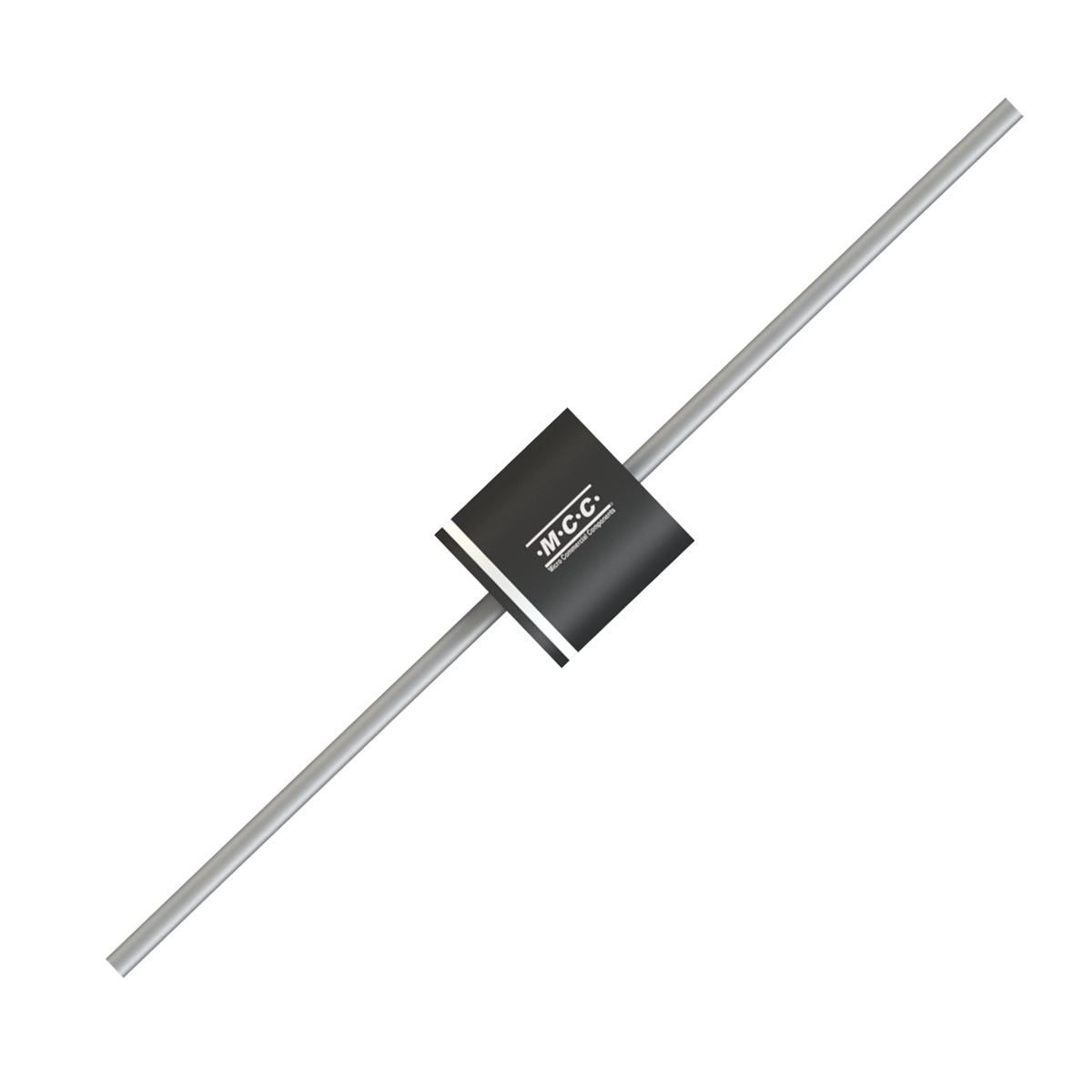

10A05GP

Package Type:R-6
Packing Info:Tape&Reel : 500Pcs/Reel; Bulk: 200Pcs/Box; Ammo Packing: 450Pcs/AmmoBox
Category:Standard Recovery Rectifiers
MPN:10A05GP-TP

Part Number	Number of Functions	I_F(AV)(A)	V_RWM (V)	V_F (V) [max]@I_F(A)	I_R (uA) [max] @ V_R	T_RR (μs)	I_FSM (A)	I_F(A)	V_R (V)	Tj [max] (°C)
10A05GP	Single	10	600	1	5		300	10	600	150

Part Number 10A05GP

Number of Functions Single

I_F(AV)(A) 10

V_RWM (V) 600

V_F
(V) [max]@I_F(A) 1

I_R (uA) [max] @
V_R 5

T_RR (μs)

I_FSM (A) 300

I_F(A) 10

V_R (V) 600

Tj [max]
(°C) 150

Part Number	Package Type	Packing Specification	Component Weight (g)	Marking Code	Packing Info
10A05GP	R-6	R-6	2.0670	10A05GP	Tape&Reel : 500Pcs/Reel;

Reliability Report	Material Composition Data Sheet	Soldering Profile	Environmental Compliance
Download	Download	Download	Download

Tin Whisker Test Report	MSL	MTBF	FIT
	N/A	27479.27	4.2

ECN/PCN No#	Title	PDF	Issued Date
070103	Pb(Lead) Free Plating Conversion		07/01/2003
