Standard Recovery Rectifiers | Status : NRND

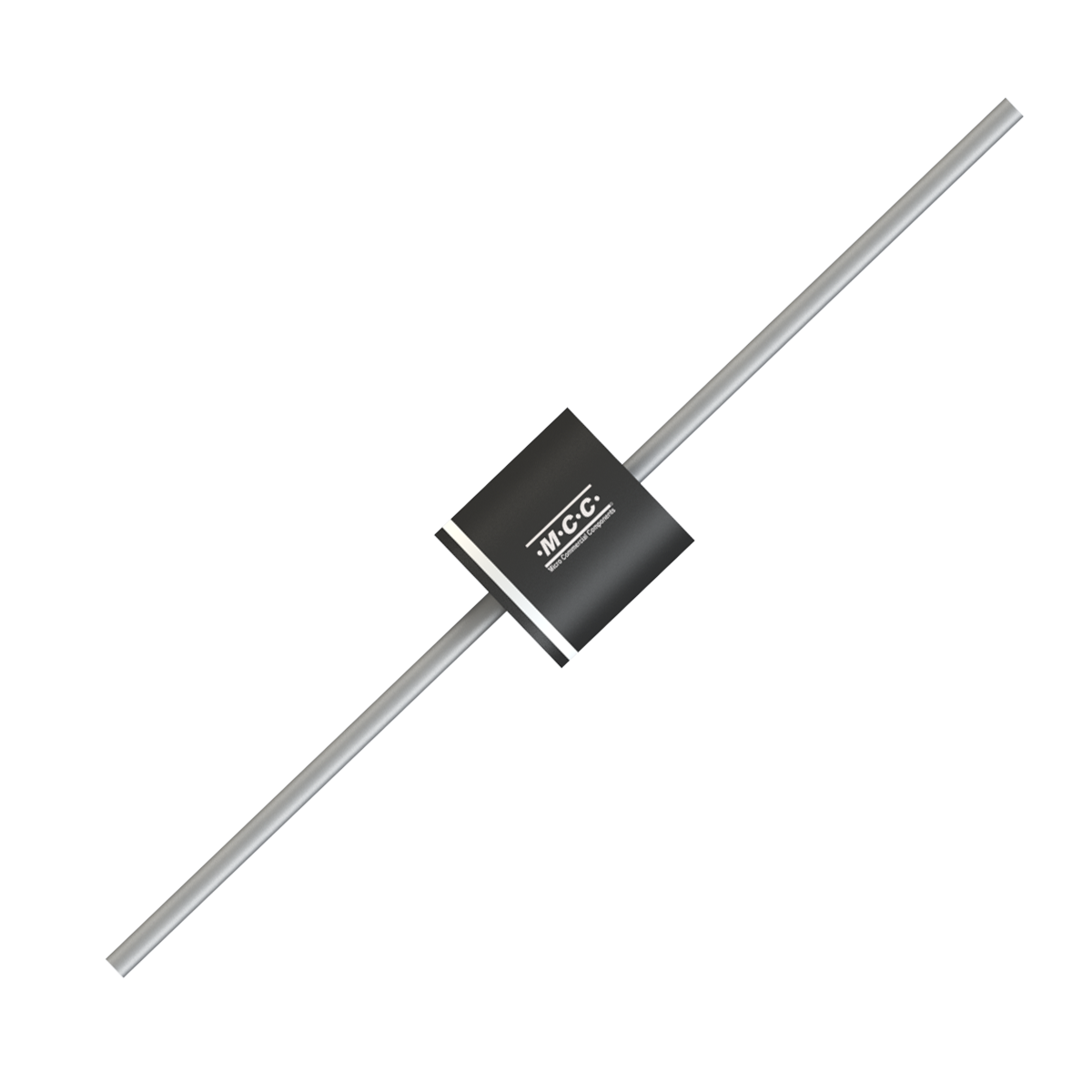

10A01

  • Package Type:R-6
  • Packing Info:Tape&Reel : 500Pcs/Reel; Bulk: 200Pcs/Box; Ammo Packing: 450Pcs/AmmoBox;
  • Category:Standard Recovery Rectifiers
  • MPN:10A01-TP, 10A01-AP, 10A01-BP
Check Stock Add To Cart
Datasheet ECAD Model Reliability Data

Product Detail

Part Number Number of Functions IF(AV)(A) VRWM (V) VF
(V) [max]@IF(A)		 IR (uA)  [max] @
VR		 TRR (μs) IFSM (A) IF(A) VR (V) Tj [max]
(°C)
10A01 Single 10 50 1 10 400 10 50 150
Part Number 10A01 Number of Functions Single IF(AV)(A)  10 VRWM (V)  50 VF
(V) [max]@IF(A)  1 		IR (uA)  [max] @
VR  10 		TRR (μs)   IFSM (A)  400 IF(A)  10 VR (V)  50 Tj [max]
(°C)  150

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code Packing Info
10A01 R-6 R-6 2.0670 10A01 Tape&Reel : 500Pcs/Reel;

Environmental Information link icon

Reliability Report Material Composition Data Sheet Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Configuration image Download Environmental Compliance Download
Tin Whisker Test Report MSL MTBF FIT
Tin Whisker Test Report N/A 0.00 0.0

ECN/PCN

ECN/PCN No# Title PDF Issued Date
070103 Pb(Lead) Free Plating Conversion PDF 07/01/2003
