Schottky Barrier Rectifiers | Status :
Obsoleted

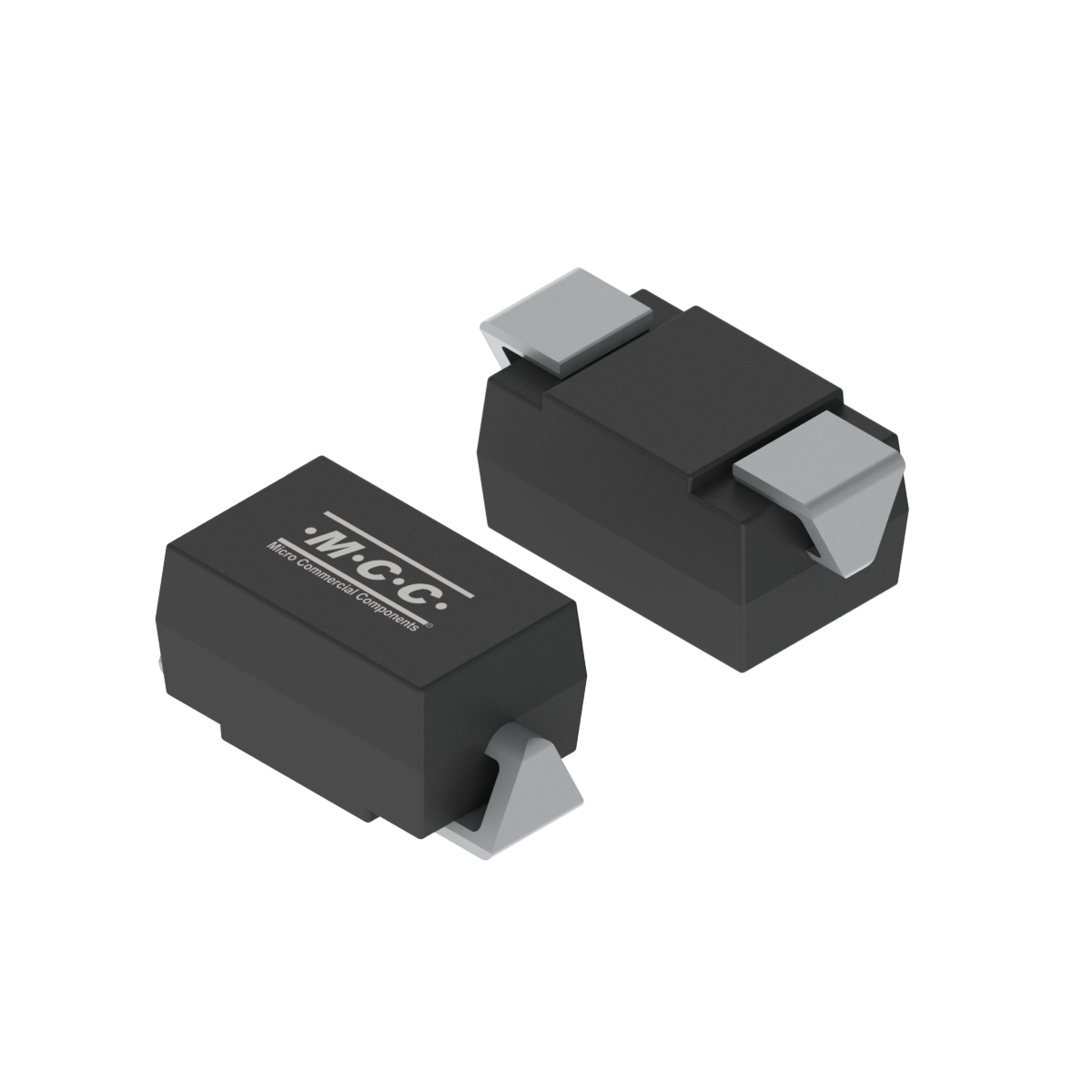

SS16E
Last Time Ship Date:05/16/2026
EOL Notice
- Package Type:SMAE
- Packing Info:Tape&Reel: 6Kpcs/Reel;
- Category:Schottky Barrier Rectifiers
- MPN:SS16E-TP, SS16E-TP-HF
Product Detail
| Part Number | Number of Functions | IF(AV)(A) | VRWM (V) | VF (V) [max]@IF(A) |
IR (uA) [max] @ VR |
IFSM (A) | VR (V) | IF(A) | Tj [max] (°C) |
|---|---|---|---|---|---|---|---|---|---|
| SS16E | Single | 1 | 60 | 0.7 | 50 | 30 | 60 | 1 |
| Part Number SS16E | Number of Functions Single | IF(AV)(A) 1 | VRWM (V) 60 |
VF (V) [max]@IF(A) 0.7 |
IR (uA) [max] @ VR 50 |
IFSM (A) 30 | VR (V) 60 | IF(A) 1 |
Tj [max] (°C) |
Packing Information
Environmental Information
Download
| Tin Whisker Test Report | MSL | MTBF | FIT |
|---|---|---|---|
|
1 | 22483.04 | 5.1 |
ECN/PCN
| ECN/PCN No# | Title | Issued Date | |
|---|---|---|---|
| 060821-1 | MCC Will Change The Lead Frame of SMAE/HSMA/HSMB Package Products. |
|
06/08/2021 |
| 070103 | Pb(Lead) Free Plating Conversion |
|
07/01/2003 |
