Schottky Barrier Rectifiers | Status :
Obsoleted
SS110
Last Time Ship Date:05/16/2026
EOL Notice

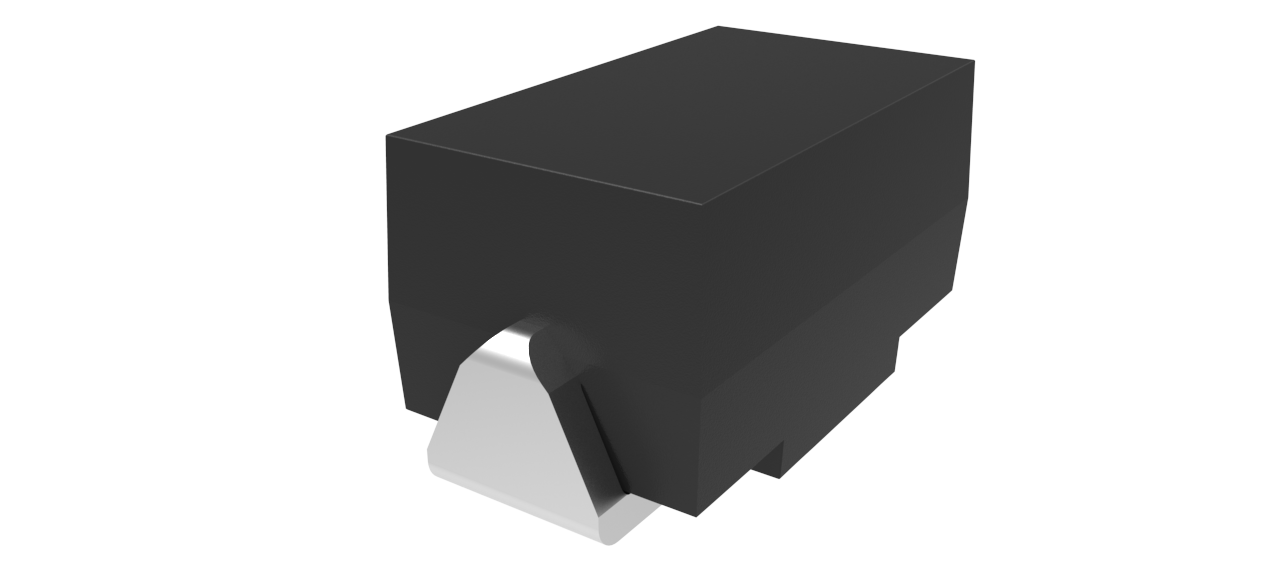

- Package Type:HSMA
- Packing Info:Tape: 3K/Reel, 48K/Ctn;
- Category:Schottky Barrier Rectifiers
- MPN:SS110-TP
Product Detail
| Part Number | Number of Functions | IF(AV)(A) | VRWM (V) | VF (V) [max]@IF(A) |
IR (uA) [max] @ VR |
IFSM (A) | VR (V) | IF(A) | Tj [max] (°C) |
|---|---|---|---|---|---|---|---|---|---|
| SS110 | Single | 1 | 100 | 0.85 | 500 | 30 | 100 | 1 |
| Part Number SS110 | Number of Functions Single | IF(AV)(A) 1 | VRWM (V) 100 |
VF (V) [max]@IF(A) 0.85 |
IR (uA) [max] @ VR 500 |
IFSM (A) 30 | VR (V) 100 | IF(A) 1 |
Tj [max] (°C) |
Packing Information
Environmental Information
Download
| MSL | MTBF | FIT |
|---|---|---|
| 1 | 6729.17 | 17.0 |
ECN/PCN
| ECN/PCN No# | Title | Issued Date | |
|---|---|---|---|
| 060821-1 | MCC Will Change The Lead Frame of SMAE/HSMA/HSMB Package Products. |
|
06/08/2021 |
| 070103 | Pb(Lead) Free Plating Conversion |
|
07/01/2003 |
