Schottky Barrier Rectifiers | Status : Obsoleted

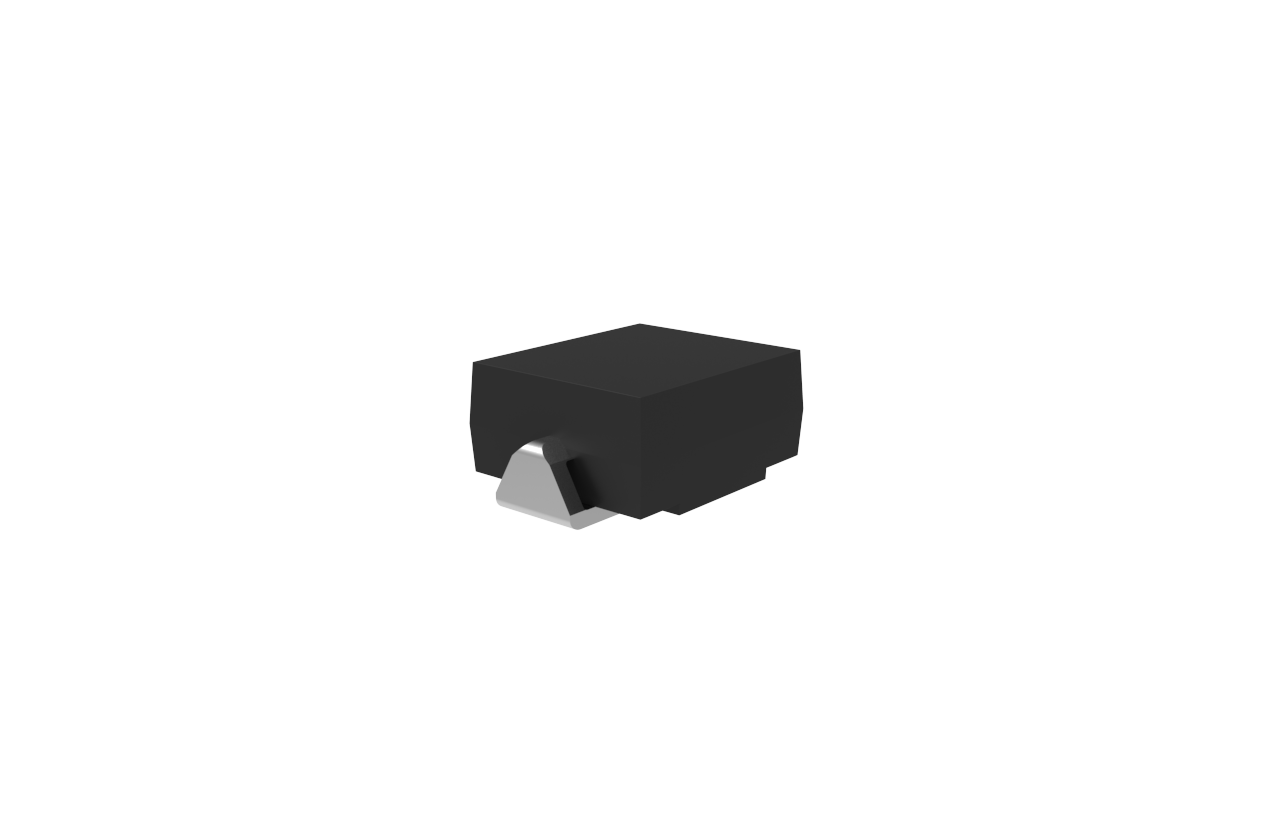

SK54

Last Time Ship Date:1-1-2009 EOL Notice
Check Stock Add To Cart
Datasheet ECAD Model Reliability Data

Product Detail

Part Number Number of Functions IF(AV)(A) VRWM (V) VF
(V) [max]@IF(A)		 IR (uA)  [max] @
VR		 IFSM (A) VR (V) IF(A) Tj [max]
(°C)
SK54 Single 5 40 0.55 1000 150 40 5
Part Number SK54 Number of Functions Single IF(AV)(A)  5 VRWM (V)  40 VF
(V) [max]@IF(A)  0.55 		IR (uA)  [max] @
VR  1000 		IFSM (A)  150 VR (V)  40 IF(A)  5 Tj [max]
(°C)

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code Packing Info
SK54 HSMC HSMC 0.6030 SK54 Tape : 1.5K/Reel ,21K/Ctn;

Environmental Information link icon

Reliability Report Material Composition Data Sheet Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Configuration image Download Environmental Compliance Download
MTBF FIT
27479.27 4.2

ECN/PCN

ECN/PCN No# Title PDF Issued Date
070103 Pb(Lead) Free Plating Conversion PDF 07/01/2003
