Schottky Barrier Rectifiers | Status : P/N Change

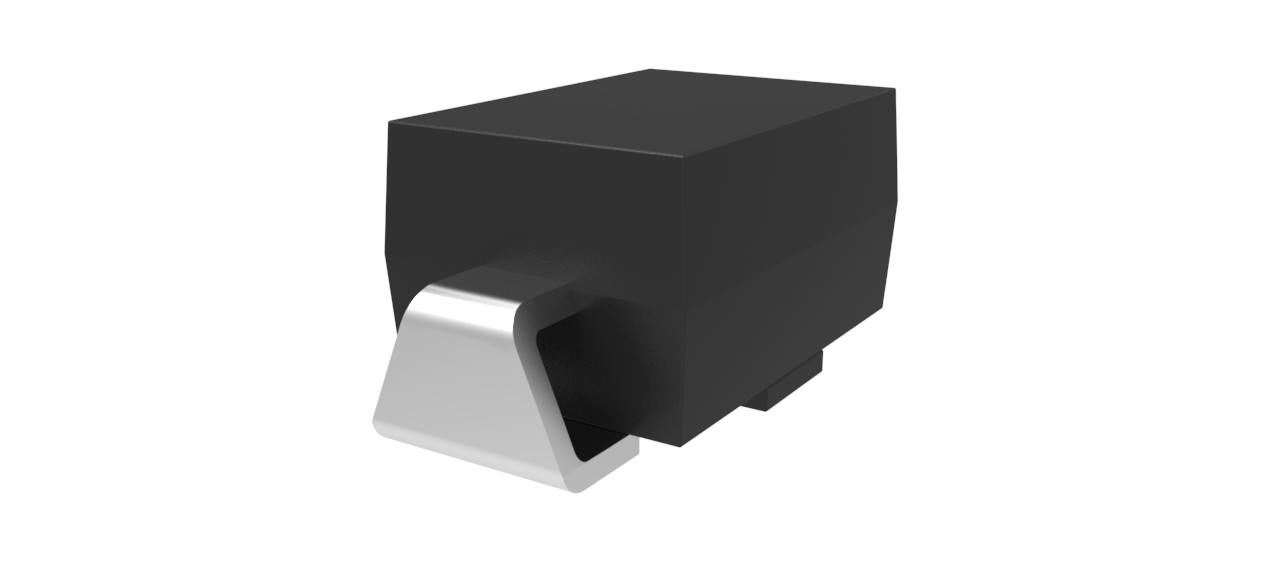

SK24

Check Stock Add To Cart
Datasheet ECAD Model Reliability Data

Product Detail

Part Number Number of Functions IF(AV)(A) VRWM (V) VF
(V) [max]@IF(A)		 IR (uA)  [max] @
VR		 IFSM (A) VR (V) IF(A) Tj [max]
(°C)
SK24 Single 2 40 0.5 500 50 40 2
Part Number SK24 Number of Functions Single IF(AV)(A)  2 VRWM (V)  40 VF
(V) [max]@IF(A)  0.5 		IR (uA)  [max] @
VR  500 		IFSM (A)  50 VR (V)  40 IF(A)  2 Tj [max]
(°C)

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code Packing Info
SK24 HSMB HSMB 0.1270 SK24 Tape : 3K/Reel, 48K/Ctn;

Environmental Information link icon

Reliability Report Material Composition Data Sheet Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Configuration image Download Environmental Compliance Download
MSL MTBF FIT
1 8224.54 13.9

ECN/PCN

ECN/PCN No# Title PDF Issued Date
060821-1 MCC Will Change The Lead Frame of SMAE/HSMA/HSMB Package Products. PDF 06/08/2021
070103 Pb(Lead) Free Plating Conversion PDF 07/01/2003
