Schottky Barrier Rectifiers | Status :
Obsoleted
SK103
Last Time Ship Date:12-8-2021
EOL Notice

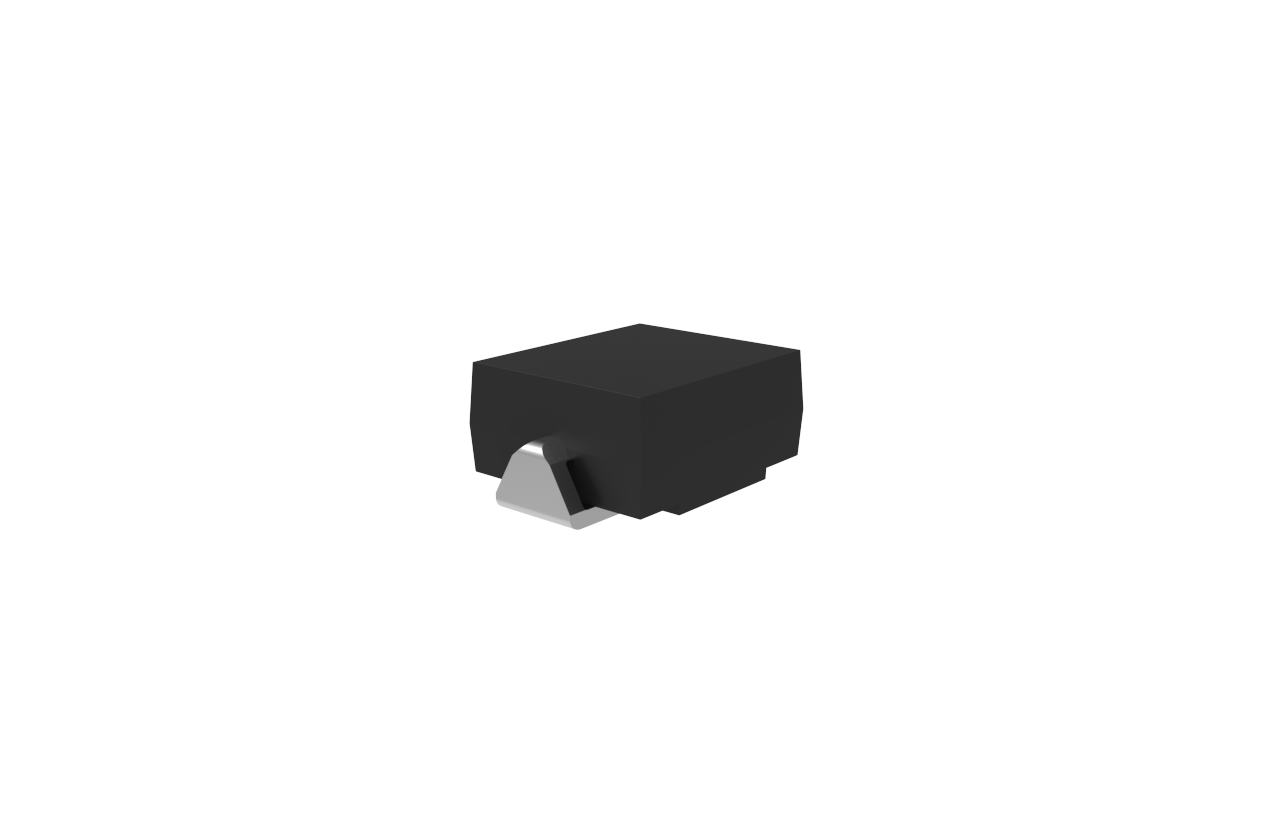

- Package Type:HSMC
- Packing Info:Tape : 1.5K/Reel, 21K/Ctn;
- Category:Schottky Barrier Rectifiers
Product Detail
| Part Number | Number of Functions | IF(AV)(A) | VRWM (V) | VF (V) [max]@IF(A) |
IR (uA) [max] @ VR |
IFSM (A) | VR (V) | IF(A) | Tj [max] (°C) |
|---|---|---|---|---|---|---|---|---|---|
| SK103 | Single | 10 | 30 | 0.65 | 1000 | 250 | 30 | 10 |
| Part Number SK103 | Number of Functions Single | IF(AV)(A) 10 | VRWM (V) 30 |
VF (V) [max]@IF(A) 0.65 |
IR (uA) [max] @ VR 1000 |
IFSM (A) 250 | VR (V) 30 | IF(A) 10 |
Tj [max] (°C) |
Packing Information
Environmental Information
Download
| MTBF | FIT |
|---|---|
| 27479.27 | 4.2 |
ECN/PCN
| ECN/PCN No# | Title | Issued Date | |
|---|---|---|---|
| 070103 | Pb(Lead) Free Plating Conversion |
|
07/01/2003 |
