Schottky Barrier Rectifiers | Status : Active

MBR60200CT

Check Stock Add To Cart
Datasheet ECAD Model Reliability Data

Product Detail

Part Number Number of Functions IF(AV)(A) VRWM (V) VF
(V) [max]@IF(A)		 IR (uA)  [max] @
VR		 IFSM (A) VR (V) IF(A) Tj [max]
(°C)
MBR60200CT Dual 60 200 0.9 20 450 200 30 150
Part Number MBR60200CT Number of Functions Dual IF(AV)(A)  60 VRWM (V)  200 VF
(V) [max]@IF(A)  0.9 		IR (uA)  [max] @
VR  20 		IFSM (A)  450 VR (V)  200 IF(A)  30 Tj [max]
(°C)  150

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code

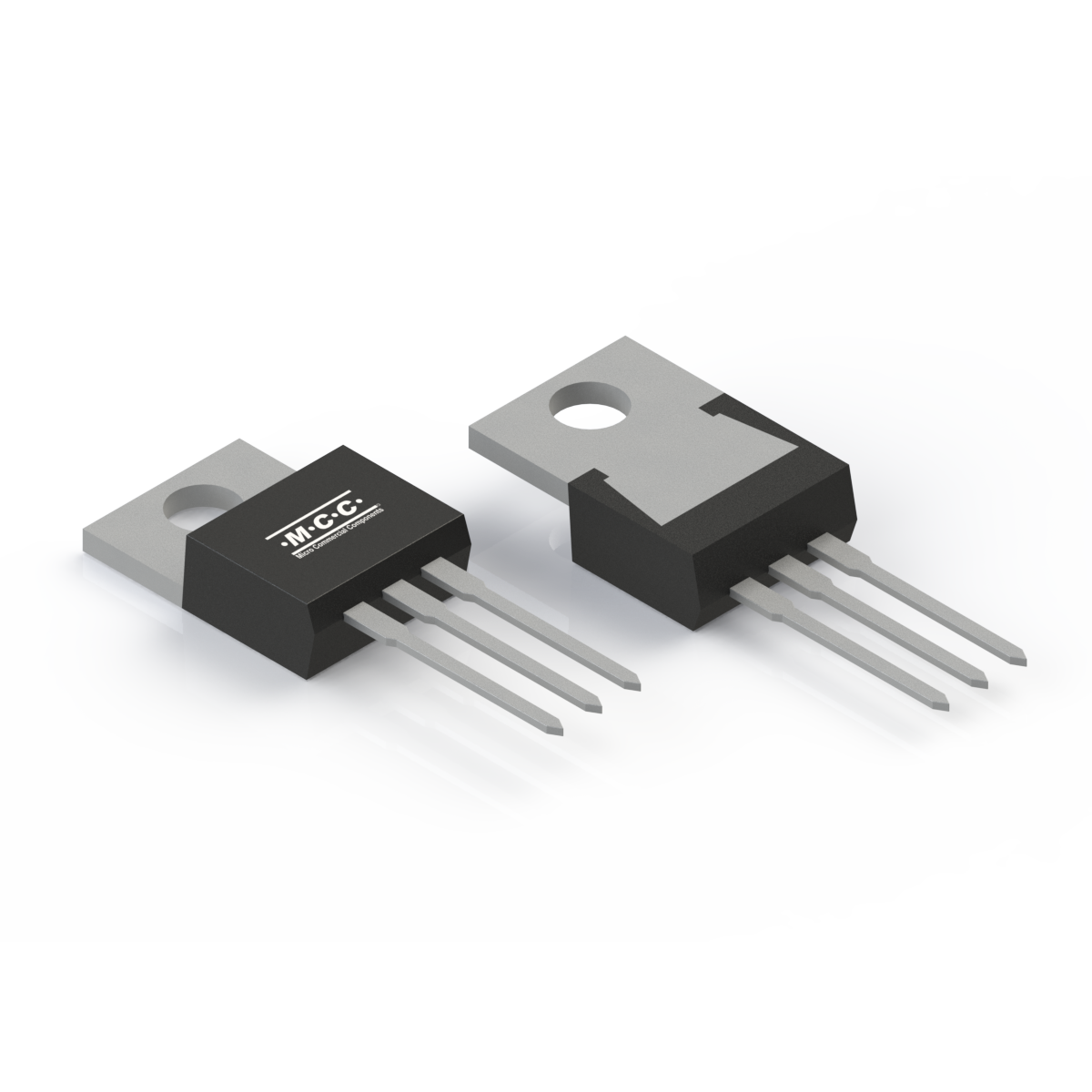

MBR60200CT TO-220AB TO-220AB 1.9332 MBR60200CT

Environmental Information link icon

Reliability Report Material Composition Data Sheet Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Configuration image Download Environmental Compliance Download
MSL MTBF FIT
N/A 14988.69 7.6
