Schottky Barrier Rectifiers | Status :
Obsoleted

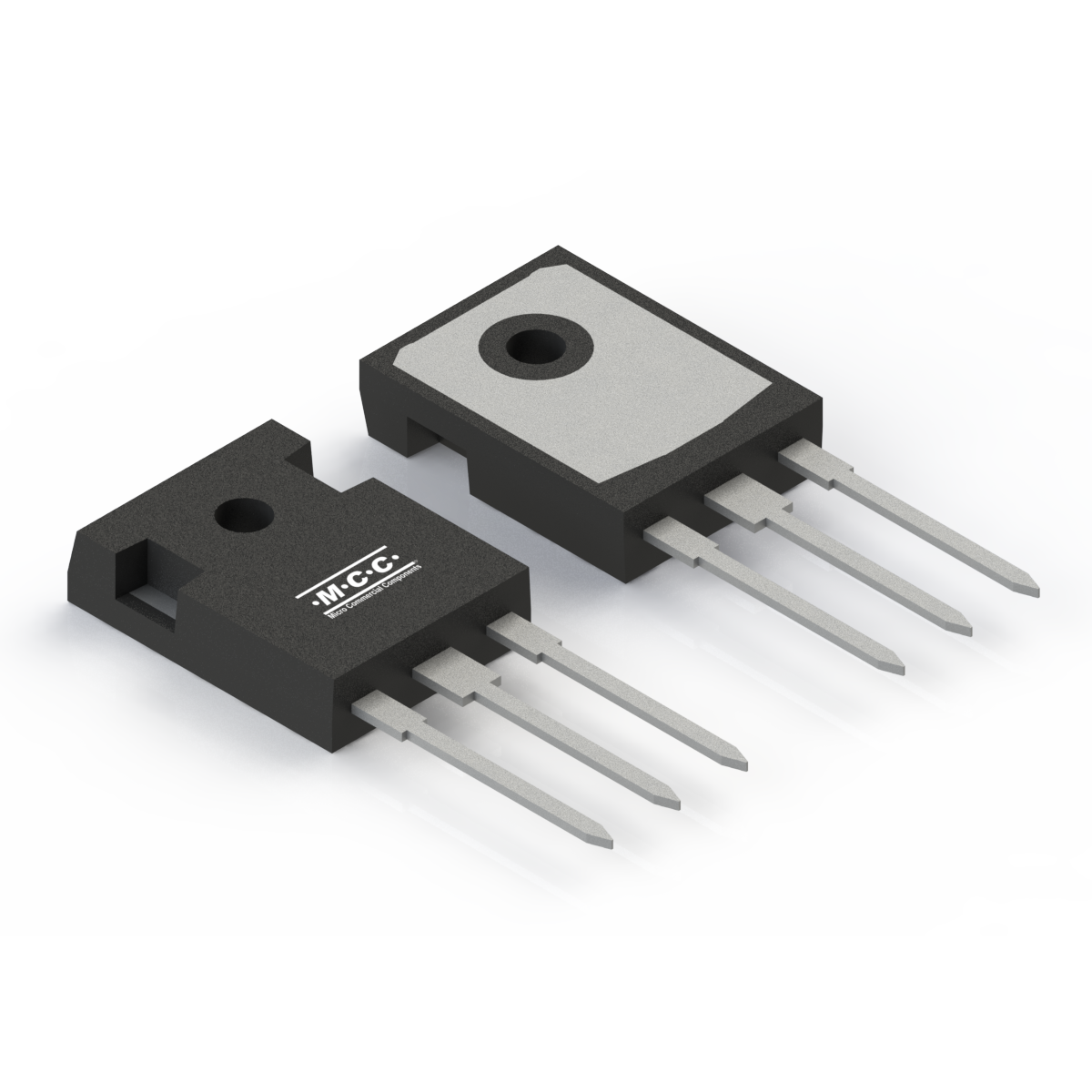

MBR3045PT
Last Time Ship Date:03-01-2024
EOL Notice
- Package Type:TO-247
- Packing Info:Bulk : 360pcs/Box, 1.8K/Ctn;
- Category:Schottky Barrier Rectifiers
Product Detail
| Part Number | Number of Functions | IF(AV)(A) | VRWM (V) | VF (V) [max]@IF(A) |
IR (uA) [max] @ VR |
IFSM (A) | VR (V) | IF(A) | Tj [max] (°C) |
|---|---|---|---|---|---|---|---|---|---|
| MBR3045PT | Dual | 30 | 45 | 0.55 | 100 | 275 | 45 | 15 |
| Part Number MBR3045PT | Number of Functions Dual | IF(AV)(A) 30 | VRWM (V) 45 |
VF (V) [max]@IF(A) 0.55 |
IR (uA) [max] @ VR 100 |
IFSM (A) 275 | VR (V) 45 | IF(A) 15 |
Tj [max] (°C) |
Packing Information
Environmental Information
Download
| Tin Whisker Test Report | MTBF | FIT |
|---|---|---|
|
12490.58 | 9.1 |
ECN/PCN
| ECN/PCN No# | Title | Issued Date | |
|---|---|---|---|
| 070103 | Pb(Lead) Free Plating Conversion |
|
07/01/2003 |
