Schottky Barrier Rectifiers | Status :
Obsoleted

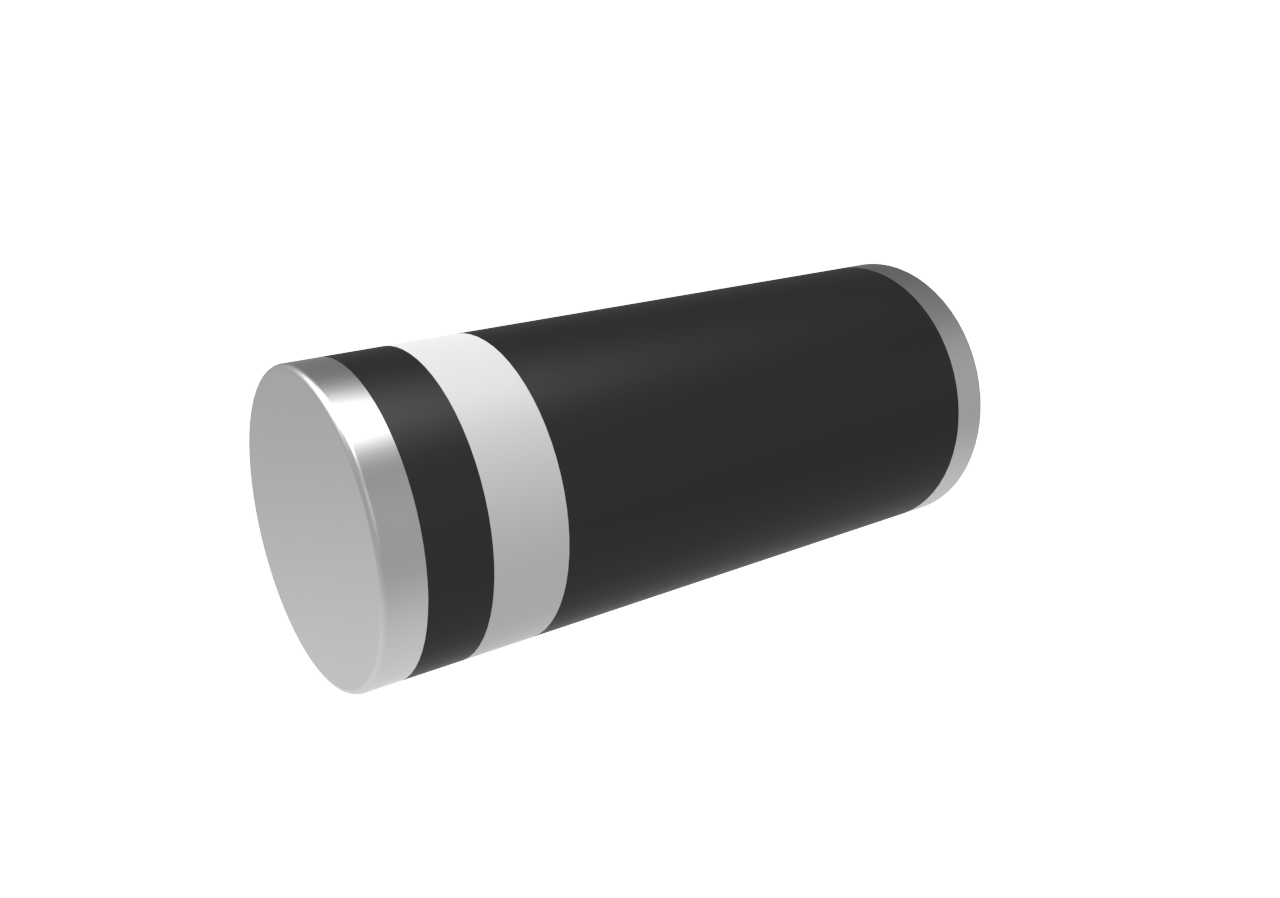

DL5817
Last Time Ship Date:10-01-2012
EOL Notice
- Package Type:MELF
- Packing Info:Tape : 5K/Reel, 80K/Ctn;
- Category:Schottky Barrier Rectifiers
Product Detail
| Part Number | Number of Functions | IF(AV)(A) | VRWM (V) | VF (V) [max]@IF(A) |
IR (uA) [max] @ VR |
IFSM (A) | VR (V) | IF(A) | Tj [max] (°C) |
|---|---|---|---|---|---|---|---|---|---|
| DL5817 | Single | 1 | 20 | 0.45 | 1000 | 25 | 20 | 1 |
| Part Number DL5817 | Number of Functions Single | IF(AV)(A) 1 | VRWM (V) 20 |
VF (V) [max]@IF(A) 0.45 |
IR (uA) [max] @ VR 1000 |
IFSM (A) 25 | VR (V) 20 | IF(A) 1 |
Tj [max] (°C) |
Packing Information
| Part Number | Package Type | Packing Specification | Component Weight (g) | Packing Info |
|---|---|---|---|---|
| DL5817 | MELF |
MELF
|
0.1250 | Tape : 5K/Reel, 80K/Ctn; |
Environmental Information
Download
| MTBF | FIT |
|---|---|
| 27479.27 | 4.2 |
ECN/PCN
| ECN/PCN No# | Title | Issued Date | |
|---|---|---|---|
| 070103 | Pb(Lead) Free Plating Conversion |
|
07/01/2003 |
