Schottky Barrier Rectifiers | Status :
Obsoleted
DL5711
Last Time Ship Date:N/A
EOL Notice

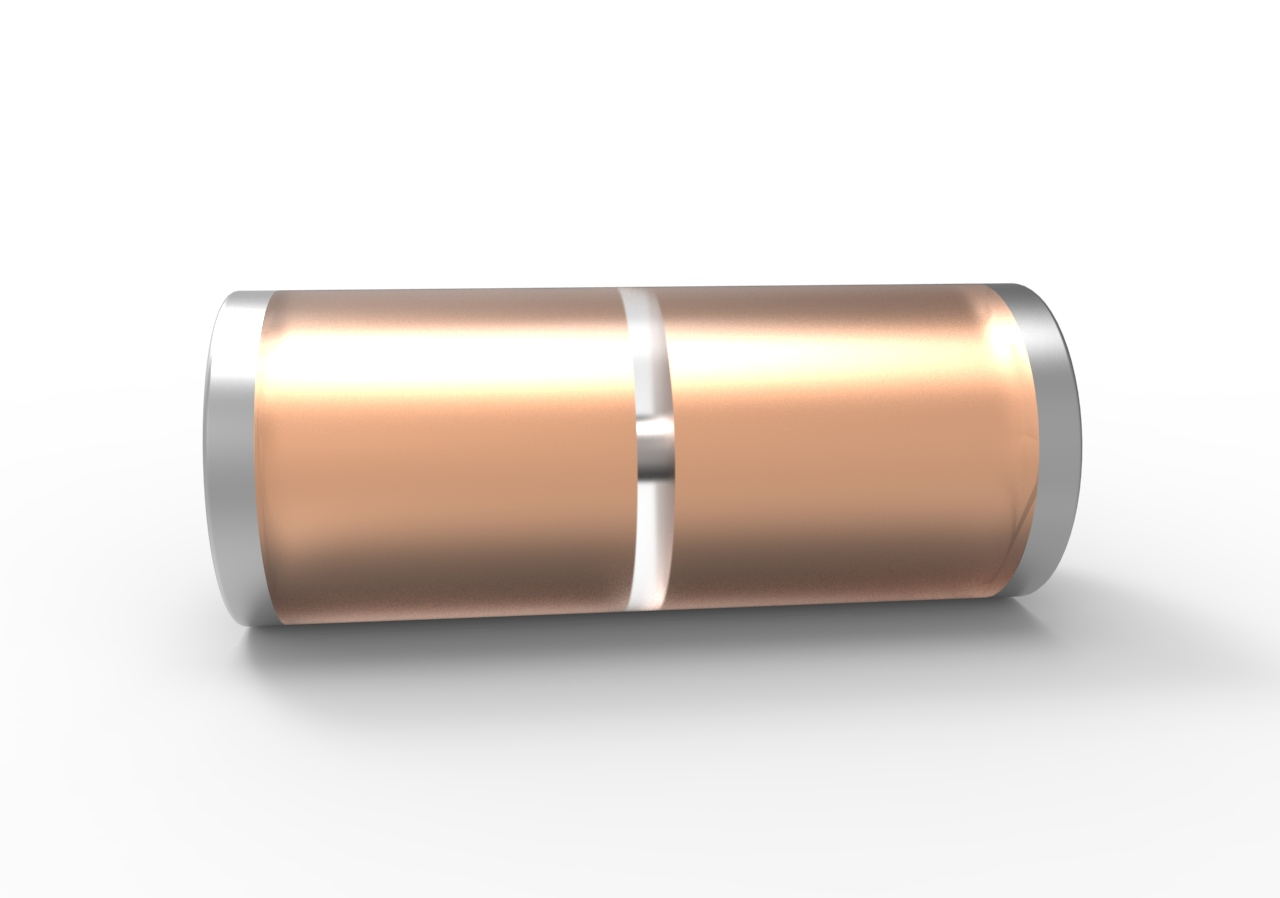

- Package Type:MINIMELF
- Packing Info:Tape : 2.5K/Reel , 100K/Ctn;
- Category:Schottky Barrier Rectifiers
Product Detail
| Part Number | Number of Functions | IF(AV)(A) | VRWM (V) | VF (V) [max]@IF(A) |
IR (uA) [max] @ VR |
IFSM (A) | VR (V) | IF(A) | Tj [max] (°C) |
|---|---|---|---|---|---|---|---|---|---|
| DL5711 | Single | 0.015 | 70 | 1 | 0.2 | 2 | 50 | 0.015 |
| Part Number DL5711 | Number of Functions Single | IF(AV)(A) 0.015 | VRWM (V) 70 |
VF (V) [max]@IF(A) 1 |
IR (uA) [max] @ VR 0.2 |
IFSM (A) 2 | VR (V) 50 | IF(A) 0.015 |
Tj [max] (°C) |
Packing Information
| Part Number | Package Type | Packing Specification | Component Weight (g) | Packing Info |
|---|---|---|---|---|
| DL5711 | MINIMELF |
MINIMELF
|
0.0300 | Tape : 2.5K/Reel , 100K/Ctn; |
Environmental Information
Download
| MTBF | FIT |
|---|---|
| 27479.27 | 4.2 |
ECN/PCN
| ECN/PCN No# | Title | Issued Date | |
|---|---|---|---|
| 070103 | Pb(Lead) Free Plating Conversion |
|
07/01/2003 |
