Fast Recovery Rectifiers | Status : Obsoleted

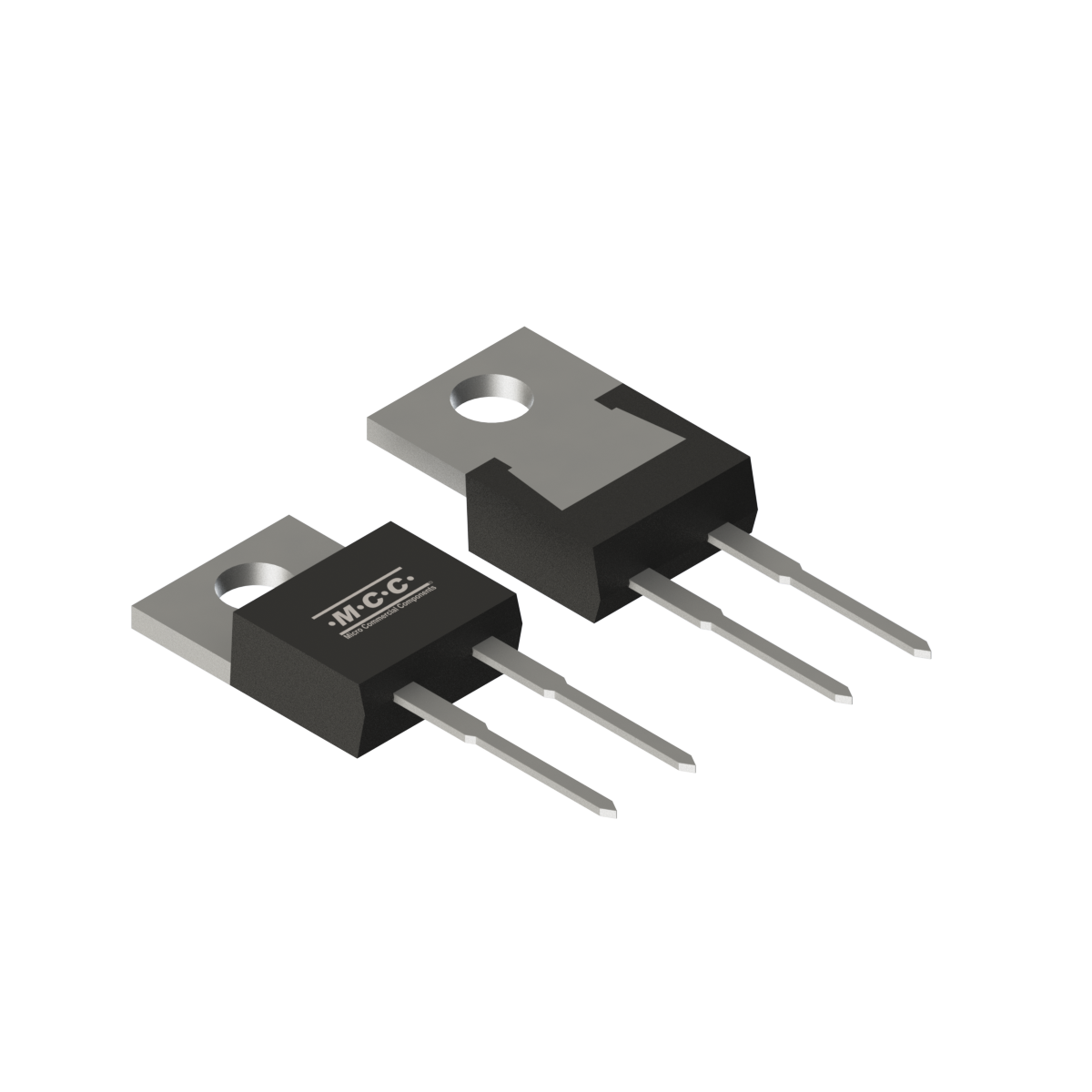

FR2504

Last Time Ship Date:08-01-2019 EOL Notice
Check Stock Add To Cart
Datasheet ECAD Model Reliability Data

Product Detail

Part Number Number of Functions IF(AV)(A) VRWM (V) VF
(V) [max]@IF(A)		 IR (uA)  [max] @
VR		 TRR (μs) IFSM (A) IF(A) VR (V) Tj [max]
(°C)
FR2504 Single 25 400 1.3 10 0.25 280 25 400
Part Number FR2504 Number of Functions Single IF(AV)(A)  25 VRWM (V)  400 VF
(V) [max]@IF(A)  1.3 		IR (uA)  [max] @
VR  10 		TRR (μs)  0.25 IFSM (A)  280 IF(A)  25 VR (V)  400 Tj [max]
(°C)

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code
FR2504 TO-220AC TO-220AC 2.2400 FR2504

Environmental Information link icon

Reliability Report Material Composition Data Sheet Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Configuration image Download Environmental Compliance Download
Tin Whisker Test Report MTBF FIT
Tin Whisker Test Report 27479.27 4.2

ECN/PCN

ECN/PCN No# Title PDF Issued Date
070103 Pb(Lead) Free Plating Conversion PDF 07/01/2003
