Fast Recovery Rectifiers | Status : Active

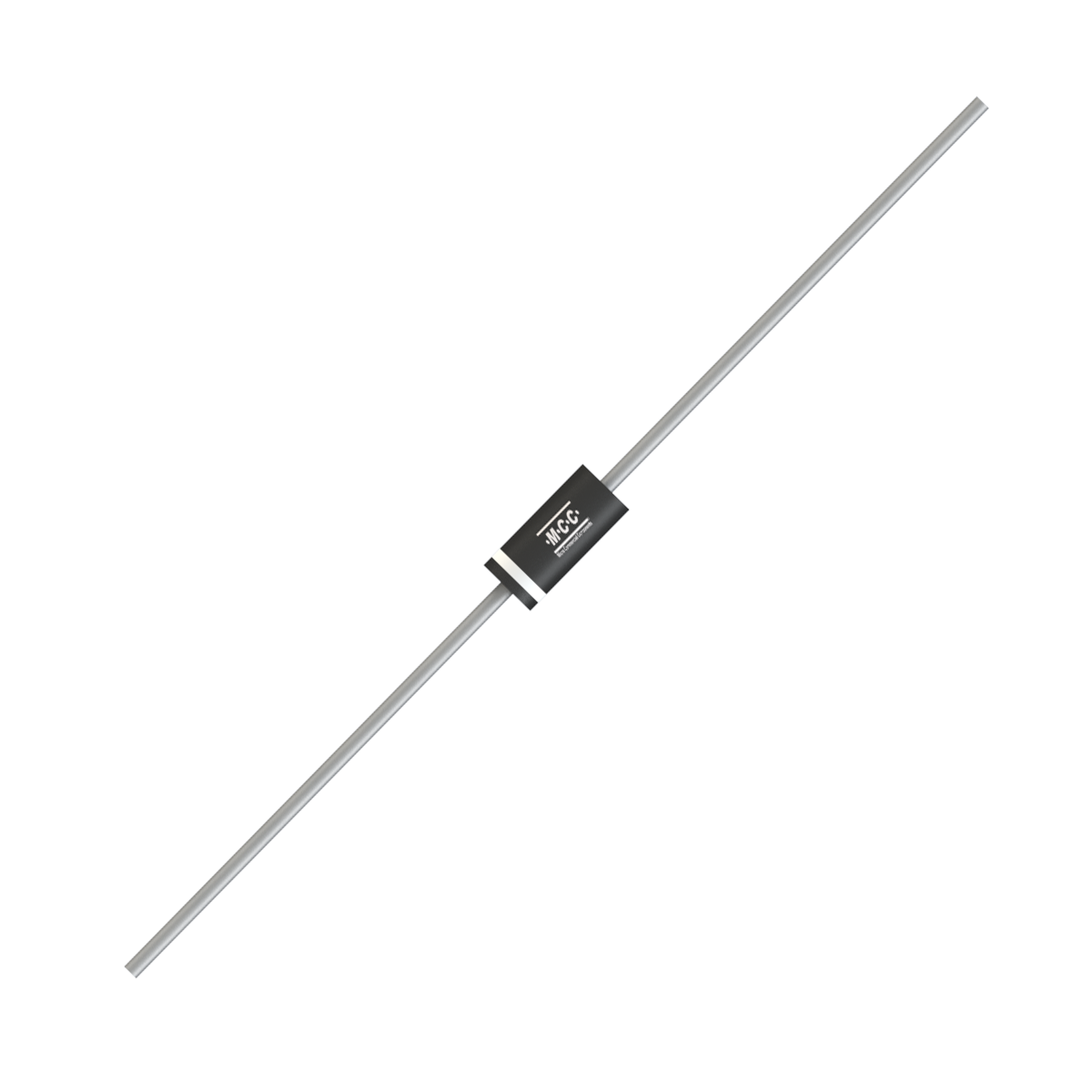

FR206GP

  • Package Type:DO-15
  • Packing Info: Tape : 4K/Reel, 16K/Ctn; Bulk: 500pcs/Box, 25K/Ctn;
  • Category:Fast Recovery Rectifiers
Check Stock Add To Cart
Datasheet ECAD Model

Product Detail

Part Number Number of Functions IF(AV)(A) VRWM (V) VF
(V) [max]@IF(A)		 IR (uA)  [max] @
VR		 TRR (μs) IFSM (A) IF(A) VR (V) Tj [max]
(°C)
FR206GP Single 2.0 800 1.3 5.0 0.5 60 2 800 150
Part Number FR206GP Number of Functions Single IF(AV)(A)  2.0 VRWM (V)  800 VF
(V) [max]@IF(A)  1.3 		IR (uA)  [max] @
VR  5.0 		TRR (μs)  0.5 IFSM (A)  60 IF(A)  2 VR (V)  800 Tj [max]
(°C)  150

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code Packing Info
FR206GP DO-15 DO-15 0.3880 FR206GP Tape : 4K/Reel, 16K/Ctn;

Environmental Information link icon

Reliability Report Material Composition Data Sheet Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Configuration image Download Environmental Compliance Download
Tin Whisker Test Report MSL
Tin Whisker Test Report N/A

ECN/PCN

ECN/PCN No# Title PDF Issued Date
070103 Pb(Lead) Free Plating Conversion PDF 07/01/2003
