Bridge Rectifiers | Status :
Obsoleted

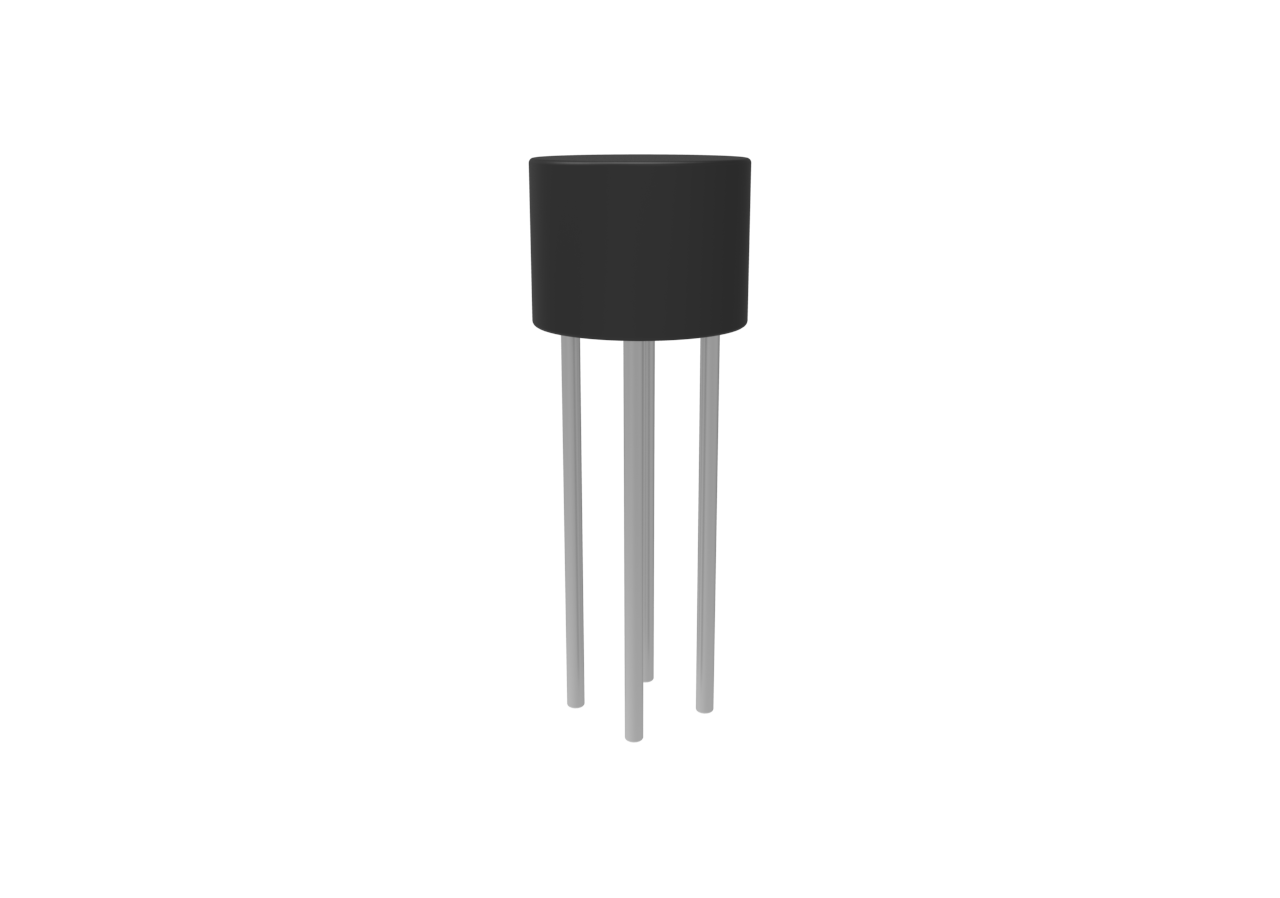

W10M
- Package Type:WOM
- Packing Info:Bulk: 1K/Box, 10K/Ctn .;
- Category:Bridge Rectifiers
Product Detail
| Part Number | Number of Functions | IF(AV)(A) | VRWM (V) | VF (V) [max]@IF(A) |
IR (uA) [max] @ VR |
IFSM (A) | IF(A) | VR (V) | Tj [max] (°C) |
|---|---|---|---|---|---|---|---|---|---|
| W10M | 1-Phase Bridge | 1.5 | 1000 | 1 | 10 | 50 | 1.5 | 1000 | 125 |
| Part Number W10M | Number of Functions 1-Phase Bridge | IF(AV)(A) 1.5 | VRWM (V) 1000 |
VF (V) [max]@IF(A) 1 |
IR (uA) [max] @ VR 10 |
IFSM (A) 50 | IF(A) 1.5 | VR (V) 1000 | Tj [max] (°C) 125 |
Packing Information
| Part Number | Package Type | Packing Specification | Component Weight (g) |
|---|---|---|---|
| W10M | WOM |
WOM
|
1.0850 |
Environmental Information
Download
| MTBF | FIT |
|---|---|
| 27479.27 | 4.2 |
ECN/PCN
| ECN/PCN No# | Title | Issued Date | |
|---|---|---|---|
| 021110 | Bridge Rectifiers Min/Mult Quantity Update |
|
03/01/2010 |
| 070103 | Pb(Lead) Free Plating Conversion |
|
07/01/2003 |
